ENWW 500-Sheet paper feeder internal parts 293
Separation pad removal - 500-sheet paper feeder
1 Remove Tray 3.
2 Push the lifting plate (1) down.
3 Unhook the two claws (2) and remove the separation pad (3).

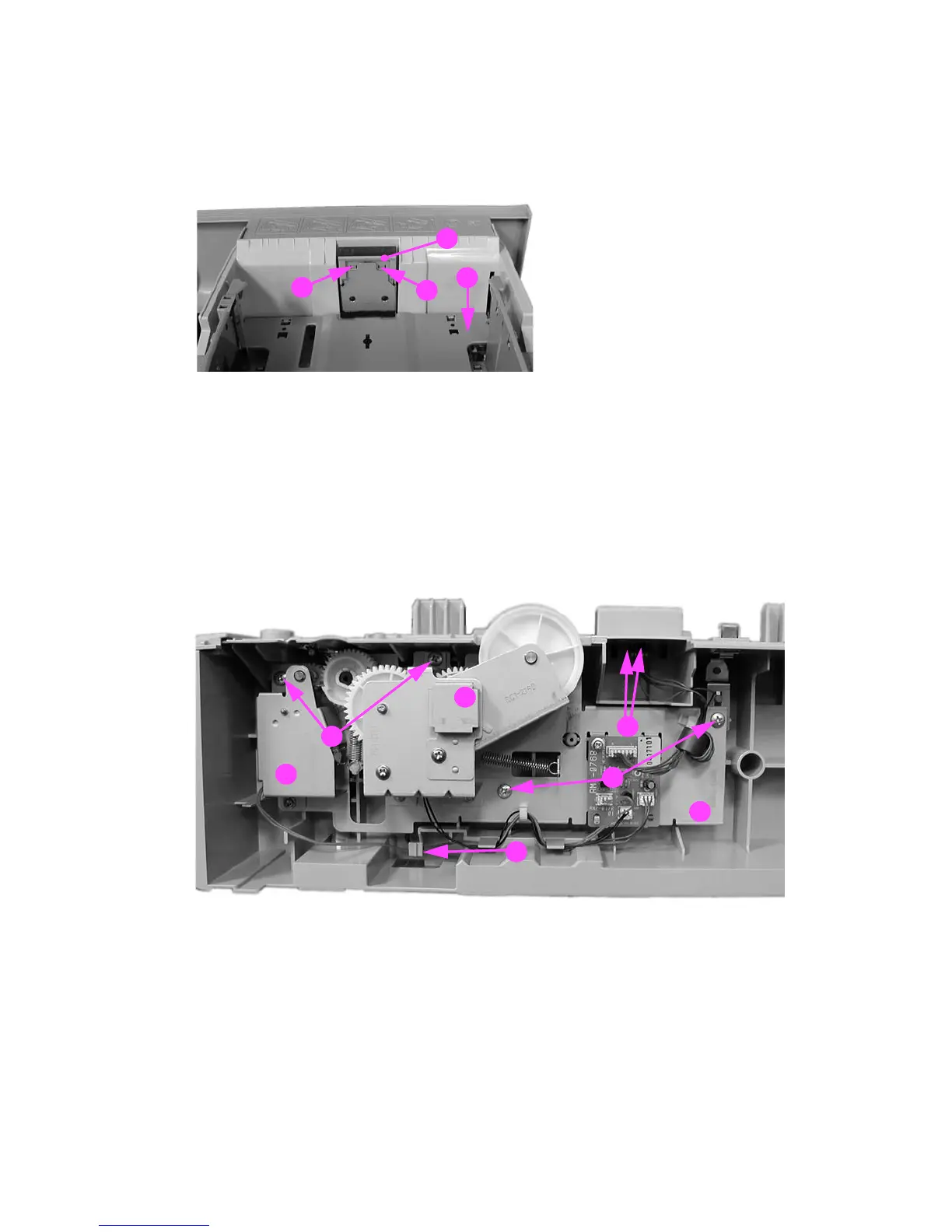

Figure 6-149 500-sheet paper feeder separation pad removal
Pick-up drive unit removal - 500-sheet paper feeder
1 Remove the right cover. See Right cover removal - 500-sheet paper feeder.
2 Disconnect two connectors (1).
3 Release the cables from the cable guide (2).
4 Remove four screws (3) and remove the pick-up drive unit (4).
Figure 6-150 500-Sheet paper feeder pick-up drive unit removal
1
2
2
3
2
1
3
3
4
4
4
