500-Sheet paper feeder sensor/solenoid/motor/PCB

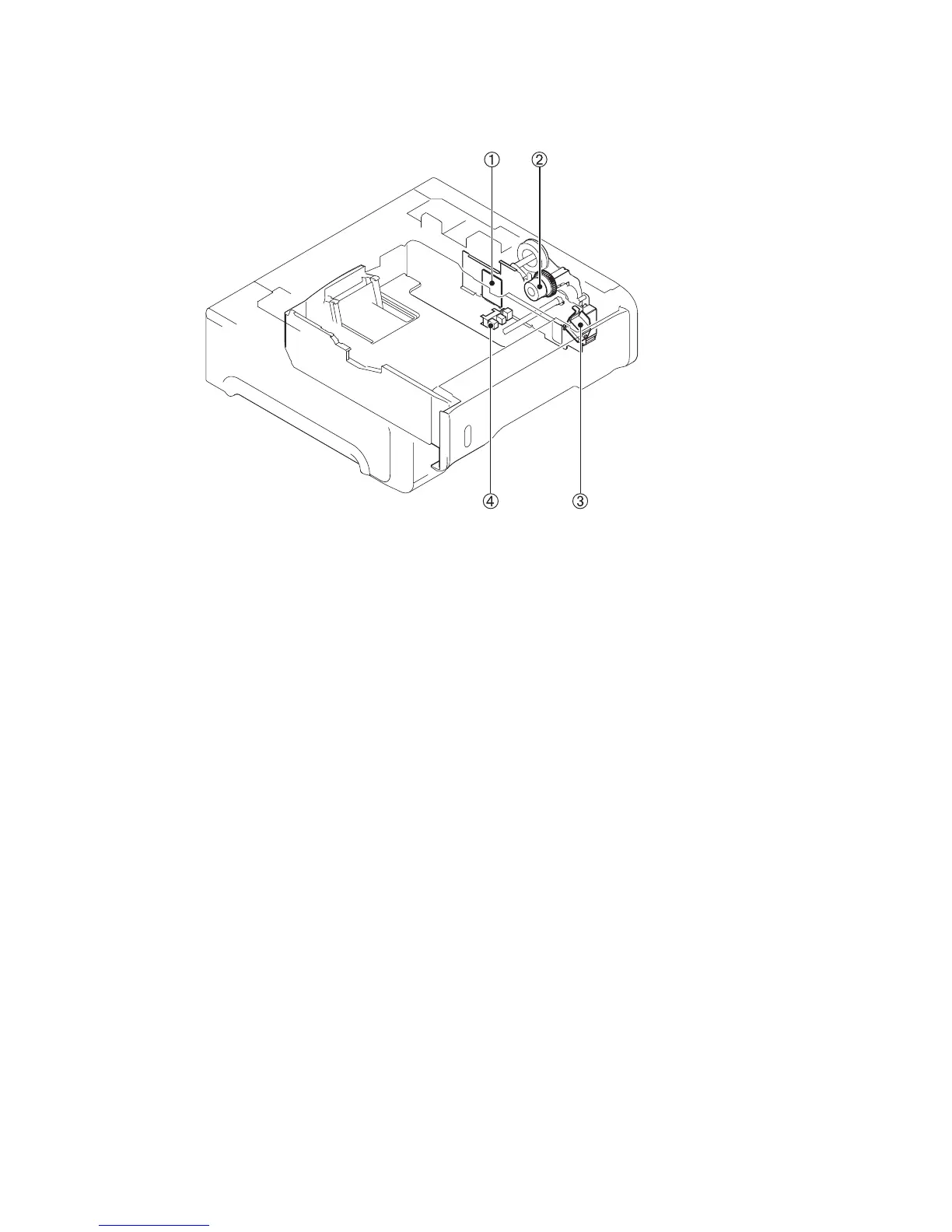

Figure 6-151 500-Sheet paper feeder sensor/solenoid/motor/PCB locations
1
2
3
4
500-Sheet paper feeder PCB
500-Sheet paper feeder pick-up clutch (CL4)
500-Sheet paper feeder pick-up solenoid (SL3)
500-Sheet paper sensor (PS3)
