ENWW 500-Sheet paper feeder sensor/solenoid/motor/PCB 295
500-Sheet paper feeder PCB removal - 500-sheet feeder
1 Remove the right cover. See Right cover removal - 500-sheet paper feeder.
2 Disconnect four connectors (1), remove one screw (2), and remove the 500-sheet feeder PCB
(3).

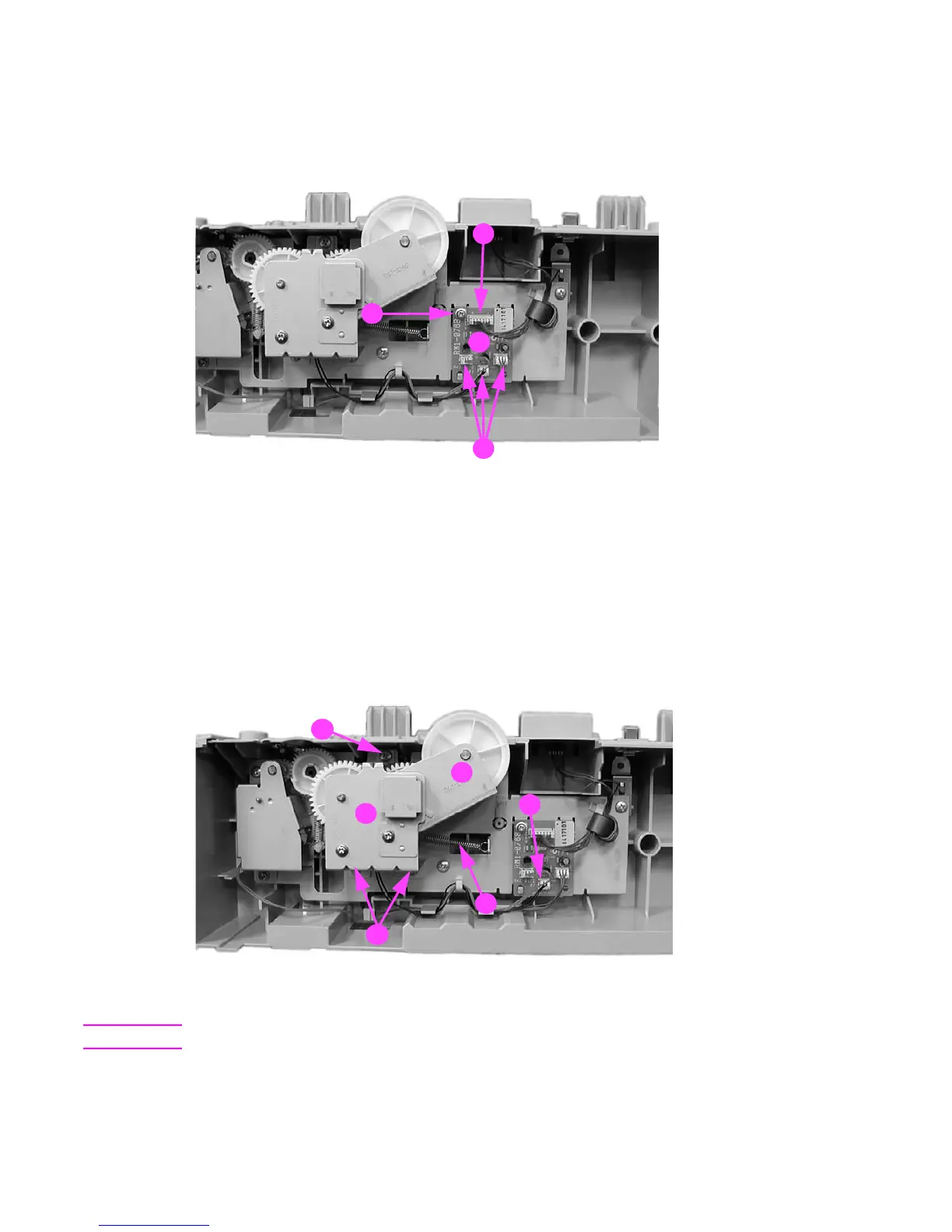

Figure 6-152 500-Sheet paper feeder PCB removal
Pick-up clutch (CL4) removal - 500-sheet feeder
1 Remove the right cover. See Right cover removal - 500-sheet paper feeder.
2 Disconnect one connector (1) and one spring (2).
3 Remove three screws (3) (look under the metal bracket for two of the three screws), and
remove the sheet metal bracket (4).
4 Remove the swing unit (5).
Figure 6-153 500-Sheet paper feeder pick-up clutch removal
Note The entire unit needs to be replaced for replacement of the pick-up clutch.
