296 Removal and replacement ENWW
Pick-up solenoid (SL3) removal - 500-sheet feeder
1 Remove Tray 3.
2 Remove the right cover. See Right cover removal - 500-sheet paper feeder.
3 Disconnect one connector (1), remove two screws (2), and remove the solenoid plate (3).

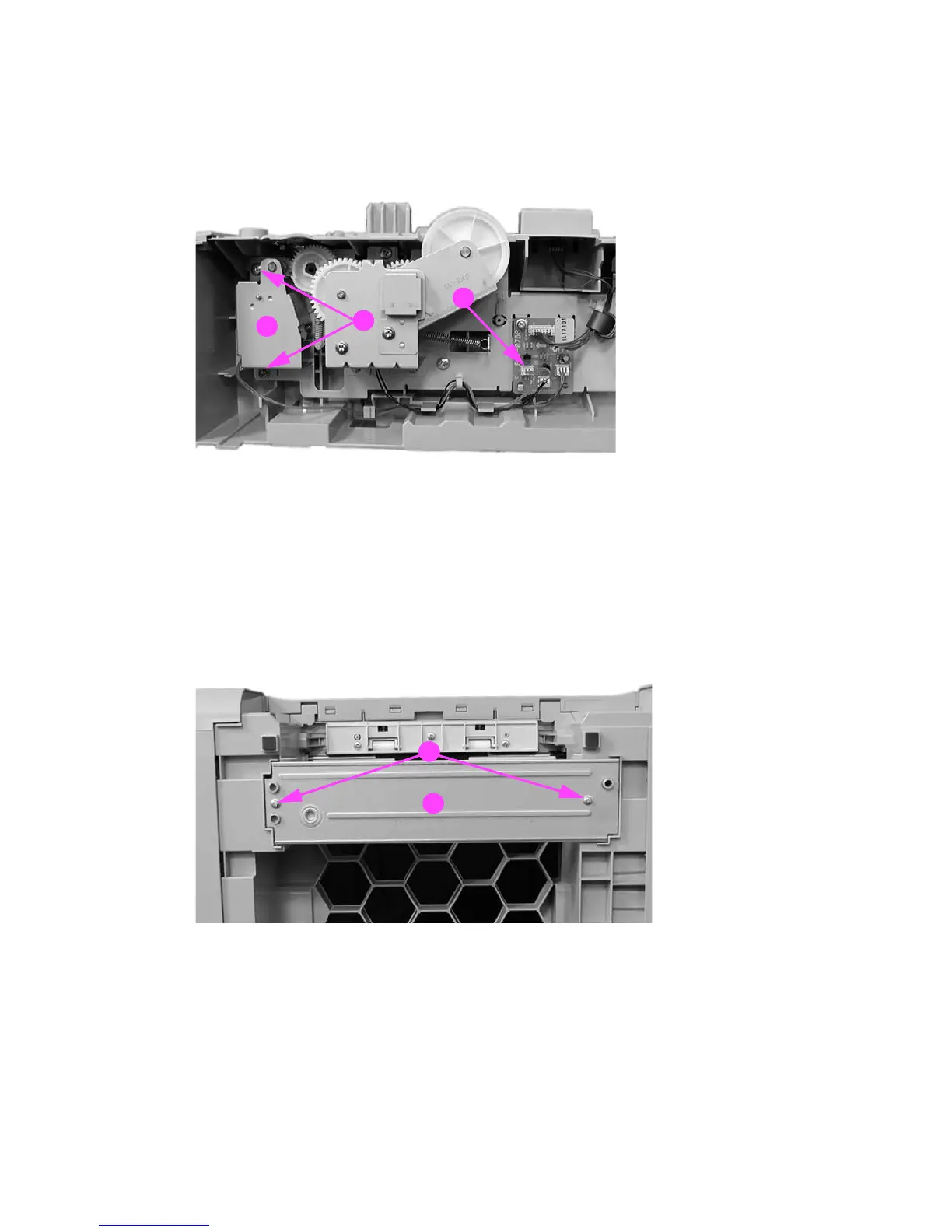

Figure 6-154 500-Sheet paper feeder pick-up solenoid removal
4 Remove the one screw to remove the pick-up solenoid from the plate.
Paper sensor (PS3) removal - 500-sheet feeder
1 Remove Tray 3.
2 Turn the 500-sheet paper feeder over.
3 Remove two screws (1) and remove the lower front frame (2).
.
Figure 6-155 500-Sheet paper feeder front frame removal (1 of 3)
1
2
3
2
1
