PDH / DSn Testing With The HP 37717C
Multiplexer Testing

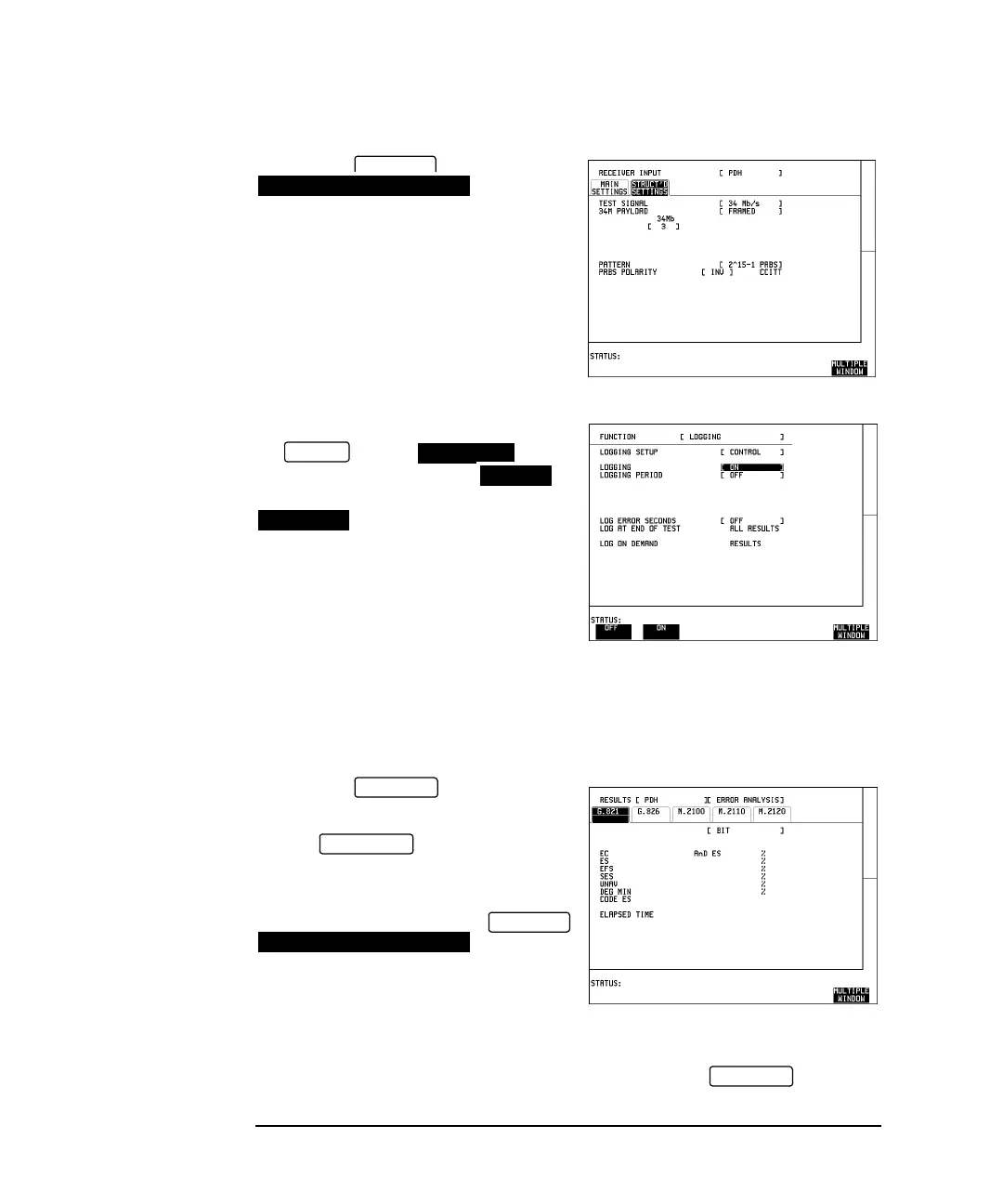

4. Set up the display
as shown
opposite.
The required 34 Mb/s test signal is
selected under 34Mb.
5. Select the logging output required with
the display,
function, LOGGING SETUP
then select LOGGING SETUP
and set up the display as
shown opposite.
Start the Multiplexer Test
1. Set up the display as shown
opposite.
2. Press to start the
measurement.
3. Repeat the test for the other three 34
Mb/s signals, selectable on the
display.
G.821 ANALYSIS is selected but any of
the other results can be selected from the
softkey menu without affecting the
measurement.
• The measurement results and alarms are available on the display
RECEIVE
STRUCTURED SETTINGS
OTHER
LOGGING
DEVICE
CONTROL
RESULTS
RUN/STOP
RECEIVE
STRUCTURED SETTINGS
RESULTS
To Next Page
