PDH / DSn Testing With The HP 37717C
Round Trip Delay

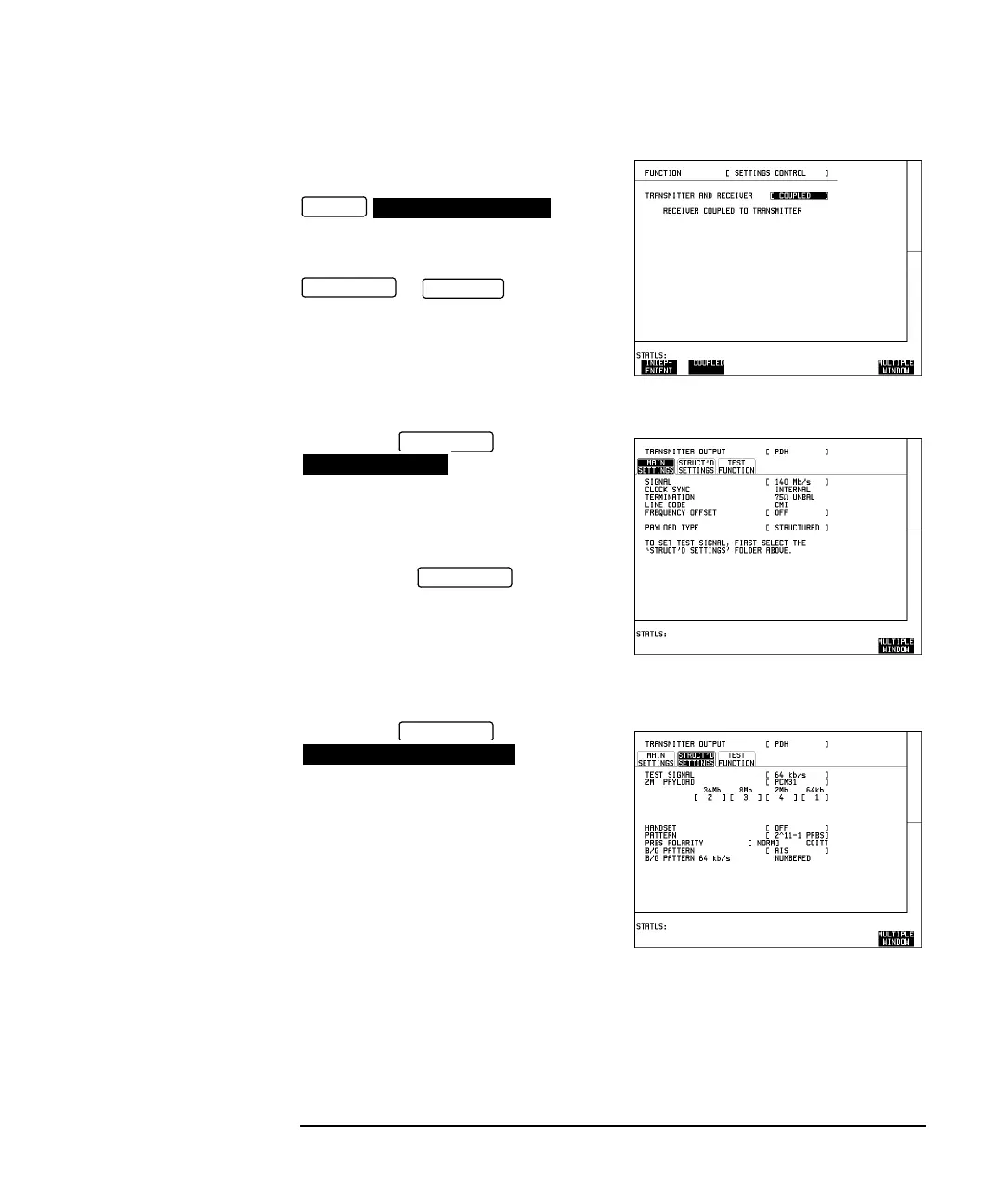

1. Connect the HP 37717C to the network
equipment as shown and set up the
display
as shown opposite.
Any settings change made on the
or displays will
automatically occur on the other.
2. Set up the display
as shown opposite.
The SIGNAL rate and LINE CODE
settings must match those of the network
equipment.
Ensure that the TEST
FUNCTION display is set for bit errors.
3. Set up the display
as shown
opposite.
The 2M PAYLOAD selection determines
the Framing which should match that of
the network equipment.
The test 64 kb/s slot is selected under
34Mb; 8Mb; 2Mb; 64kb.
Continuity Check
Before running the test carry out a continuity test to verify the measurement path.
OTHER
SETTINGS CONTROL
TRANSMIT
RECEIVE
TRANSMIT
MAIN SETTINGS
TRANSMIT
TRANSMIT
STRUCTURED SETTINGS
To Next Page
