HP 430 - Page 67

8.

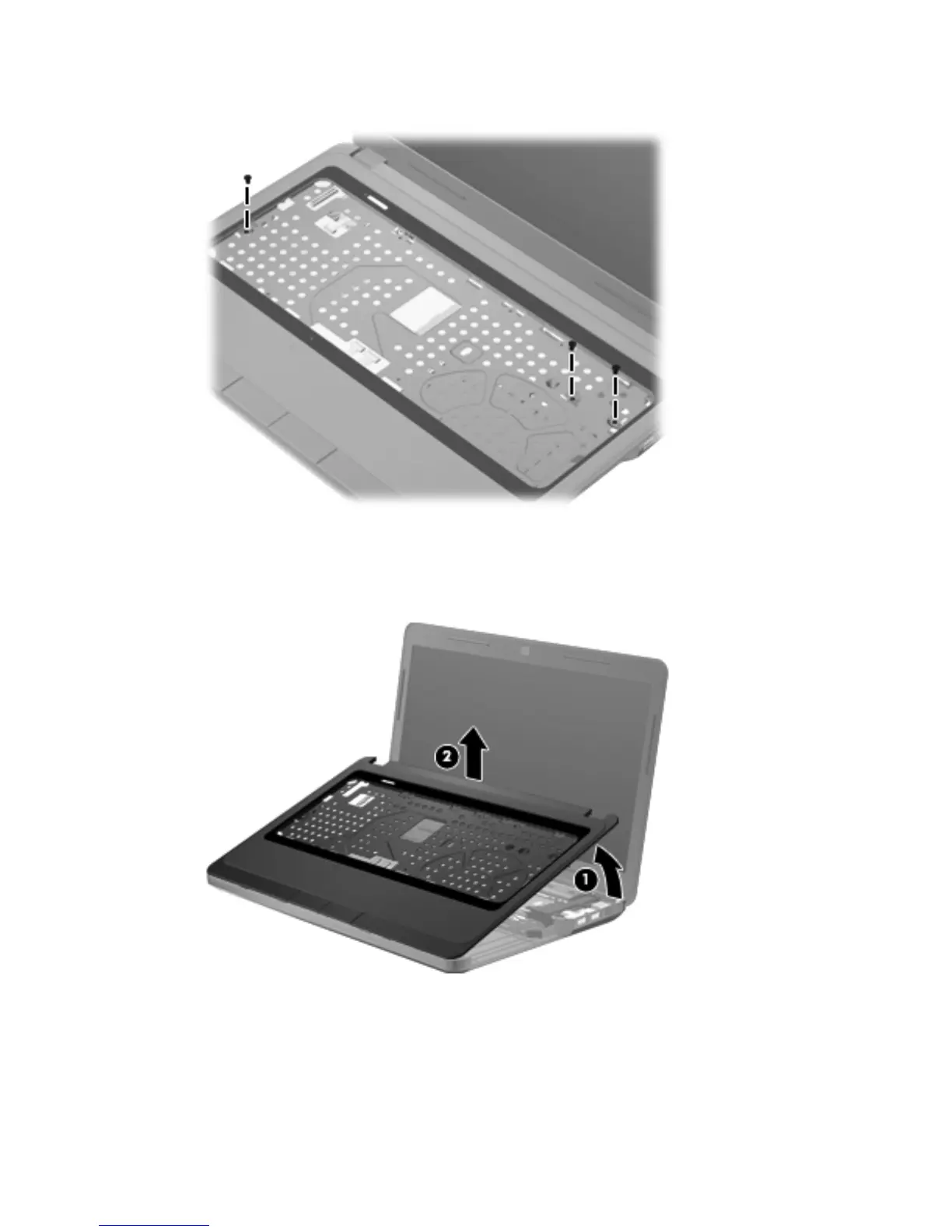

Remove the three Phillips PM2.5×6.0 screws that secure the top cover to the computer.
9. Lift the rear edge of the top cover (1) until the left and right sides disengage from
the base enclosure.
10.
Remove the top cover (2).
Reverse this procedure to install the top cover.
Component replacement procedures
59
