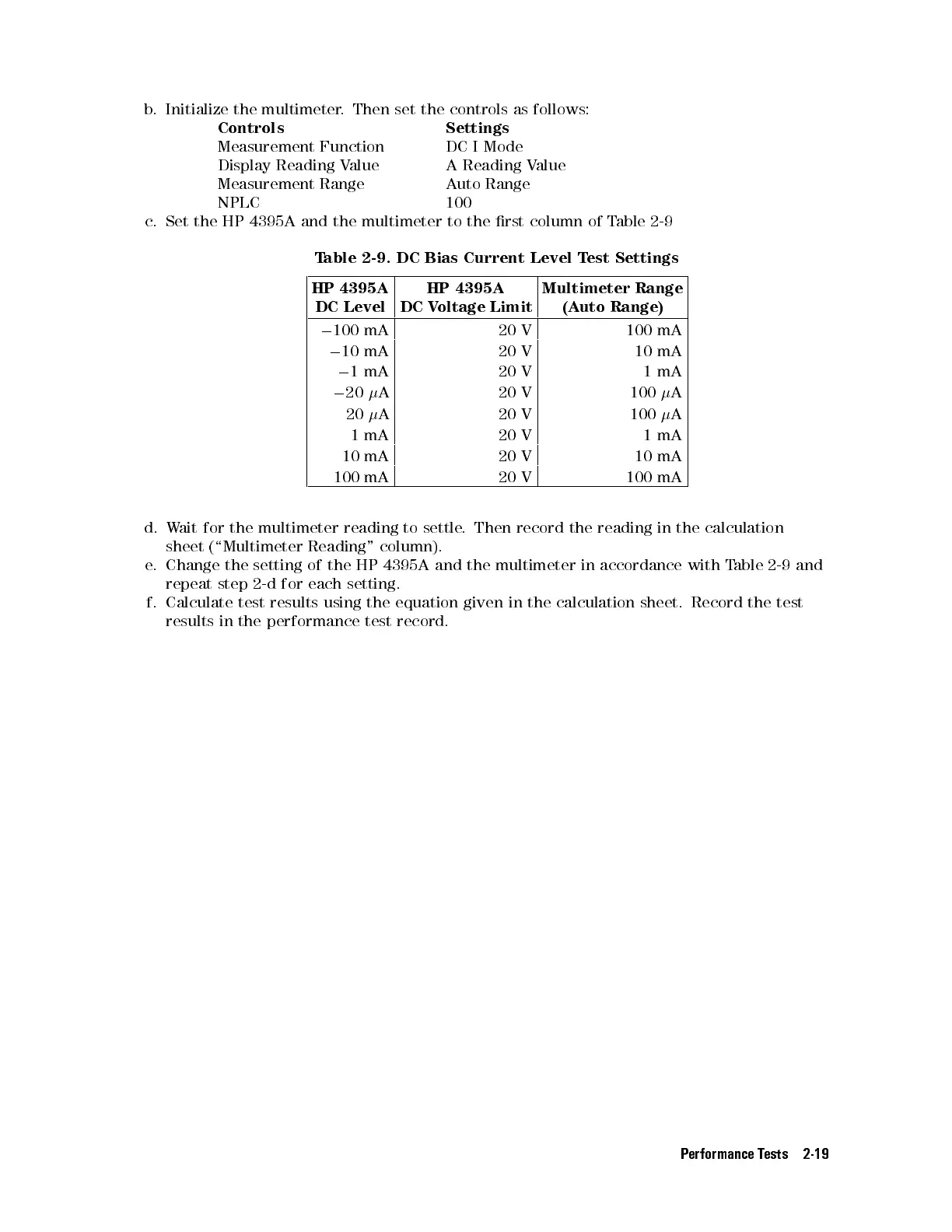

b. Initialize the multimeter. Then set the controls as follows:
Controls Settings
Measurement Function DC I Mode
Display Reading Value A Reading Value
Measurement Range Auto Range
NPLC 100
c. Set the HP 4395A and the multimeter to the rst column of Table 2-9
Table 2-9. DC Bias Current Level Test Settings
HP 4395A
DC Level
HP 4395A
DC Voltage Limit
Multimeter Range
(Auto Range)
0
100 mA 20 V 100 mA
0
10 mA 20 V 10 mA
0
1mA 20 V 1mA
0
20
A 20 V 100
A
20
A 20 V 100
A
1mA 20 V 1mA
10 mA 20 V 10 mA
100 mA 20 V 100 mA
d. Wait for the multimeter reading to settle. Then record the reading in the calculation
sheet (\Multimeter Reading" column).
e. Change the setting of the HP 4395A and the multimeter in accordance with T
able 2-9 and
repeat step 2-d for each setting.
f. Calculate test results using the equation given in the calculation sheet. Record the test
results in the performance test record.
Performance Tests 2-19
