Model ,5326/27A
General Information

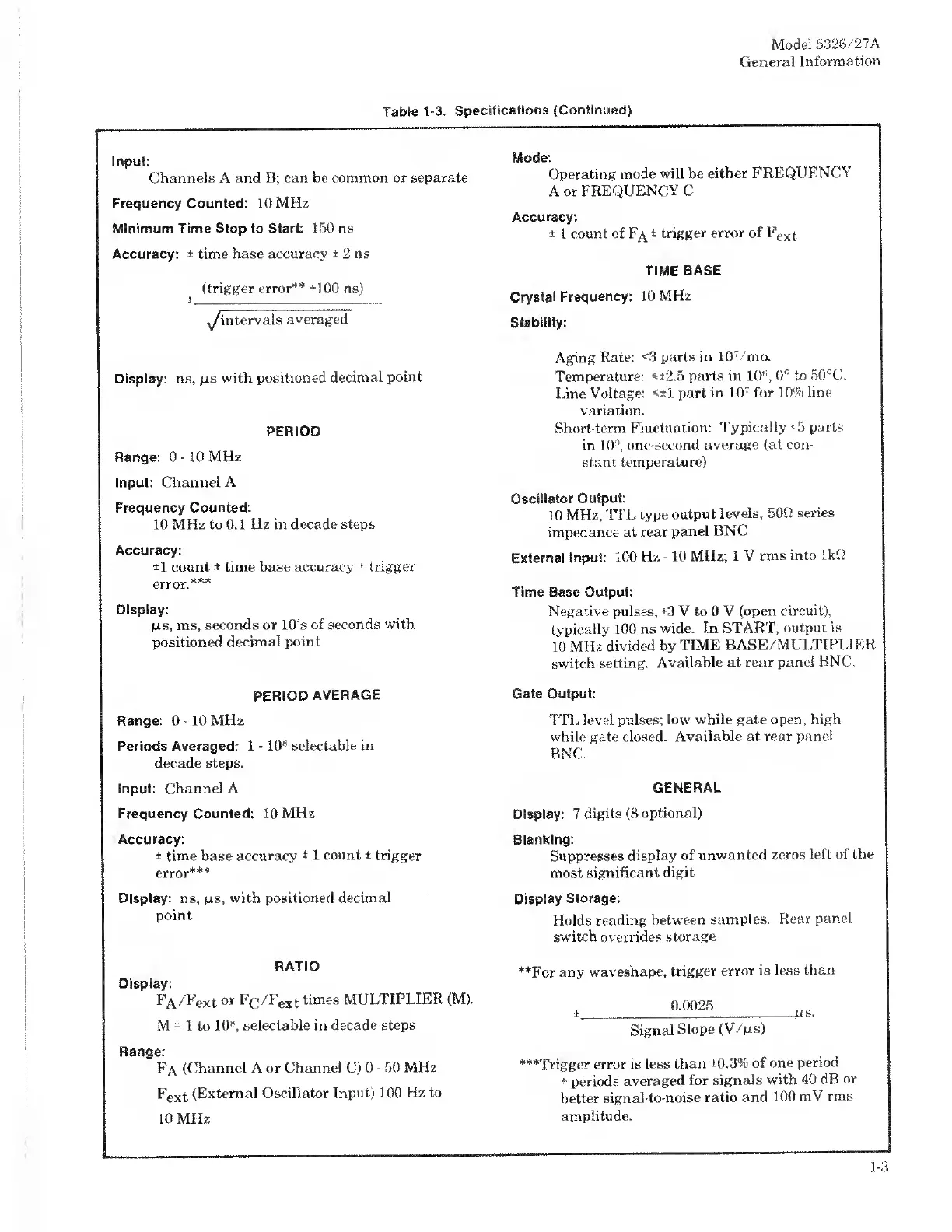

Table 1-3. Specifications (Continued)
Input:
Channels A and B; can be common or separate
Frequency Counted: 10 MHz
Minimum Time Stop to Start: 150 ns
Accuracy: ± time base accuracy ± 2 ns
(trigger error** -el00 ns)
Display: ns, /as with positioned decimal point
PERIOD
Range: 0-10 MHz
Input: Channel A
Frequency Counted:
10 MHz to 0.1 Hz in decade steps
Accuracy:
±1 count ± time base accuracy ± trigger
error.***
Display:
/as, ms, seconds or 10’s of seconds with
positioned decimal point
PERIOD AVERAGE
Range: 0 -10 MHz
Periods Averaged: 1 -10 8 selectable in
decade steps.
Input: Channel A
Frequency Counted: 10 MHz
Accuracy:
± time base accuracy ± 1 count ± trigger
error***
Display: ns, ms, with positioned decimal
point
RATIO
Display:
F A /F e xt or F C /F ex t times MULTIPLIER (M).
M = 1 to 10*, selectable in decade steps
Range:
Fa (Channel A or Channel C) 0 - 50 MHz
F ex t (External Oscillator Input) 100 Hz to
10 MHz
Mode:
Operating mode will be either FREQUENCY
A or FREQUENCY C
Accuracy:
± 1 count of F A ± trigger error of F ex t
TIME BASE
Crystal Frequency: 10 MHz
Stability:
Aging Rate: <3 parts in lOVmo.
Temperature: <±2.5 parts in I0 fi , 0° to 50°C.
Line Voltage: <±1 part in 10 T for 10% line
variation.
Short-term Fluctuation: Typically <5 parts
in 10 9 , one-second average (at con¬
stant temperature)
Oscillator Output:
10 MHz, TTL type output levels, 50Q series
impedance at rear panel BNC
External Input: 100 Hz -10 MHz; 1 V rms into IkO
Time Base Output:
Negative pulses, ±3 V to 0 V (open circuit),
typically 100 ns wide. In START, output is
10 MHz divided by TIME BASE/MULTIPLIER
switch setting. Available at rear panel BNC.
Gate Output:
TTL level pulses; low while gate open, high
while gate closed. Available at rear panel
BNC.
GENERAL
Display: 7 digits (8 optional)
Blanking:
Suppresses display of unwanted zeros left of the
most significant digit
Display Storage:
Holds reading between samples. Rear panel
switch overrides storage
♦♦ For any waveshape, trigger error is less than
00025
Signal Slope (V/ms)
***Trigger error is less than ±0.3% of one period
* periods averaged for signals with 40 dB or
better signal-to-noise ratio and 100 mV rms
amplitude.
intervals averaged
1 -
