Mode)
5326/27A
General
Information

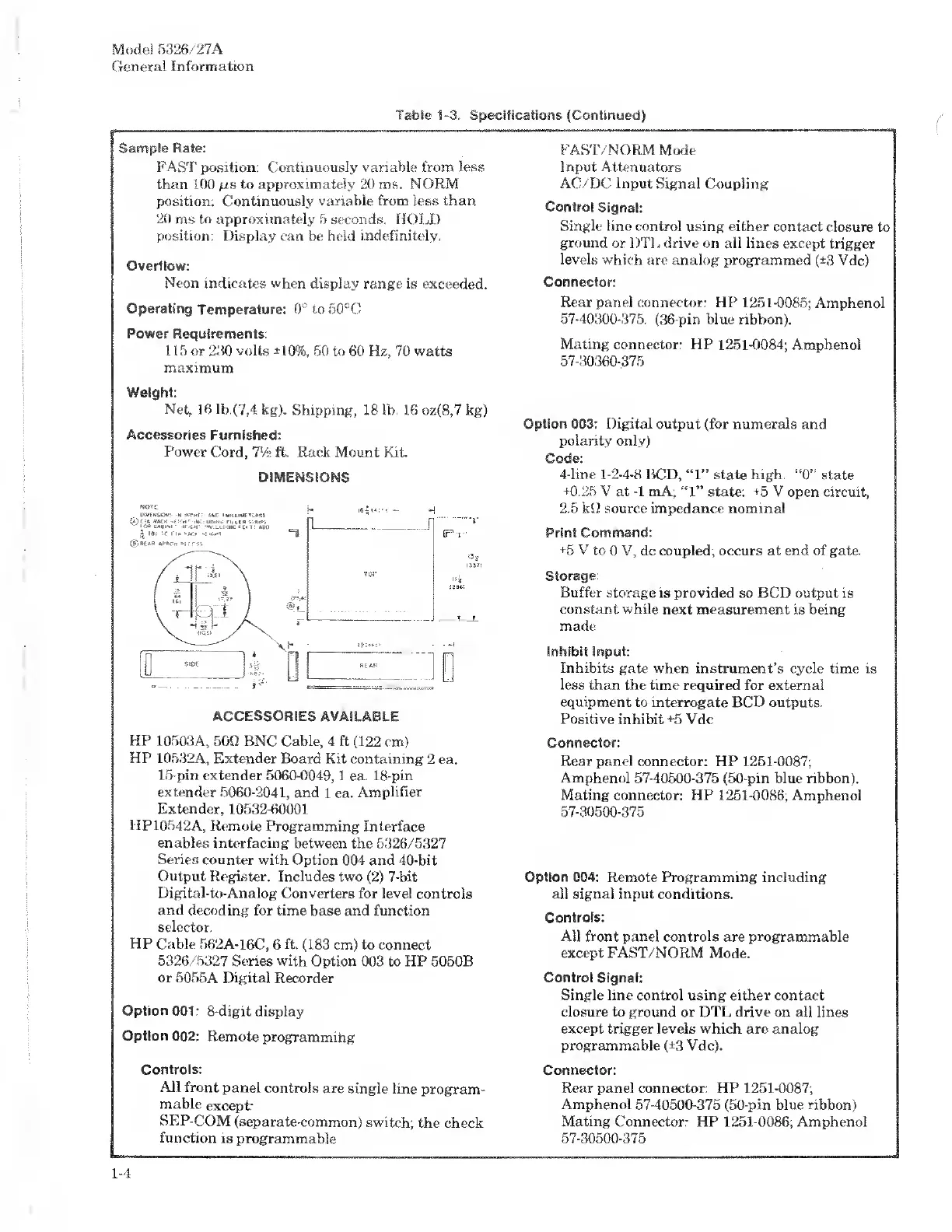

Table
1-3.
Specifications
(Continued)
Sample
Rate:
FAST
position:
Continuously
variable
from
less
than
100
pts
to
approximately
20
ms.
NORM
position:
Continuously
variable
from
less
than
20
ms
to
approximately
5
seconds.
HOLD
position:
Display
can
be
held
indefinitely.
Overt
low:
Neon
indicates
when
display
range
is
exceeded.
Operating
Temperature:
to
50°C
Power
Requirements:
115
or
230
volts
±10%,
50
to
60
Hz,
70
watts
maximum
Weight:
Net,
16
lb.(7,4
kg).
Shipping,
18
lb.
16
oz(8,7
kg)
Accessories
Furnished:
Power
Cord,
7%
ft.
Rack
Mount
Kit.
Dl^EMSIONS
ACCESSORIES
AVAILABLE
HP
10503A,
50Q
BNC
Cable,
4
ft
(122
cm)
HP
10532A,
Extender
Board
Kit
containing
2
ea.
15-pin
extender
5060-0049,
1
ea.
18-pin
extender
5060-2041,
and
1
ea.
Amplifier
Extender,
10532-60001
IIP10542A,
Remote
Programming
Interface
enables
interfacing
between
the
5326/5327
Series
counter
with
Option
004
and
40-bit
Output
Register.
Includes
two
(2)
7-bit
Digital-to-Analog
Converters
for
level
controls
and
decoding
for
time
base
and
function
selector.
HP
Cable
562A-16C,
6
ft.
(183
cm)
to
connect
5326/5327
Series
with
Option
003
to
HP
5050B
or
5055A
Digital
Recorder
Option
001
:
8-digit
display
Option
002:
Remote
programming
Controls:
All
front
panel
controls
are
single
line
program¬
mable
except:
SEP-COM
(separate-common)
switch;
the
check
function
is
programmable
FAST/NORM
Mode
Input
Attenuators
AC/DC
Input
Signal
Coupling
Control
Signal:
Single
line
control
using
either
contact
closure
to
ground
or
DTL
drive
on
all
lines
except
trigger
levels
which
are
analog
programmed
(±3
Vdc)
Connector
Rear
panel
connector:
HP
1251-0085;
Amphenol
57-40300-375.
(36-pin
blue
ribbon).
Mating
connector:
HP
1251-0084;
Amphenol
57-30360-375
Option
003:
Digital
output
(for
numerals
and
polarity
only)
Code:
4-line
1-2-4-8
BCD,
“1”
state
high.
“0”
state
+0.25
V
at
-1
tnA;
“1”
state:
+5
V
open
circuit,
2.5
kQ
source
impedance
nominal
Print
Command:
+5
V
to
0
V,
dc
coupled:
occurs
at
end
of
gate.
Storage:
Buffer
storage
is
provided
so
BCD
output
is
constant
while
next
measurement
is
being
made
Inhibit
Input:
Inhibits
gate
when
instrument’s
cycle
time
is
less
than
the
time
required
for
external
equipment
to
interrogate
BCD
outputs.
Positive
inhibit
+5
Vdc
Connector:
Rear
panel
connector:
HP
1251-0087;
Amphenol
57-40500-375
(50-pin
blue
ribbon).
Mating
connector:
HP
1251-0086;
Amphenol
57-30500-375
Option
0G4:
Remote
Programming
including
all
signal
input
conditions.
Controls:
All
front
panel
controls
are
programmable
except
FAST/NORM
Mode.
Control
Signal:
Single
line
control
using
either
contact
closure
to
ground
or
DTL
drive
on
all
lines
except
trigger
levels
which
are
analog
programmable
(±3
Vdc).
Connector:
Rear
panel
connector:
HP
1251-0087;
Amphenol
57-40500-375
(50-pin
blue
ribbon)
Mating
Connector:
HP
1251-0086;
Amphenol
57-30500-375
