Operating Information
Model 8756A
PLOT Menu
SEL
CT PLO
D TA
PLO TI G
PLO C MPL TE
'
'
'
'
I
'
'
I
'
RACE 1 REf"
I
'
RACE 1
1/
I \
rr
I
\
1\
I \
•
1/
../
\ ../ '\
v
\
(a)
(b)
(c)
(!t":J ~~. :s... REf" + Q,r"J T~' B :B R[f"
..
NO LO TER AV IL
PL~~ ~e~
PLO TE
NOT RE DY
'
'
'
I
'
I
'
liACE ~ RACE 1
I \
I \
1/
v
\
../ '\
(d)
{e)
When PLOT is selected on the MAIN MENU, the PLOT menu appears,
as shown in (a). The prompt SELECT PLOT DATA is shown in the
ACTIVE ENTRY AREA. This menu allows for plots to be made onto
the HP-IB Plotter (either the 7470A or 9872C) connected to the
8756 SYSTEM INTERFACE. The Plotter address switches must be
set to 00101 binary or 05 decimal for proper operation. The Pl
and P2 positions (bottom left limit and upper right limit,
respectively) will be the Plotter's default values, but may be
changed by the user at any time after powering on the Plotter.
Refer to the Plotter Operating Manual for the procedure on
changing Pl and P2.

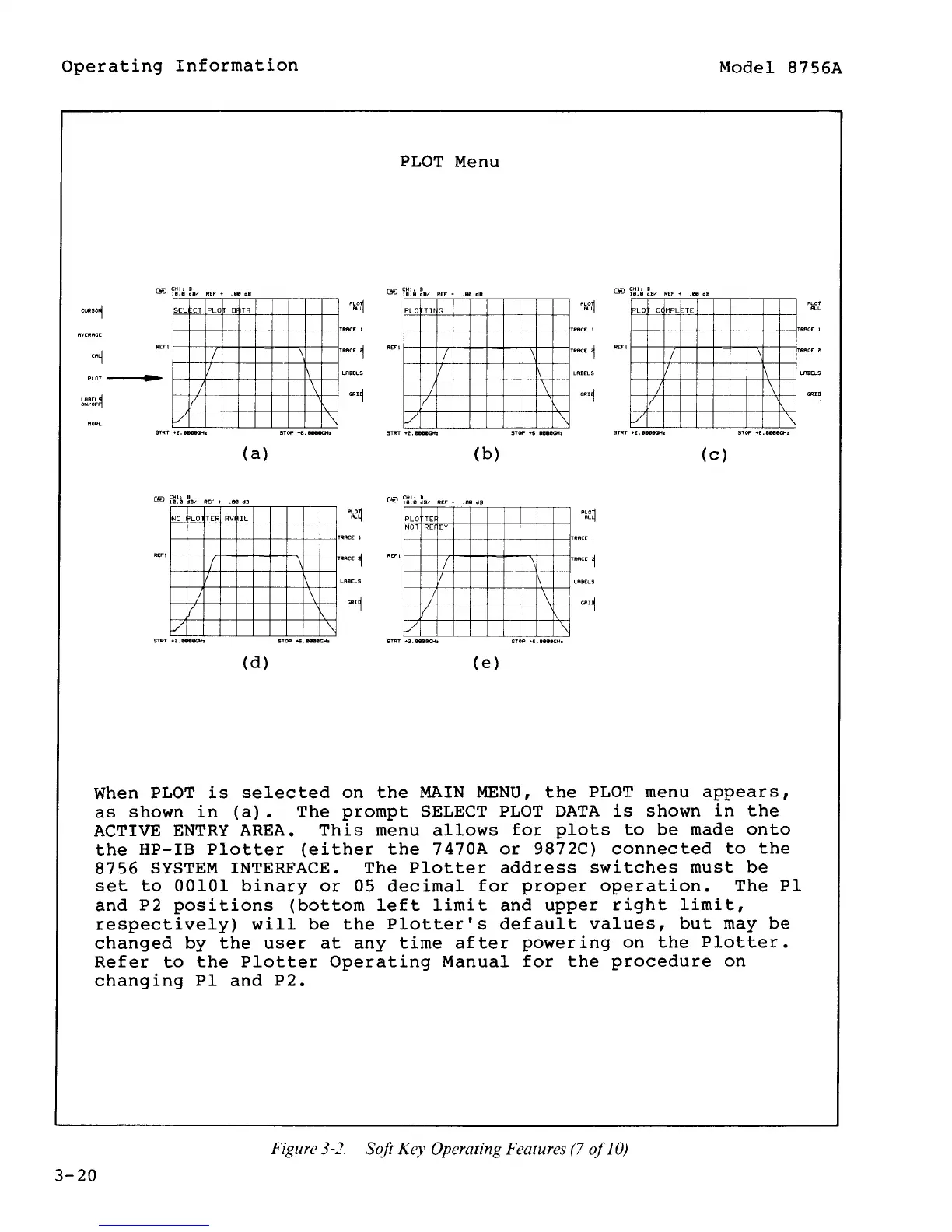

Figure 3-2. Soft Key Operating Features (7 of 10)
3-20
