Operating Information
Model 8756A
3-24
REAR PANEL OPERATING FEATURES
1. 8756 SYSTEM INTERFACE
W«l'l-'/ '>!() r)l<U<A'<% %>'<,><AMi'~>;"'""''" JH";VJ~
11!HJJ 0>!>'r~'~,~C J0 ;JlJ;O.U•feJ:> ~tJil(i(;"t f"tj'CS.()~t~V
Input/Output connector provides control of the HP 8350B
Sweep Oscillator or the HP 8340A Synthesized Sweeper and
the HP-IB Plotters, Model 7470A or 9872C, through their
respective HP-IB connectors. This control is accomplished
without the use of an external HP-IB controller. The 8350B
or the 8340A address must be set to 19 decimal; the 7470A
or 9872C address must be set to 05 decimal.
The 8756 SYSTEM INTERFACE control of the 8350B or the 8340A
provides frequency annotation shown in the FREQUENCY LABELS
of the CRT display, SAVE, RECALL, and PRESET (pressed on
either instrument) of both instruments, and Alternate Sweep
capability.
The 8756 SYSTEM INTERFACE control of the 7470A or the 9872C
provides for hard copy plots, using the PLOT Menu of the
Soft Keys, and PRESET to default values for the plotter.
2. HP INTERFACE BUS
Input/Output connector allows interfacing to HP-IB
controllers. The HP-IB address is set at the factory to 16
decimal, which may be changed using the ADDRESS function
(SHIFT LOCAL) • Other instruments may be connected to the
HP-IB, but must be set to a different address value.

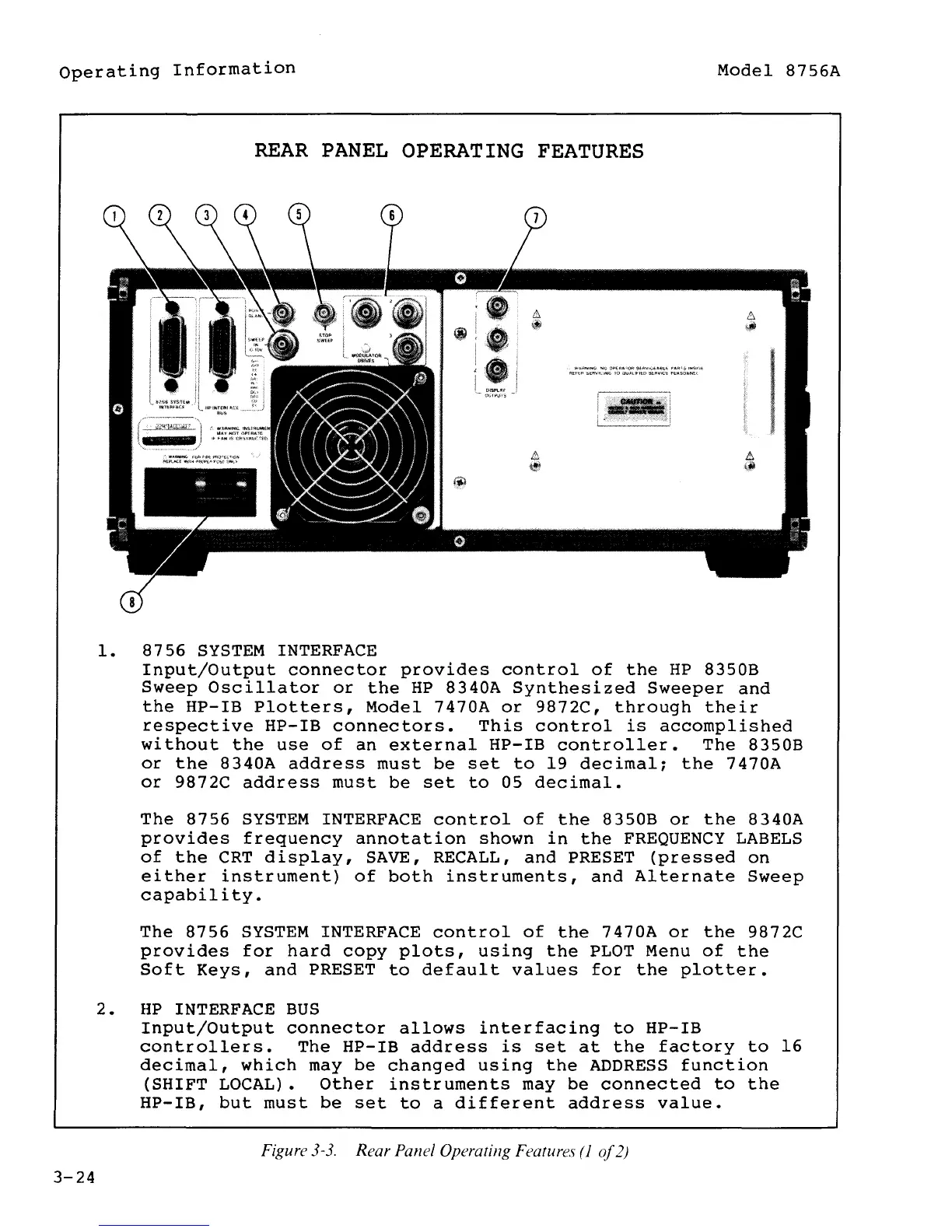

Figure 3-3. Rear Panel Operating Features (1 of 2)
