HP 5344S User Manual

Model 8756A
Operating Information
MORE Menu
CURSO,
AVtRAGE
CA~
RErt
I
PLOT
1/
I
1/
LABEL~
ON/OF
MORE
v
STRT +2. 80B0GHz
{a)
\
1\
\
\
STOP +6 . 0000GH:z
Mod
ON/OFFj
SERVICE

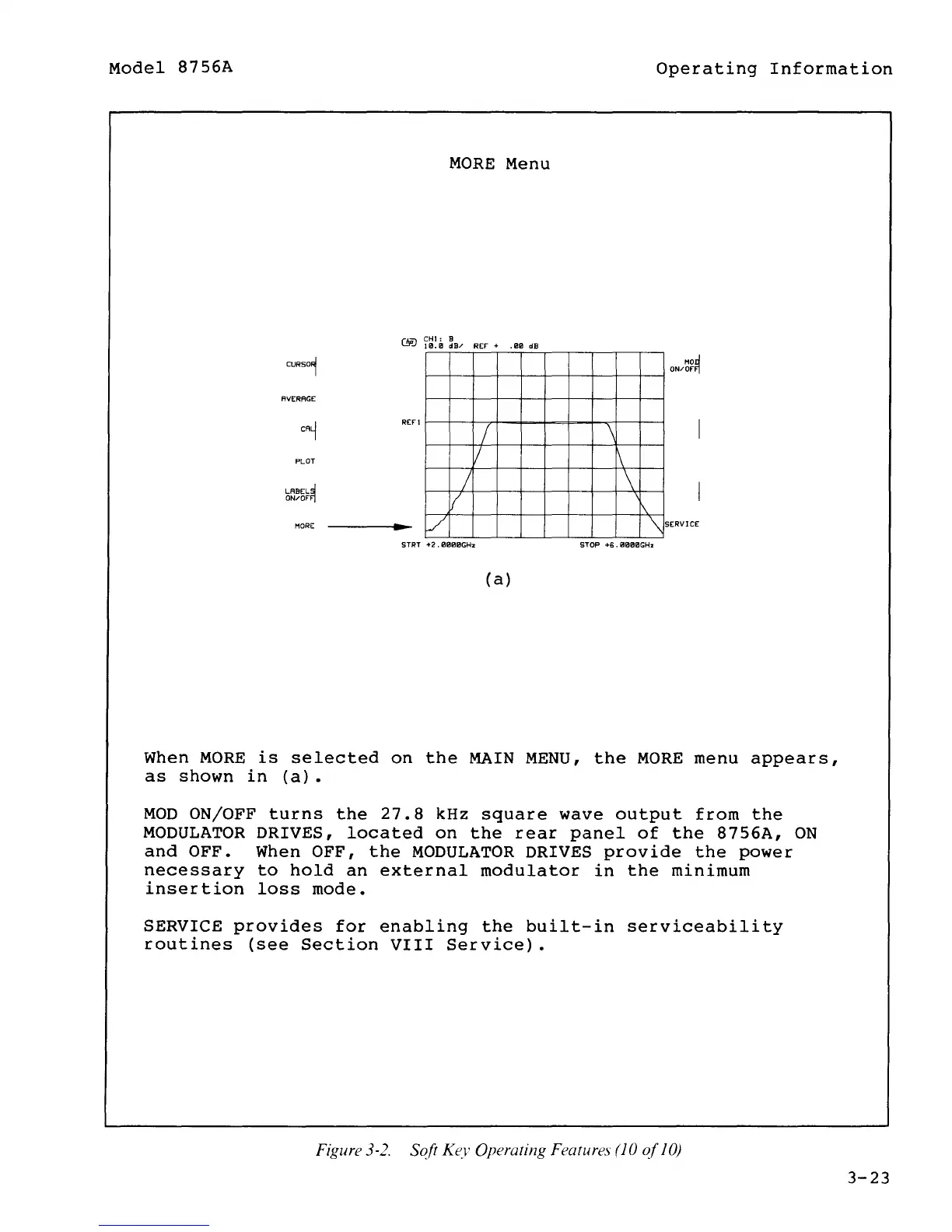

When MORE is selected on the MAIN MENU, the MORE menu appears,
as shown in (a) •
MOD ON/OFF turns the 27.8 kHz square wave output from the
MODULATOR DRIVES, located on the rear panel of the 8756A, ON
and OFF. When OFF, the MODULATOR DRIVES provide the power
necessary to hold an external modulator in the minimum
insertion loss mode.
SERVICE provides for enabling the built-in serviceability
routines (see Section VIII Service) •
Figure 3-2. Soft Key Operating Features (10 of 10)
3-23
