Operating Information
Model 8756A
address. For example, since the HP 8756A default address is 16
decimal = 10000 binary, the default 8756 SYSTEM INTERFACE address is
17 decimal = 10001 binary. As another example, if the HP 8756A
address is 7 decimal= 111 binary, then the SYSTEM INTERFACE address
becomes 6 decimal = 110 binary.
An example of pass through commands to the HP-IB Sweep Oscillator
with address 19 decimal using the default HP 8756A address is:
1. Address device 16 (the HP-IB of the HP 8756A); send the
characters "PT19;" or "PT19[cr][lf]".
2. Address device 17 (the 8756 SYSTEM INTERFACE); send sweeper HP-
IB commands.
3. Address device 16. This returns the HP 87 56A to its normal HP-IB
operation.
4. Subsequent addressing of device 17 will send commands to the HP-
IB Sweep Oscillator.
An example of pass through commands to the HP-IB Plotter with address
05 decimal using the default HP 8756A address is:
1. Address device 16 (the HP-IB of the HP 8756A); send the
characters "PT05;" or "PT05 [cr] [lf] ".
2. Address device 17 (the 8756 SYSTEM INTERFACE); send HP-GL
commands to the Plotter.
3. Address device 16. This returns the HP 8756A to its normal HP-IB
operation.
4. Subsequent addressing of device 17 will send commands to the HP-
IB plotter.
RESPONSE TO UNIVERSAL COMMANDS
ABORT
The HP 8756A responds to the ABORT-message (IFC, Interface Clear line
set to TRUE) by stopping all Listener or Talker functions.
CLEAR
The DCL (Device Clear) and SDC (Selective Device Clear) messages
clear all status bytes, the Request Mask, the HP-IB of the HP 8756A
and the 8756 SYSTEM INTERFACE. The current front panel settings are
unchanged.

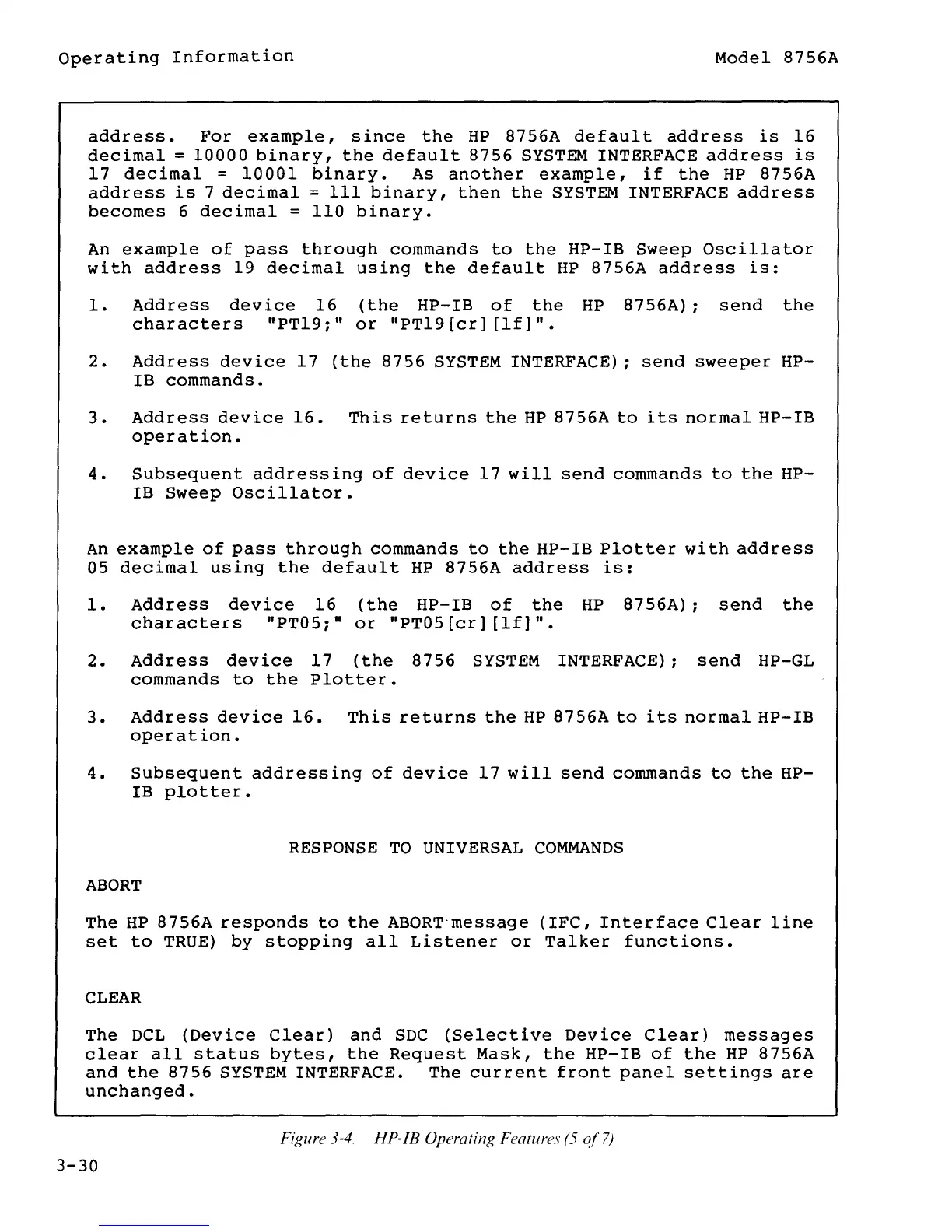

F(f!;ure 3-4. HP-IB Operating Features (5 of7)
3-30
