Operating Information
Model 8756A

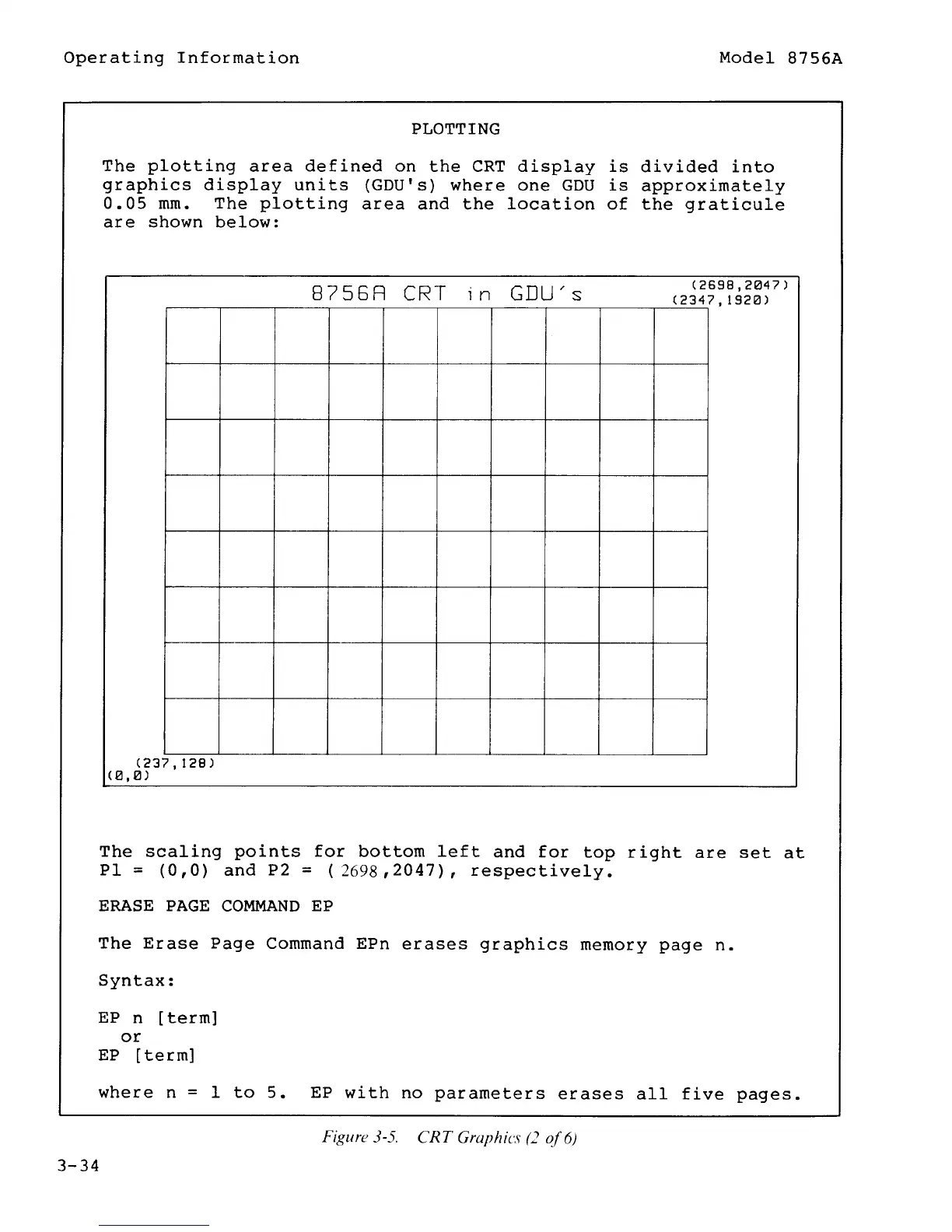

PLOTTING
The plotting area defined on the CRT display is divided into
graphics display units (GDU's) where one GDU is approximately
0.05 mm. The plotting area and the location of the graticule
are shown below:
8756
R CRT in GDU / s <
2698
'
2047
)
,----,----,----,----,-----,----,----,----.----.-~(=2~347,1920)
(237,128)
(0,0)
The scaling points for bottom left and for top right are set at
Pl = (0,0) and P2 = (2698,2047), respectively.
ERASE PAGE COMMAND EP
The Erase Page Command EPn erases graphics memory page n.
Syntax:
EP n [term]
or
EP [term]
where n = 1 to 5. EP with no parameters erases all five pages.
Figure 3-5. CRT Graphics (2 of 6)
3-34
