Model 8756A Operating Information

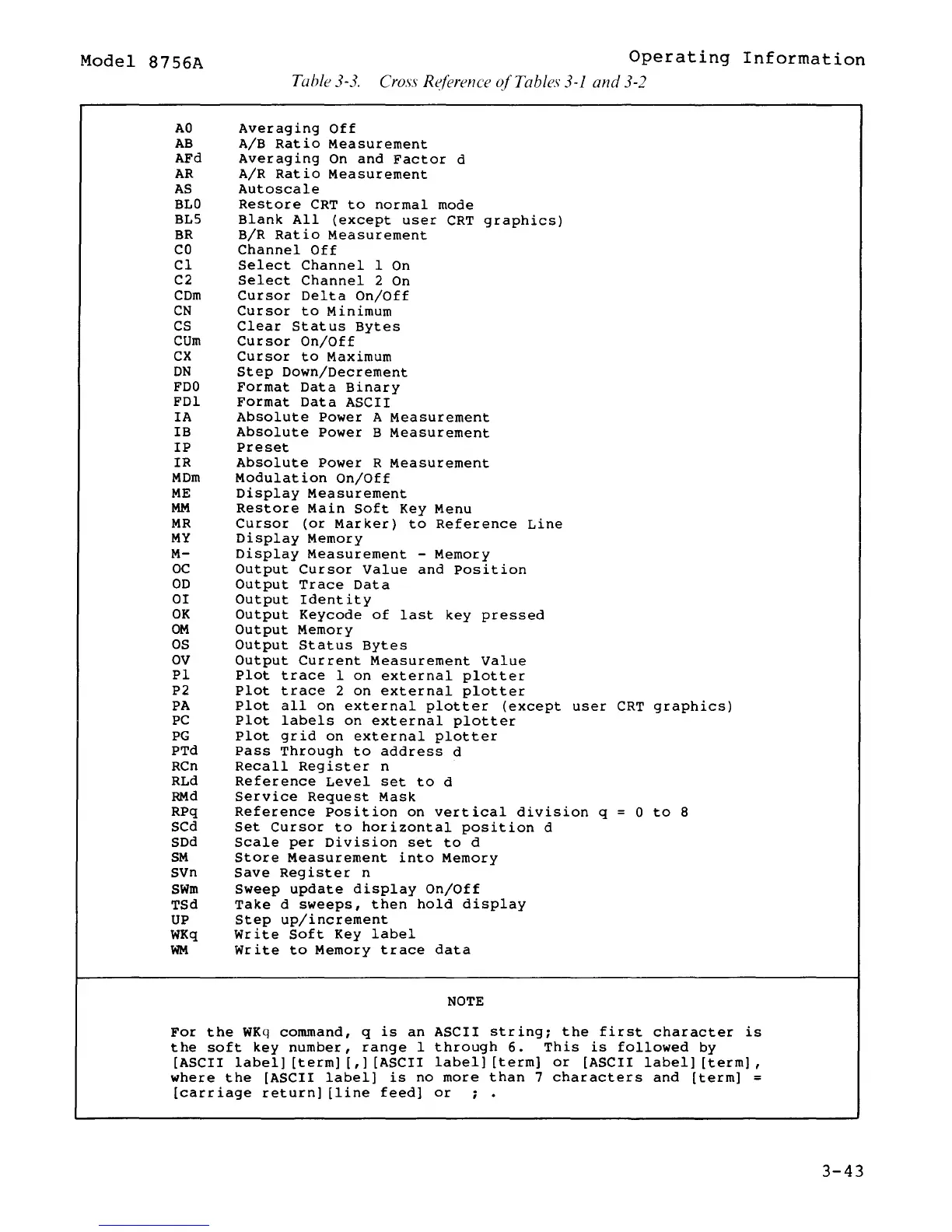

Table 3-3. Cross Reference of Tables 3-1 and 3-2
AO Averaging Off
AB A/B Ratio Measurement
AFd Averaging On and Factor d
AR A/R Ratio Measurement
AS Autoscale
BLO Restore CRT to normal mode
BL5 Blank All (except user CRT graphics)
BR B/R Ratio Measurement
CO Channel Off
Cl Select Channel 1 On
C2 Select Channel 2 On
COm Cursor Delta On/Off
CN Cursor to Minimum
CS Clear Status Bytes
CUm Cursor On/Off
CX Cursor to Maximum
ON Step Down/Decrement
FDO Format Data Binary
FDl Format Data ASCII
IA Absolute Power A Measurement
IB Absolute Power B Measurement
IP Preset
IR Absolute Power R Measurement
MOm Modulation On/Off
ME Display Measurement
MM Restore Main Soft Key Menu
MR Cursor (or Marker) to Reference Line
MY Display Memory
M- Display Measurement - Memory
OC Output Cursor Value and Position
OD Output Trace Data
OI Output Identity
OK Output Keycode of last key pressed
OM Output Memory
OS Output Status Bytes
OV Output Current Measurement Value
Pl Plot trace 1 on external plotter
P2 Plot trace 2 on external plotter
PA Plot all on external plotter (except user CRT graphics)
PC Plot labels on external plotter
PG Plot grid on external plotter
PTd Pass Through to address d
RCn Recall Register n
RLd Reference Level set to d
RMd Service Request Mask
RPq
Reference Position on vertical division q 0 to 8
SCd Set Cursor to horizontal position d
SOd Scale per Division set to d
SM Store Measurement into Memory
SVn Save Register n
SWm Sweep update display On/Off
TSd Take d sweeps, then hold display
UP Step up/increment
WKq Write Soft Key label
WM Write to Memory trace data
NOTE
For the WKq command, q is an ASCII string; the first character is
the soft key number, range 1 through 6. This is followed by
[ASCII label] [term] [, 1 [ASCII label] [term] or [ASCII label] [term],
where the [ASCII label] is no more than 7 characters and [term] =
[carriage return] [line feed] or , •
3-43
