Model
8756A
Operating
Information
9.
Connect
the
Detector
input
to
the
B
input
of
the
8756A.
On
the
8756A,
press
[PRESET] ,
Channel
1 [SHIFT]
[MEAS
RATIO]
(CHAN
OFF)
to
turn
Channel
2
off,
and
select
Channel
1
[MEAS
PWR]
to
B.
Repeat
Steps
6
through
8
for
the
B
Detector
Input.
10.
Connect
the
Detector
input
to
the
R
input
of
the
8756A.
On
the
8756A,
press
[PRESET] ,
Channel
1 [SHIFT]
[MEAS
RATIO]
(CHAN
OFF)
to
turn
Channel
2
off,
and
select
Channel
1
[MEAS
PWR]
to
R.
Repeat
Steps
6
through
8
for
the
R
Detector
Input.
11.
If
any
test
fails,
or
Microwave
Test
Device
measurements
do
not
reasonably
match
previous
measurements,
refer
to
the
Performance
Tests
in
Section
IV.
12.
When
finished
with
the
Operator's
Checks,
reconnect
the
8756A
with
the
cabling
configuration
necessary
for
correct
operation
with
your
Sweep
Oscillator
(the
HP
8340A
and
8350B
require
additional
connections).

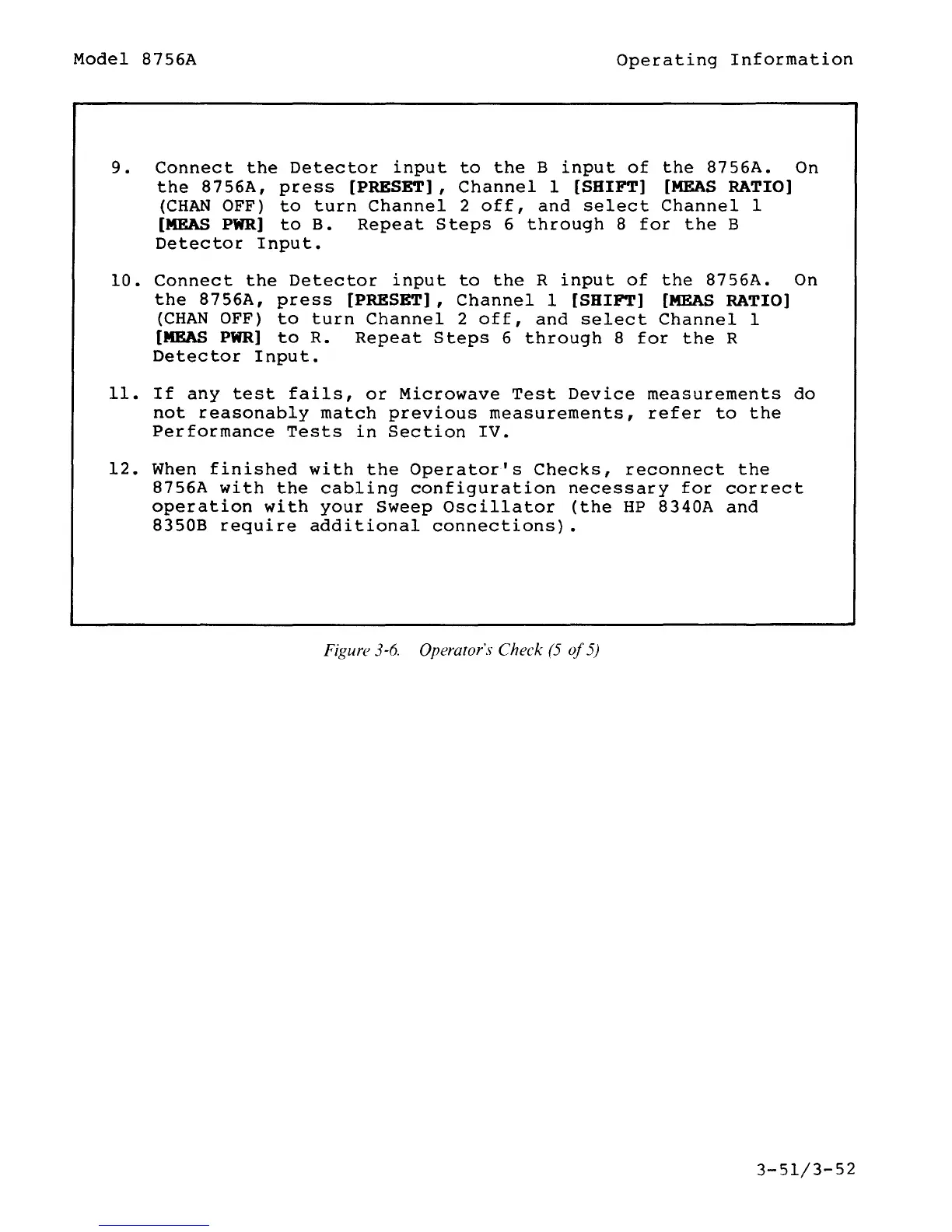

Figure
3-6.
Operator's Check
(5
of
5)
3-51/3-52
