Model 5355A
Installation
The 5355A contains metric threaded HP-IB cable mounting studs as
opposed to English threads. Metric threaded HP 10631A, B, C, or D
HP-IB cable lockscrews must be used to secure the cable to the
Instrument. Identification of the two types of mounting studs and
lockscrews is made by their color. English threaded fasteners are
colored silver and metric threaded fasteners are colored black. DO
NOT mate silver and black fasteners to each other or the threads of
either or both will be destroyed. Metric threaded HP-IB cable
hardware illustrations and part numbers follow.
LONG SHORT
MOUNTING MOUNTING
LOCKSCREW STUD STUD
1390-0360 9380-0643 j 9380-0644 |
THESE PINS
ARE
INTERNALLY
GROUNDED
logic Levels
The Hewlett-Packard interface Bus logic levels are TTL compatible, i.e., the true (1) state is 0.0V dc to
0.4V dc and the false (0) state is +2.5V dc to +4.0V dc.
Programming
Refer to Section 111, Operation
Mating Connector
HP 1251-0293; Amphenol 57-30240.
Mating Cables Available
HP 10833A, 1 metre (3.28 ft.)
HP 10833B, 2 metres (6.56 ft.)
HP 10833C, 4 metres (13.12 ft.)
HP 10833D, 0.5 metre (1.64 ft.)
Cabling Restrictions for Standard System
1. A Hewlett-Packard Interface Bus System may contain no more than 1.8 metres (6 ft,} of connecting
cable per instrument.
2, The maximum accumulative length of connecting cable for any Hewlett-Packard Interface Bus
System is 20.0 metres (65.6 ft.).

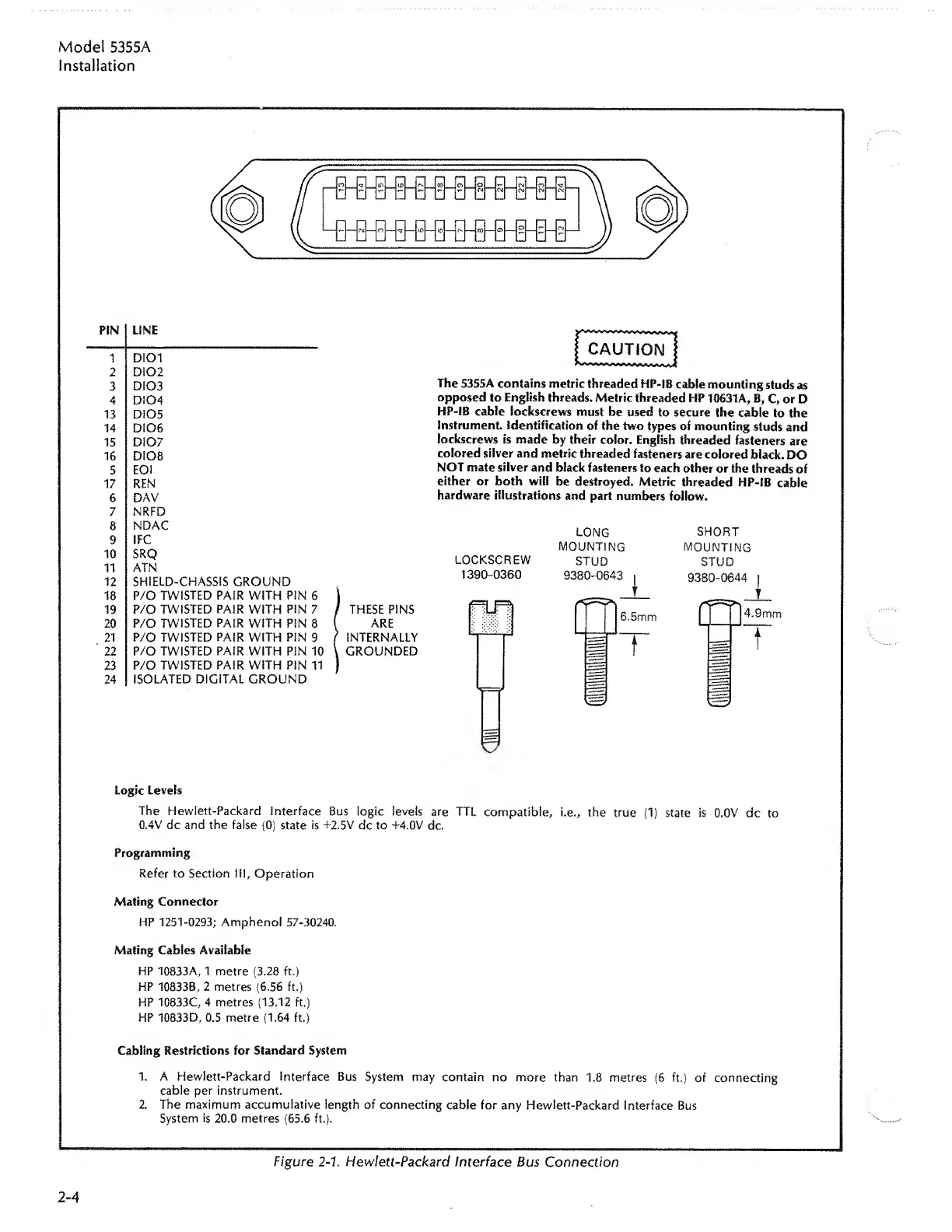

Figure 2-1. Hewlett-Packard Interface Bus Connection
PIN
LINE
1 DIOI
2
DI02
3 DI03
4 DI04
13 DIOS
14 DI06
15
DI07
16
DI08
5
EOl
17
REN
6
DAV
7
NRFD
8
NDAC
9
IFC
10 SRQ
11
AIN
12
SHIELD-CHASSIS GROUND
18
P/O TWISTED PAIR WITH PIN 6
19 P/O TWISTED PAIR WITH PIN 7
20 P/O TWISTED PAIR WITH PIN 8
21 P/O TWISTED PAIR WITH PIN 9
22
P/O TWISTED PAIR WITH PIN 1(
23
P/O TWISTED PAIR WITH PIN V
24
ISOLATED DIGITAL GROUND
2-4
