Installing the HP 5400 zl Switches
Installation Procedures
Installing the HP 5400 zl
Switches
2. Partially install a screw into the top hole of a pair of holes that are 0.5
inches apart in each rack/cabinet upright as shown in the illustration
below. Ensure that the screws are at the same level in each upright.

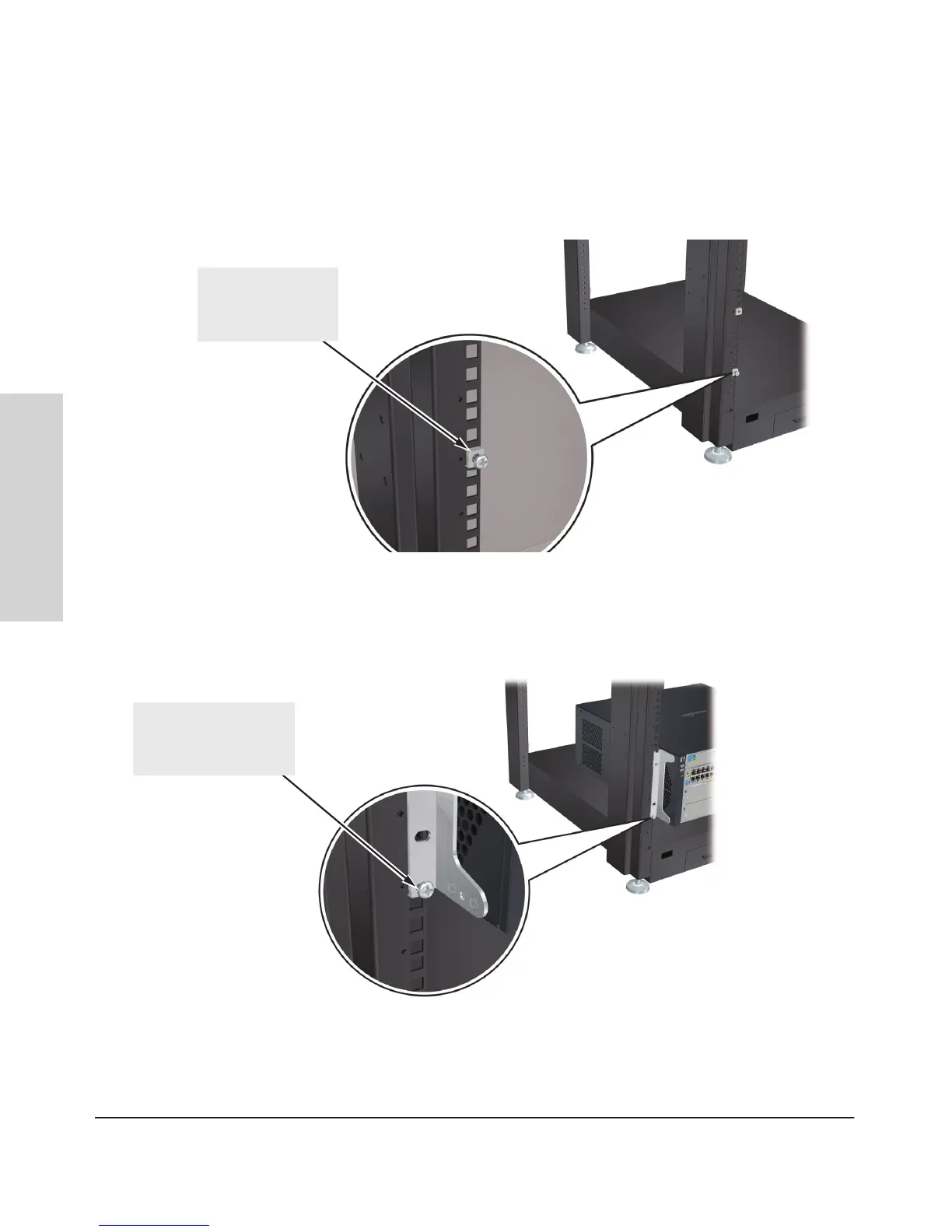

Figure 2-8. Mounting screw positioning
3. Place the switch in the rack and lower it so the notches in the bottom of
the bracket slide onto the screws, then tighten these screws.
Figure 2-9. Notches in bracket being installed
Partially install a screw
into the top hole of a
close (0.5-inch) pair on
both sides of the rack
lower the switch with
mounting brackets onto the
partially installed screws,
then tighten these screws
