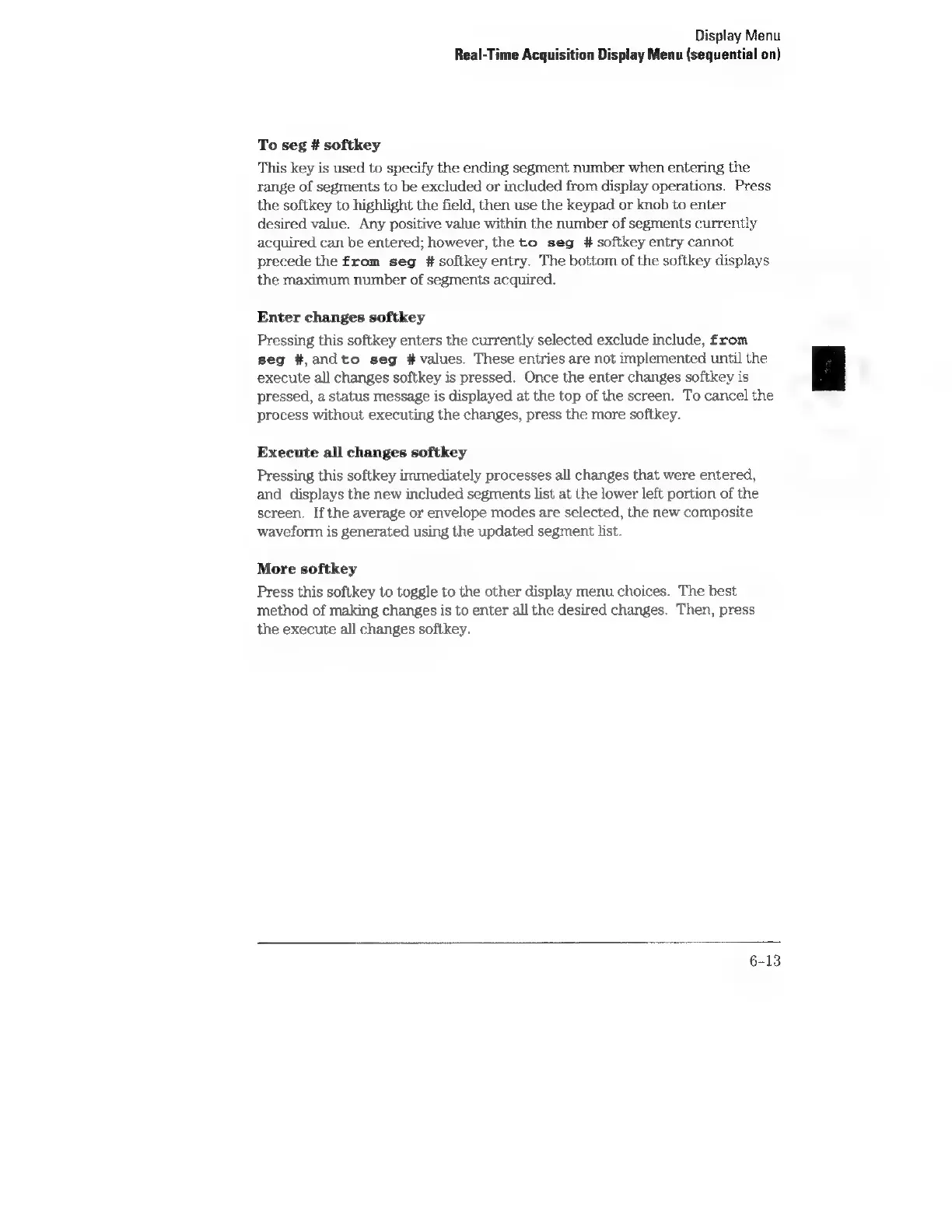

Display Menu
Real-Time Acquisition Display Menu (sequential on)
To seg # softkey
This key is used to specify the ending segment number when entering the
range of segments to be excluded or included from display operations. Press
the softkey to highlight the field, then use the keypad or knob to enter
desired value. Any positive value within the number of segments currently
acquired can be entered; however, the to seg # softkey entry cannot
precede the from seg # softkey entry. The bottom of the softkey displays
the maximum number of segments acquired.
Enter changes softkey
Pressing this softkey enters the currently selected exclude include, from
seg #,andto seg # values. These entries are not implemented until the
execute all changes softkey is pressed. Once the enter changes softkey is
pressed, a status message is displayed at the top of the screen. To cancel the
process without executing the changes, press the more softkey.
Execute all changes softkey
Pressing this softkey immediately processes all changes that were entered,
and displays the new included segments list at the lower left portion of the
screen. If the average or envelope modes are selected, the new composite
waveform is generated using the updated segment list.
More softkey
Press this softkey to toggle to the other display menu choices. The best
method of making changes is to enter all the desired changes. Then, press
the execute all changes softkey.
