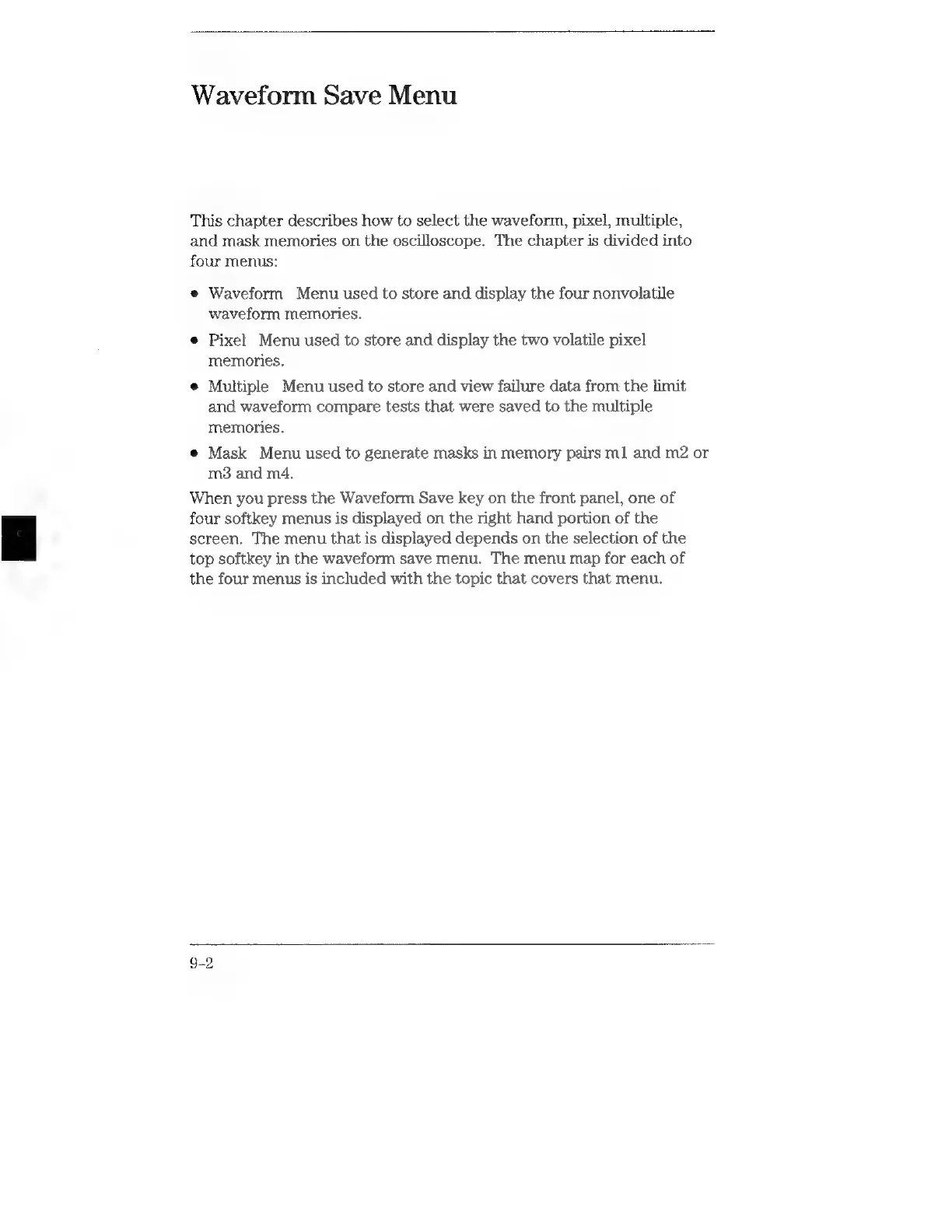

Waveform Save Menu
This chapter describes how to select the waveform, pixel, multiple,
and mask memories on the oscilloscope. The chapter is divided into
four menus:
e Waveform Menu used to store and display the four nonvolatile
waveform memories.
Pixel Menu used to store and display the two volatile pixel
memories.
Multiple Menu used to store and view failure data from the limit
and waveform compare tests that were saved to the multiple
memories.
e Mask Menu used to generate masks in memory pairs ml and m2 or
m3 and m4.
When you press the Waveform Save key on the front panel, one of
four softkey menus is displayed on the right hand portion of the
screen. The menu that is displayed depends on the selection of the
top softkey in the waveform save menu. The menu map for each of
the four menus is included with the topic that covers that menu.
