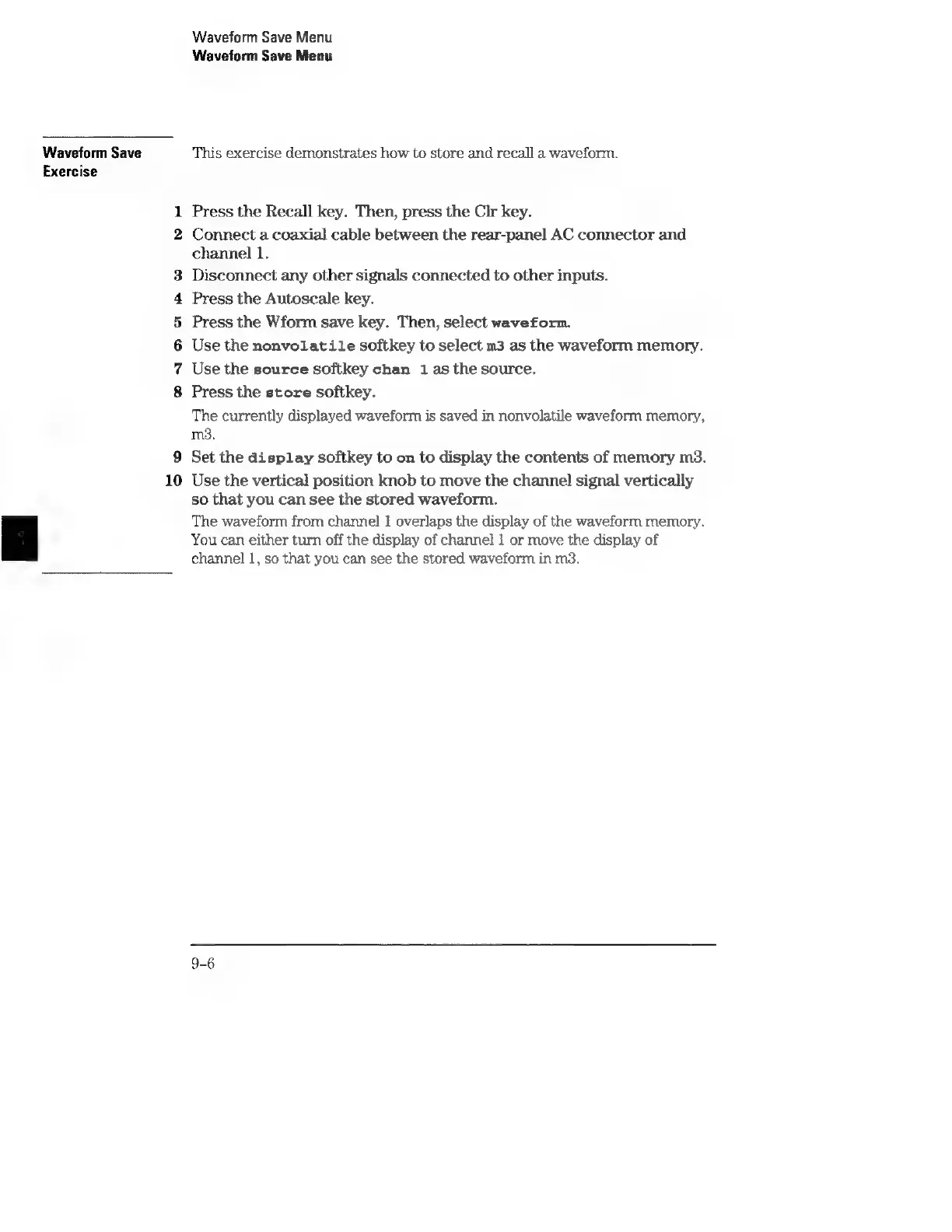

Waveform Save
Exercise
i)
SIS a Pw
10
Waveform Save Menu
Waveform Save Menu
This exercise demonstrates how to store and recall a waveform.
Press the Recall key. Then, press the Clr key.
Connect a coaxial cable between the rear-panel AC connector and
channel 1.
Disconnect any other signals connected to other inputs.
Press the Autoscale key.
Press the Wform save key. Then, select waveform.
Use the nonvolatile softkey to select m3 as the waveform memory.
Use the source softkey chan 1 as the source.
Press the store softkey.
The currently displayed waveform is saved in nonvolatile waveform memory,
m3.
Set the display softkey to on to display the contents of memory m3.
Use the vertical position knob to move the channel signal vertically
so that you can see the stored waveform.
The waveform from channel | overlaps the display of the waveform memory.
You can either turn off the display of channel 1 or move the display of
channel |, so that you can see the stored waveform in m3.
9-6
