HP 54522A - Page 219

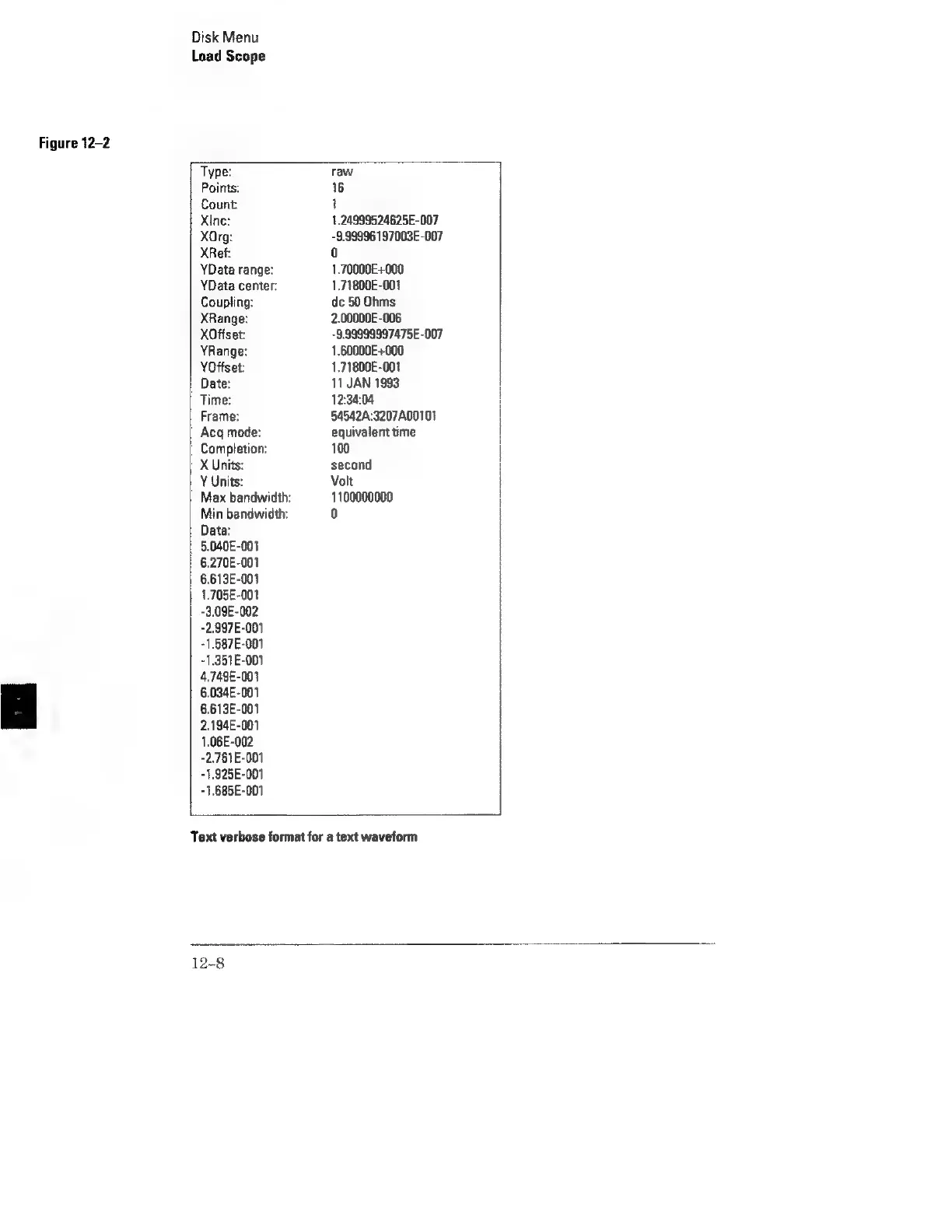

Figure 12-2
Disk Menu
Load Scope
Type: raw
Points: 16
Count i
Xine: 1,24999524625E-007
XOrg: -9.99996197003E-007
XRef: 0
YData range: 1.70000E+000
YData center: 1.71800E-001
Coupling: de 50 Ohms
XRange: 2.00000E-006
XOffset: -9.99999997475E-007
YRange: 1.60000E+000
YOffset: 1.71800E-001
Date: 11 JAN 1993 |
Time: 12:34:04 i
Frame: 54542A:3207A00101 H
Acq mode: equivalent time |
Completion: 100 \
X Units: second |
Y Units: Volt |
Max bandwidth: 1100000000 |
Min bandwidth: 0 |
Data: |
5.040E-001
6.270E-001
6.613E-001 |
1,705E-001
-3.09E-002
-2.997E-001
~1.587E-001
-1.351E-001
4,749E-001
6.034E-001
6.613E-001
2.194E-001
1,06E-002
-2.761E-001
-1.925E-001
-1,685E-001
Text verbose format for a text waveform
