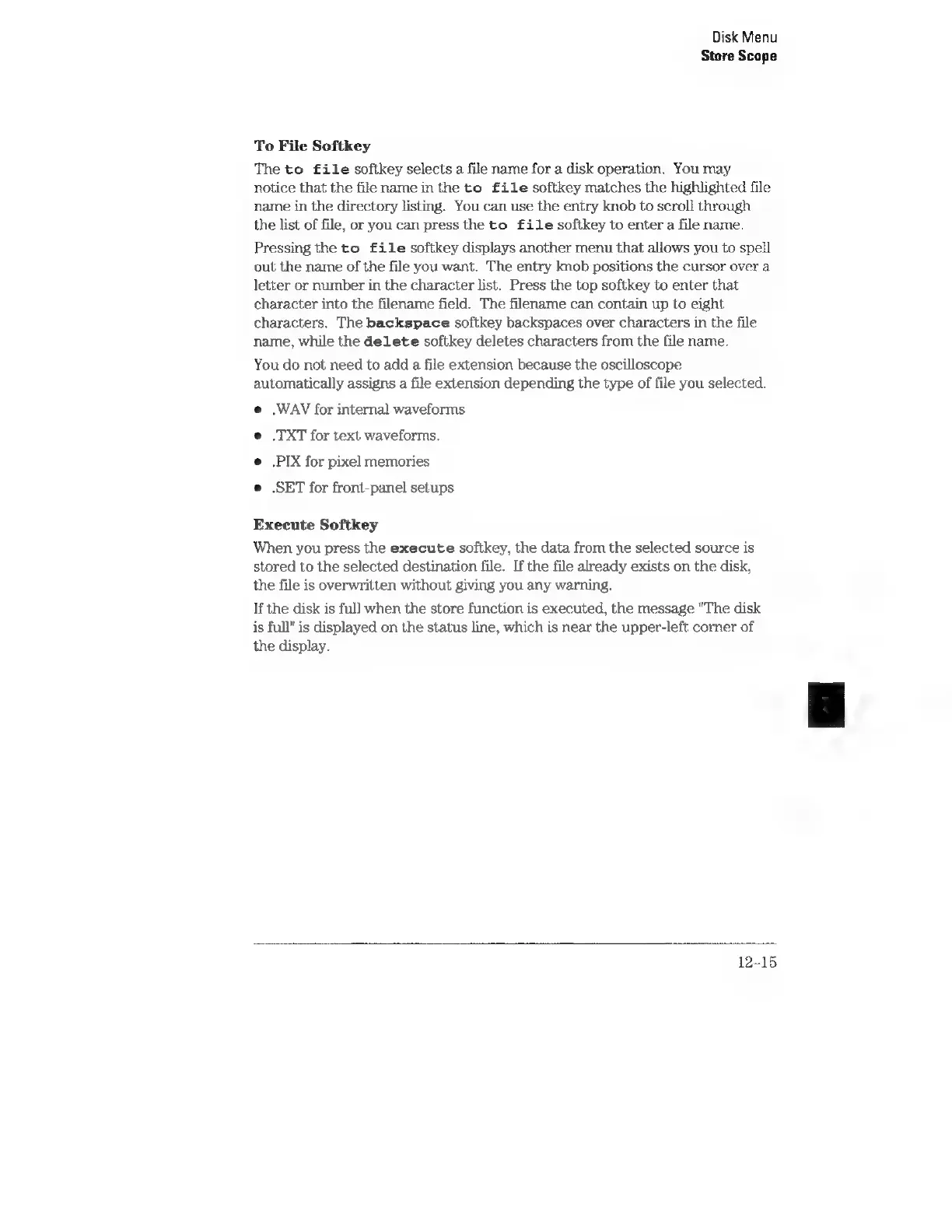

Disk Menu
Store Scope
To File Softkey
The to file softkey selects a file name for a disk operation. You may
notice that the file name in the to file softkey matches the highlighted file
name in the directory listing. You can use the entry knob to scroll through
the list of file, or you can press the to file softkey to enter a file name.
Pressing the to file softkey displays another menu that allows you to spell
out the name of the file you want. The entry knob positions the cursor over a
letter or number in the character list. Press the top softkey to enter that
character into the filename field. The filename can contain up to eight
characters. The backspace softkey backspaces over characters in the file
name, while the delete softkey deletes characters from the file name.
You do not need to add a file extension because the oscilloscope
automatically assigns a file extension depending the type of file you selected.
e .WAV for internal waveforms
e .TXT for text waveforms.
® .PIX for pixel memories
e .SET for front-panel setups
Execute Softkey
When you press the execute softkey, the data from the selected source is
stored to the selected destination file. If the file already exists on the disk,
the file is overwritten without giving you any warning.
If the disk is full when the store function is executed, the message "The disk
is full" is displayed on the status line, which is near the upper-left corner of
the display.
12-15
