UNINET IMAGING INC. • HP 5500 CARTRIDGE REMANUFACTURING INSTRUCTIONS

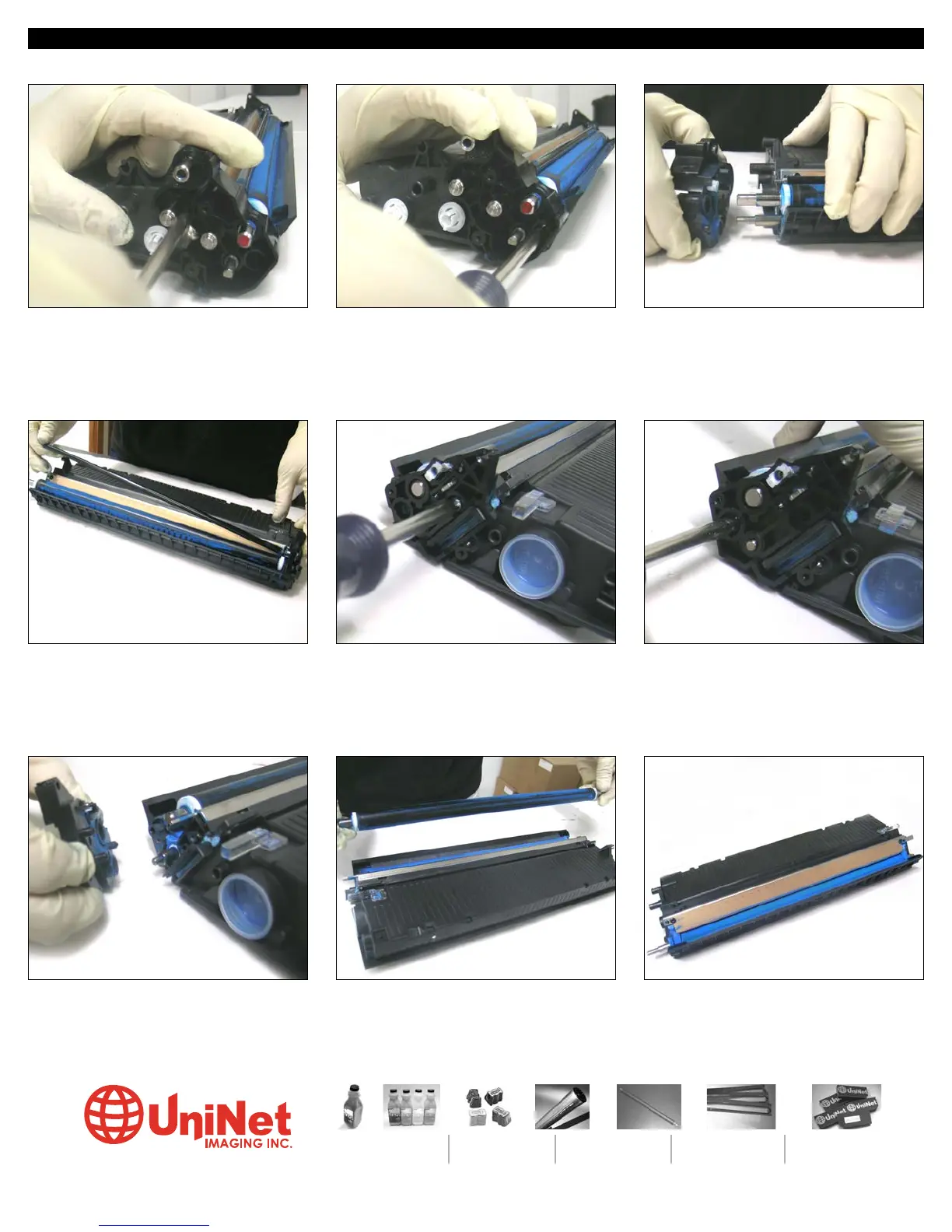

20. Once the gear side support plate is
removed, the toner charging roller should
be loosened for removal.
21. Now remove the roller support plate by removing the two screws as shown.
22. The roller support plate can now be
removed.
23. Now remove the developer roller and
set it aside.
24. Toner hopper front view with developer
roller and toner charging roller removed.
18. Remove the gear side support plate by removing the two screws as shown.
19. The support plate should now slide off
easily.
