UNINET IMAGING INC. • HP 5500 CARTRIDGE REMANUFACTURING INSTRUCTIONS

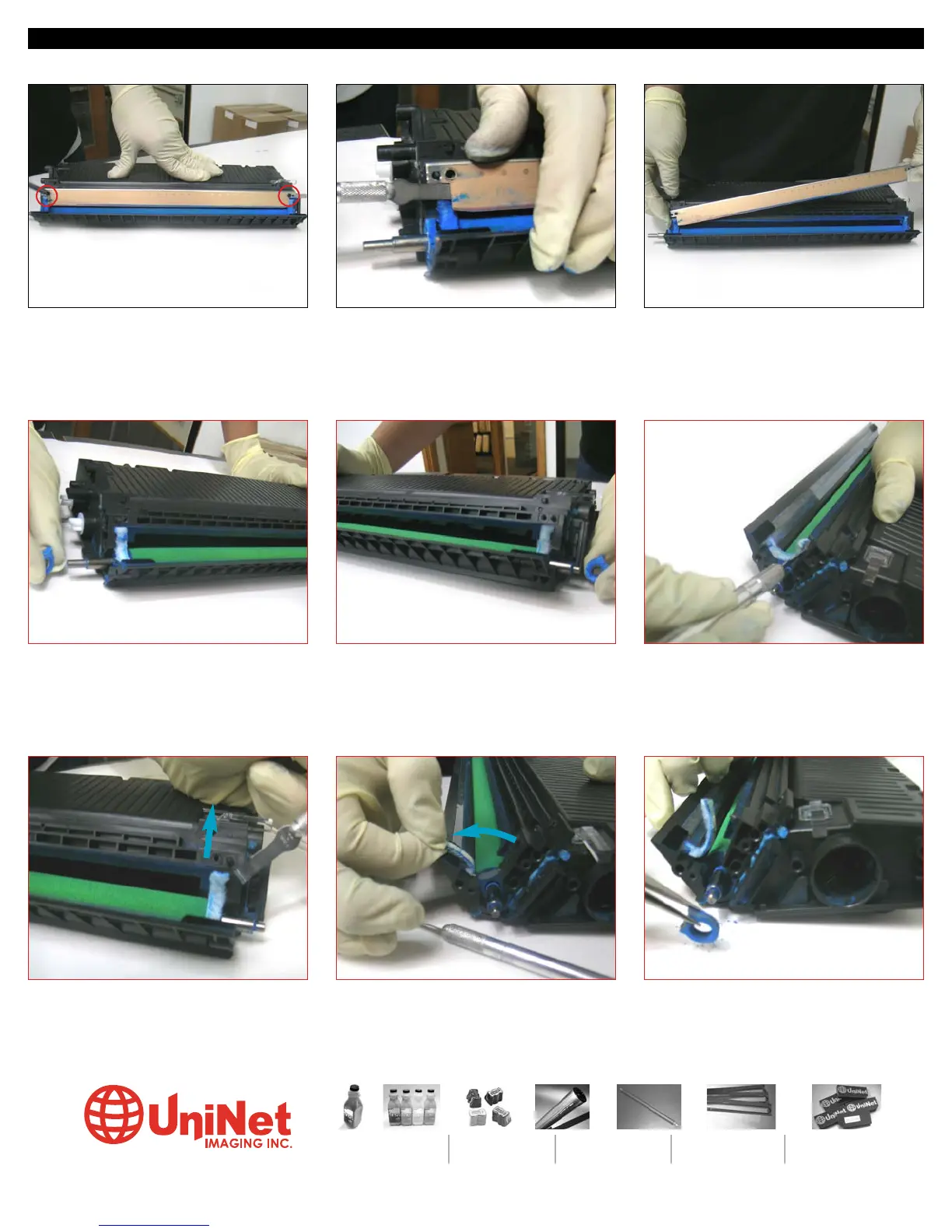

28. *REMOVING THE SUPPLY ROLLER.
Remove the felt o-rings from opposite ends of the supply roller as shown.
*NOTE: If you do NOT intend on changing the supply roller skip steps 28 - 32, 35 - 36.
29. Use a utility knife to carefully separate
the mag roller felt from the supply roller as
shown in the following steps.
30. 31. 32. Remove the rubber bearing that is
holding the supply roller in place.
26. Before removing the blade, you must
first cut it free from the foam seal that is
glued to it.
25. Remove the two screws on opposite
ends of the doctor blade as shown.
27. Blade removed.
