UNINET IMAGING INC. • HP 5500 CARTRIDGE REMANUFACTURING INSTRUCTIONS

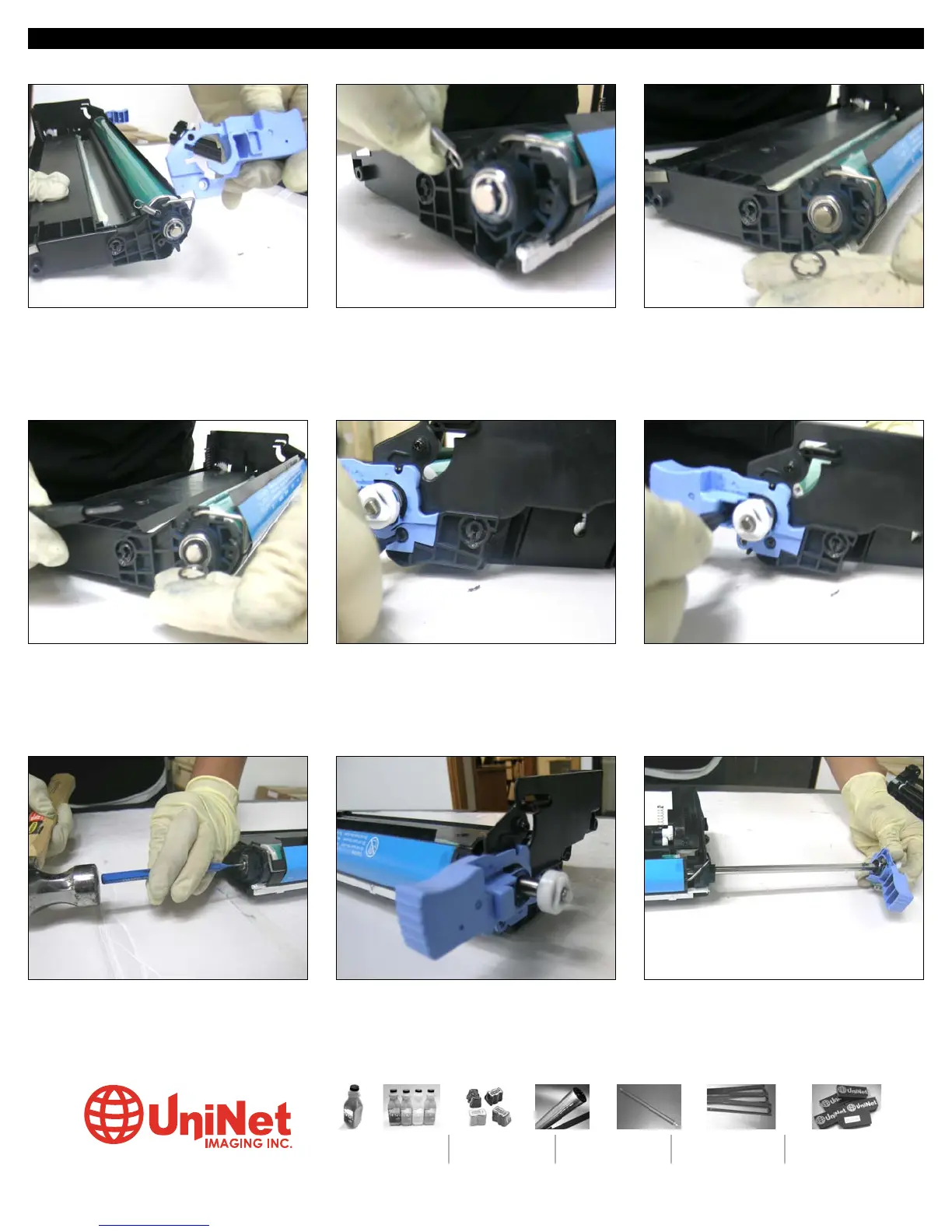

44. Then remove the brass ring as shown. 45. Remove the two screws on the cartridge installation handle at the opposite end as
shown.
46. Use a pin puncher tool and hammer to
loosen the drum axle inside. Punch in from
the gearless side.
47. The axle pops out on the other side. 48. Slide the axle out completely as shown.
42. Remove the spring.
41. Release the handle from the clip and
remove as shown.
43. Remove the drum retainer ring as
shown.
