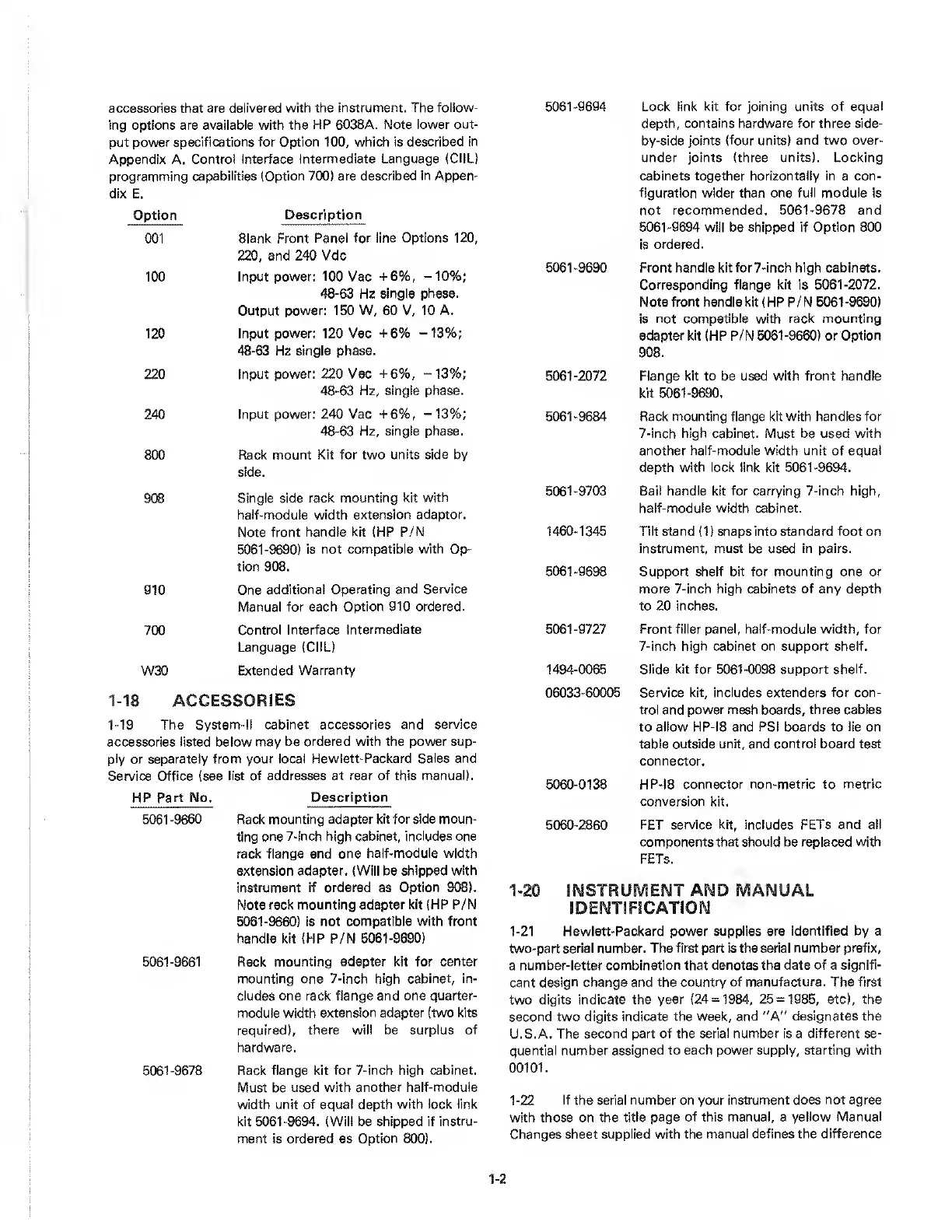

5061-9694
accessories
that
are
delivered
with
the
instrument.
The
follow¬
ing
options
are
available
with
the
HP
6038A.
Note
lower
out¬
put
power
specifications
for
Option
100,
which
is
described
in
Appendix
A.
Control
interface
Intermediate
Language
(CIIL)
programming
capabilities
(Option
700)
are
described
in
Appen¬
dix
E.
Option
Description
001
Blank
Front
Panel
for
line
Options
120,
220,
and
240
Vdc
100
Input
power:
100
Vac
+6%,
-10%;
4S-63
Hz
single
phase.
Output
power:
150
W,
60
V,
10
A.
120
Input
power:
120
Vac
4-6%
-13%;
48-63
Hz
single
phase.
220
Input
power:
220
Vac
+6%,
-13%;
48-63
Hz,
single
phase.
240
Input
power:
240
Vac
-i-6%,
-13%;
48-63
Hz,
single
phase.
800
Rack
mount
Kit
for
two
units
side
by
side.
908
Single
side
rack
mounting
kit
with
half-module
width
extension
adaptor.
Note
front
handle
kit
(HP
P/N
5061-9690)
is
not
compatible
with
Op¬
tion
908.
910
One
additional
Operating
and
Service
Manual
for
each
Option
910
ordered.
700
Control
Interface
Intermediate
Language
(CIIL)
W30
Extended
Warranty
1-18
ACCESSORIES
1-19
The
System-ll
cabinet
accessories
and
service
accessories
listed
below
may
be
ordered
with
the
power
sup¬
ply
or
separately
from
your
local
Hewlett-Packard
Sales
and
Service
Office
(see
list
of
addresses
at
rear
of
this
manual).
HP
Part
No.
Description
5061-9660
Rack
mounting
adapter
kit
for
side
moun¬
ting
one
7-inch
high
cabinet,
includes
one
rack
flange
and
one
half-module
width
extension
adapter.
(Wilt
be
shipped
with
instrument
if
ordered
as
Option
903).
Note
rack
mounting
adapter
kit
(HP
P/N
K)61-9660)
is
not
compatible
with
front
handle
kit
(HP
P/N
5061-9690)
5061-9661
Rack
mounting
adapter
kit
for
center
mounting
one
7-inch
high
cabinet,
in¬
cludes
one
rack
flange
and
one
quarter-
module
width
extension
adapter
(two
kits
required),
there
will
be
surplus
of
hardware.
5061-9678
Rack
flange
kit
for
7-inch
high
cabinet.
Must
be
used
with
another
half-module
width
unit
of
equal
depth
with
lock
link
kit
5061-9694.
(Will
be
shipped
if
instru¬
ment
is
ordered
as
Option
800).
Lock
link
kit
for
joining
units
of
equal
depth,
contains
hardware
for
three
side-
by-side
joints
(four
units)
and
two
over-
under
joints
(three
units).
Locking
cabinets
together
horizontally
in
a
con¬
figuration
wider
than
one
full
module
is
not
recommended.
5061-9678
and
5061-9694
will
be
shipped
if
Option
800
is
ordered.
5061
-9690
Front
handle
kit
for
7-inch
high
cabinets.
Corresponding
flange
kit
is
5061-2072.
Note
front
handle
kit
(HP
P/N
5061-9690)
Is
not
compatible
with
rack
mounting
adapter
kit
(HP
P/N
5061-9660)
or
Option
908.
5061-2072
Flange
kit
to
be
used
with
front
handle
kit
5061-9690.
5061
-9684
Rack
mounting
flange
kit
with
handles
for
7-inch
high
cabinet.
Must
be
used
with
another
half-module
width
unit
of
equal
depth
with
lock
link
kit
5061-9694.
5061-9703
Bail
handle
kit
for
carrying
7-inch
high,
half-module
width
cabinet.
1460-1345
Tilt
stand
(1)
snaps
into
standard
foot
on
instrument,
must
be
used
in
pairs.
5061-9698
Support
shelf
bit
for
mounting
one
or
more
7-inch
high
cabinets
of
any
depth
to
20
inches.
5061-9727
Front
filler
panel,
half-module
width,
for
7-inch
high
cabinet
on
support
shelf.
1494-0065
Slide
kit
for
5061-0098
support
shelf.
06033-60(X35
Service
kit,
includes
extenders
for
con¬
trol
and
power
mesh
boards,
three
cables
to
allow
HP-IB
and
PSI
boards
to
lie
on
table
outside
unit,
and
control
board
test
connector.
5060-0138
HP-IB
connector
non-metric
to
metric
conversion
kit.
5060-2860
FET
service
kit,
includes
FETs
and
all
components
that
should
be
replaced
with
FETs.
1-20
iNSTHUMENT
AND
MANUAL
IDENTIFSCATION
1-21
Hewlett-Packard
power
supplies
are
identified
by
a
two-part
serial
number.
The
first
part
is
the
serial
number
prefix,
a
number-letter
combination
that
denotes
the
date
of
a
signifi¬
cant
design
change
and
the
country
of
manufacture.
The
first
two
digits
indicate
the
year
(24=1984,
25
=
1985,
etc),
the
second
two
digits
indicate
the
week,
and
"A"
designates
the
U.S.A.
The
second
part
of
the
serial
number
is
a
different
se¬
quential
number
assigned
to
each
power
supply,
starting
with
00101
.
1-22
If
the
serial
number
on
your
instrument
does
not
agree
with
those
on
the
title
page
of
this
manual,
a
yellow
Manual
Changes
sheet
supplied
with
the
manual
defines
the
difference
1-2
