between your instrument and the instrument described by this
manual. The change sheet may also contain information for cor¬
recting errors in the manual.

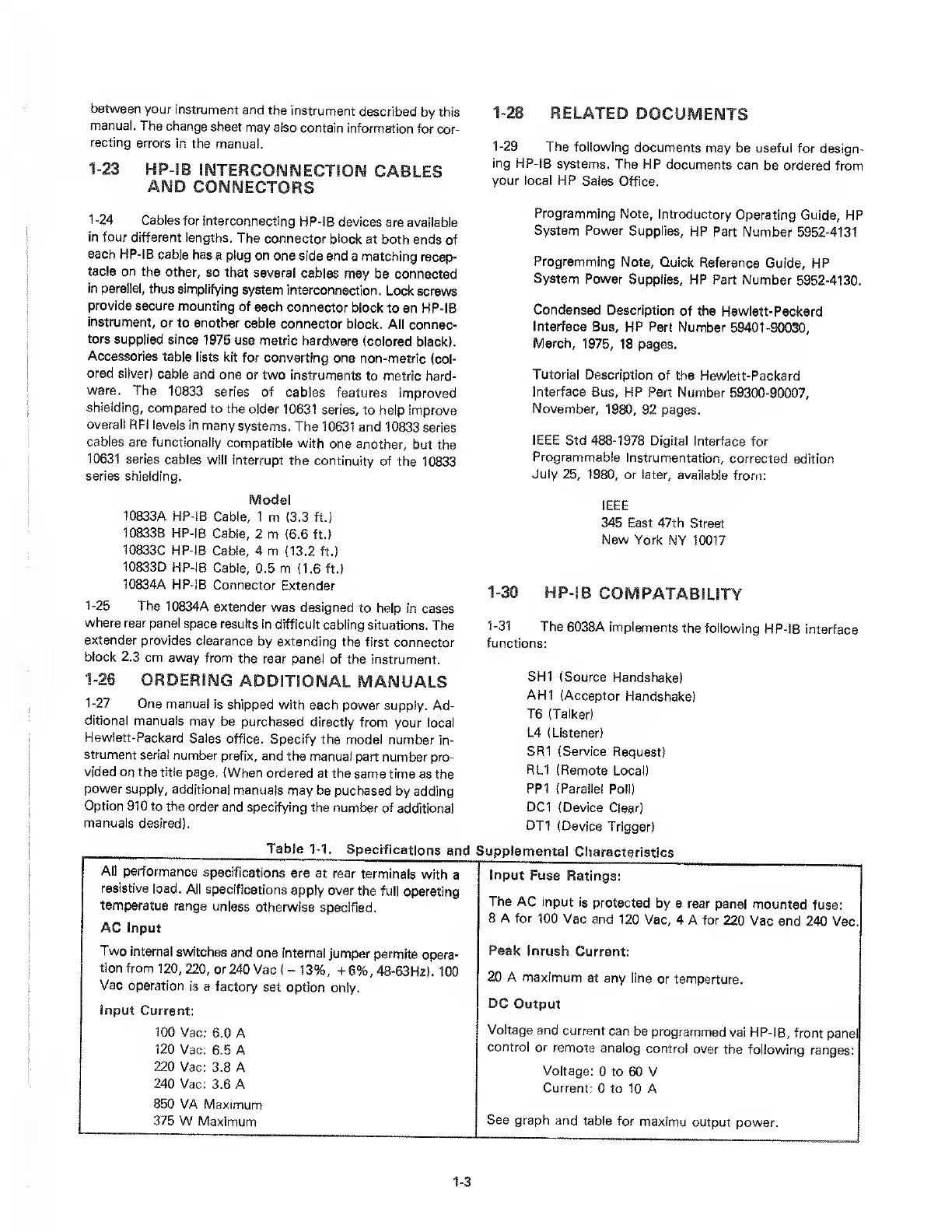

1-23 HP-3B INTERCOMISlECTiON CABLES
AND CONNECTORS
1-24 Cables for interconnecting HP-IB devices are available
in four different lengths. The connector block at both ends of
each HP-IB cable has a plug on one side and a matching recep¬
tacle on the other, so that several cables may be connected
in parallel, thus simplifying system interconnection. Lock screws
provide secure mounting of each connector block to an HP-IB
instrument, or to another cable connector block. Ail connec¬
tors supplied since 1975 use metric hardware (colored black).
Accessories table lists kit for converting one non-metric (col¬
ored silver) cable and one or two instruments to metric hard¬
ware. The 10833 series of cables features improved
shielding, compared to the older 10631 series, to help improve
overall RFI levels in many systems. The 10631 and 10833 series
cabies are functionally compatible with one another, but the
10631 series cables will interrupt the continuity of the 10833
series shielding.
Model
10833A HP-IB Cable, 1 m (3.3 ft.)
10833B HP-IB Cable, 2 m (6.6 ft.)
10833C HP-IB Cable, 4 m (13.2 ft.)
10833D HP-18 Cable, 0.5 m (1.6 ft.)
10834A HP-IB Connector Extender
1-25 The 10834A extender was designed to help in cases
where rear panel space results in difficult cabling situations. The
extender provides clearance by extending the first connector
block 2.3 cm away from the rear panel of the instrument.
1-26 ORDERING ADDITIONAL IViANUALS
1-27 One manual is shipped with each power supply. Ad¬
ditional manuals may be purchased directly from your local
Hewiett-Packard Sales office. Specify the model number in¬
strument serial number prefix, and the manual part number pro¬
vided on the title page. (When ordered at the same time as the
power supply, additional manuals may be puchased by adding
Option 910 to the order and specifying the number of additional
manuals desired).
1-28 RELATED DOCUI^ENTS
1-29 The following documents may be useful for design¬
ing HP-IB systems. The HP documents can be ordered from
your local HP Sales Office.
Programming Note, Introductory Operating Guide, HP
System Power Supplies, HP Part Number 5952-4131
Programming Note, Quick Reference Guide, HP
System Power Supplies, HP Part Number 5952-4130.
Condensed Description of the Hewlett-Packard
Interface Bus, HP Part Number 59401-90030,
March, 1975, 18 pages.
Tutorial Description of the Hewlett-Packard
interface Bus, HP Part Number 59300-9(X)07,
November, 1980, 92 pages.
IEEE Std 488-1978 Digital Interface for
Programmable Instrumentation, corrected edition
July 25, 1980, or later, available from:
IEEE
345 East 47th Street
New York NY 10017
1-30 HP-IB COMPATABILtTY
1-31 The 6038A implements the following HP-IB interface
functions:
SHI (Source Handshake)
AH1 (Acceptor Handshake)
T6 (Talker)
L4 (Listener)
SR1 (Service Request)
RL1 (Remote Local)
PP1 (Parallel Poll)
DC1 (Device Clear)
DTI (Device Trigger)
__ Table 1-1. Specifications and
All performance specifications are at rear terminals with a
resistive load. All specifications apply over the full operating
temperatue range unless otherwise specified.
AC Input
Two internal switches and one internal jumper permite opera¬
tion from 120,220, or 240 Vac (- 13%, -f 6%, 48-63Hz). 100
Vac operation is a factory set option only.
Input Current:
100 Vac: 6.0 A
120 Vac; 6.5 A
220 Vac; 3.8 A
240 Vac: 3,6 A
850 VA Maximum
375 W Maximum
Supplemental Chara cteristics
Input Fuse Ratings:
The AC input is protected by a rear panel mounted fuse:
8 A for 100 Vac and 120 Vac, 4 A for 220 Vac and 240 Vac.
Peak Inrush Current:
20 A maximum at any line or temperture.
DC Output
Voltage and current can be programmed vai HP-IB, front panel
control or remote analog control over the following ranges:
Voltage: 0 to 60 V
Current: 0 to 10 A
See graph and table for maximu output power.
