SECTION II
INSTALLATION
2-2 Before shipment, this instrument was inspected
and found to be free of mechanical and electrical defects.
As soon as the instrument is unpacked, inspect for any
damage that may have occurred in transit. Save all packing
materials until the inspection is completed. If damage is
found, file claim with carrier immediately. The Hewlett-
Packard Sales and Service office should be notified as soon
as possible.
2-4 This check should confirm that there are no broken
knobs or connectors, that the cabinet and panel surfaces
are free of dents and scratches, and that the meter is not
scratched or cracked.
2-6 The instrument should be checked against its elec
trical specifications. Section V includes an "in-cabinet" per-
formance check to verify proper instrument operation.
2-8 The instrument is shipped ready for bench
operation. Before applying power to the instrument, see
the CAUTION notice in paragraph 3-2.
2-10 This instrument is air cooled. Sufficient space
should be allotted so that a free flow of cooling air can
reach the rear of the instrument when it is in operation. It
should be used in an area where the ambient temperature
does not exceed 40°C (up to 55°C with derating).

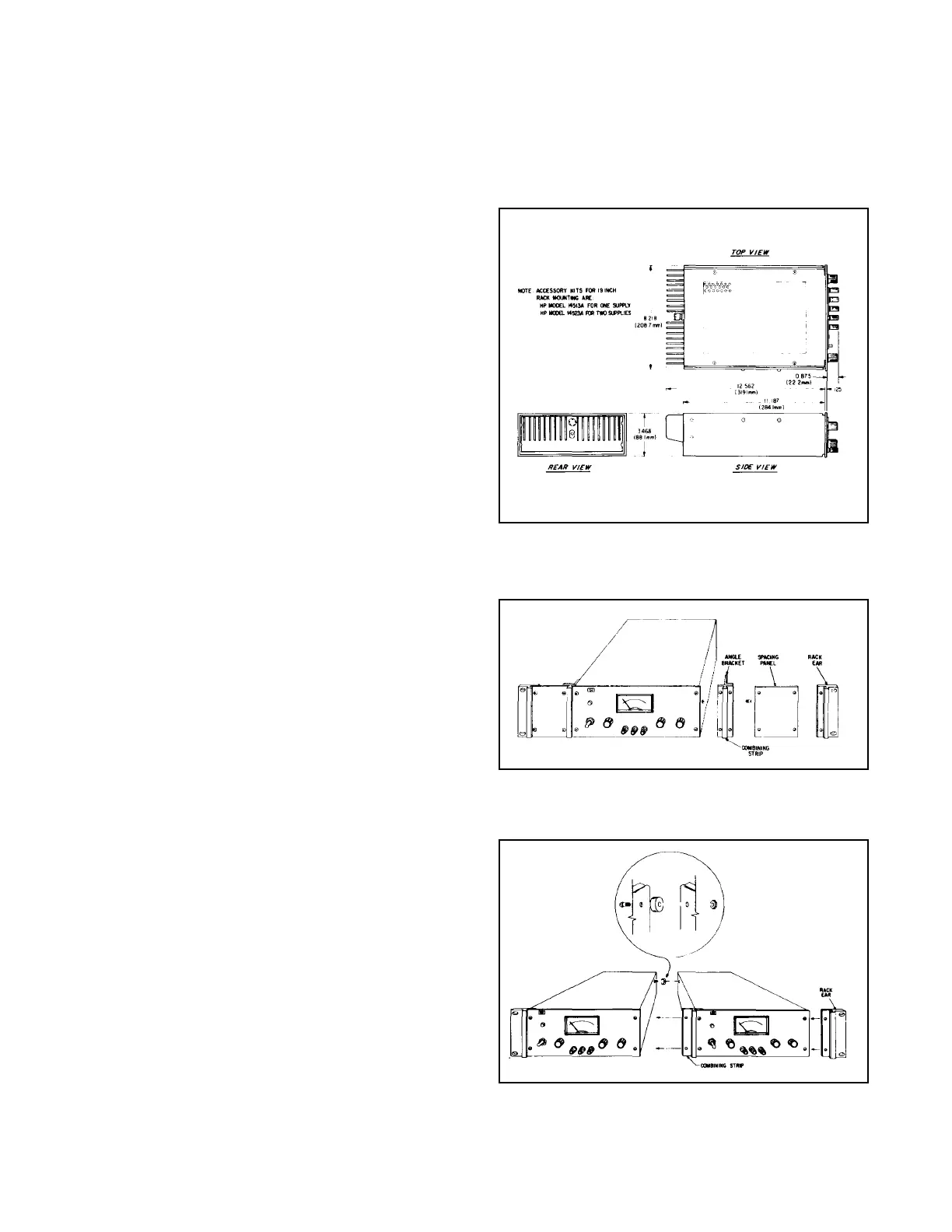

2-12 Figure 2-1 illustrates the outline shape and dimen-
sions of this supply.
2-14 This instrument may be rack mounted in a standard
19-inch rack panel either by itself or alongside a similar
unit. Figures 2-2 and 2-3 show the components of the rack
mounting kits available for this power supply. Ordering
information for rack mounting accessories is given in para-
graph 1-14.
2-1
2-1 INITIAL INSPECTION
2-3 Mechanical Check
2-5 Electrical Check
2-7 INSTALLATION DATA
2-9 Location
2-11 Outline Diagram
2-13 Rack Mounting
Figure 2-3. Rack Mounting, Two Units
Figure 2-2. Rack Mounting, One Unit
Figure 2-1. Outline Diagram
