HP 6710b - Compaq Business Notebook User Manual

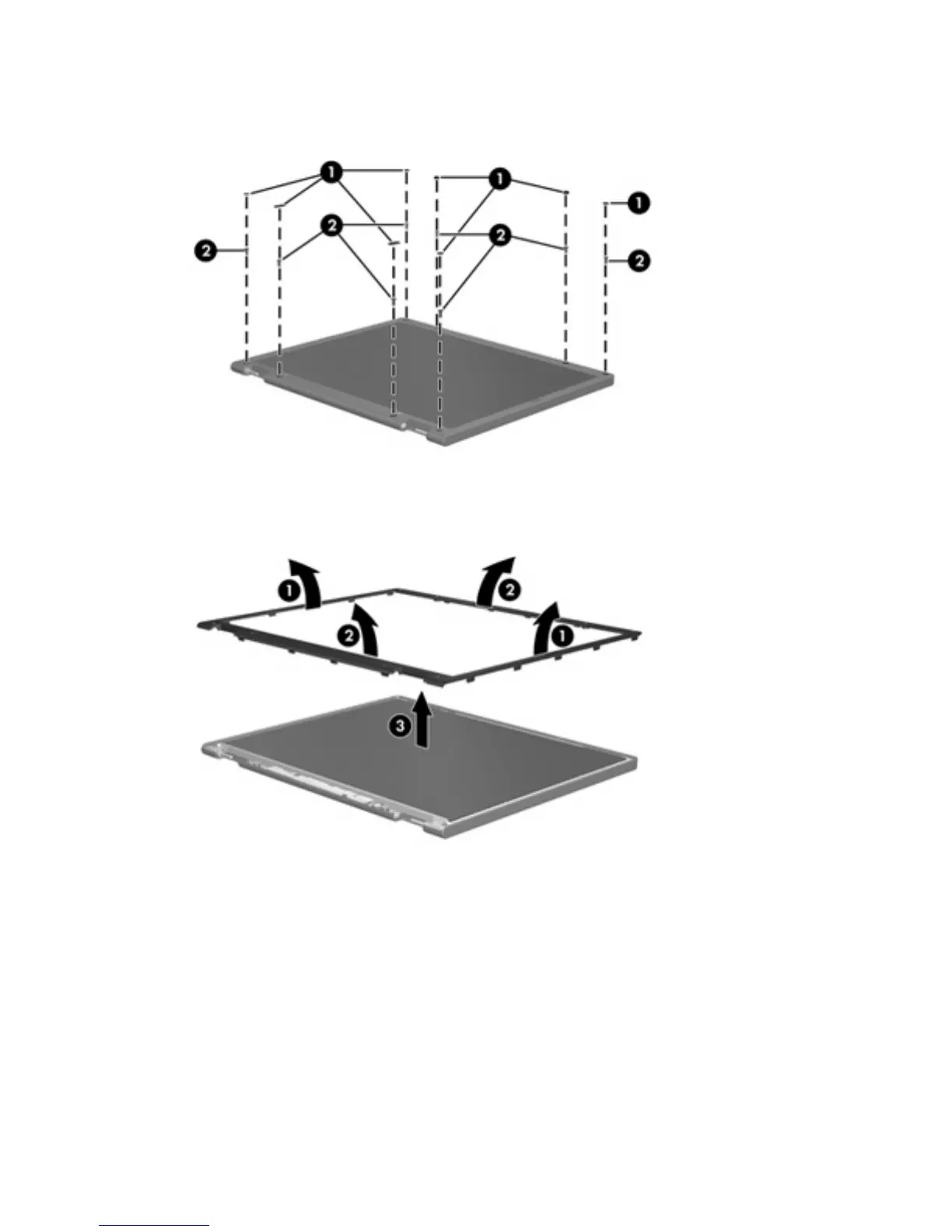

Perform the following steps to disassemble the display assembly:
1. Remove all screw covers (1) and screws (2) that secure the display bezel to the display assembly.
2. Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of the
display bezel until the bezel disengages from the display assembly.
3. Remove the display bezel (3).
152 Chapter 11 Recycling

HP 6710b - Compaq Business Notebook Specifications

General

Processor	Intel Core 2 Duo
Display	15.4-inch
RAM	Up to 4 GB DDR2
Battery	6-cell Lithium-Ion
Wireless	802.11a/b/g
Graphics	Intel GMA X3100
Optical Drive	DVD+/-RW
Operating System	Windows Vista Business
Weight	2.7 kg
Chipset	Mobile Intel GM965 Express
Network	10/100/1000 Gigabit Ethernet
Ports	RJ-45
Display Resolution	1280x800 (WXGA)
Storage	80/120/160 GB
