HP 6710b - Compaq Business Notebook User Manual

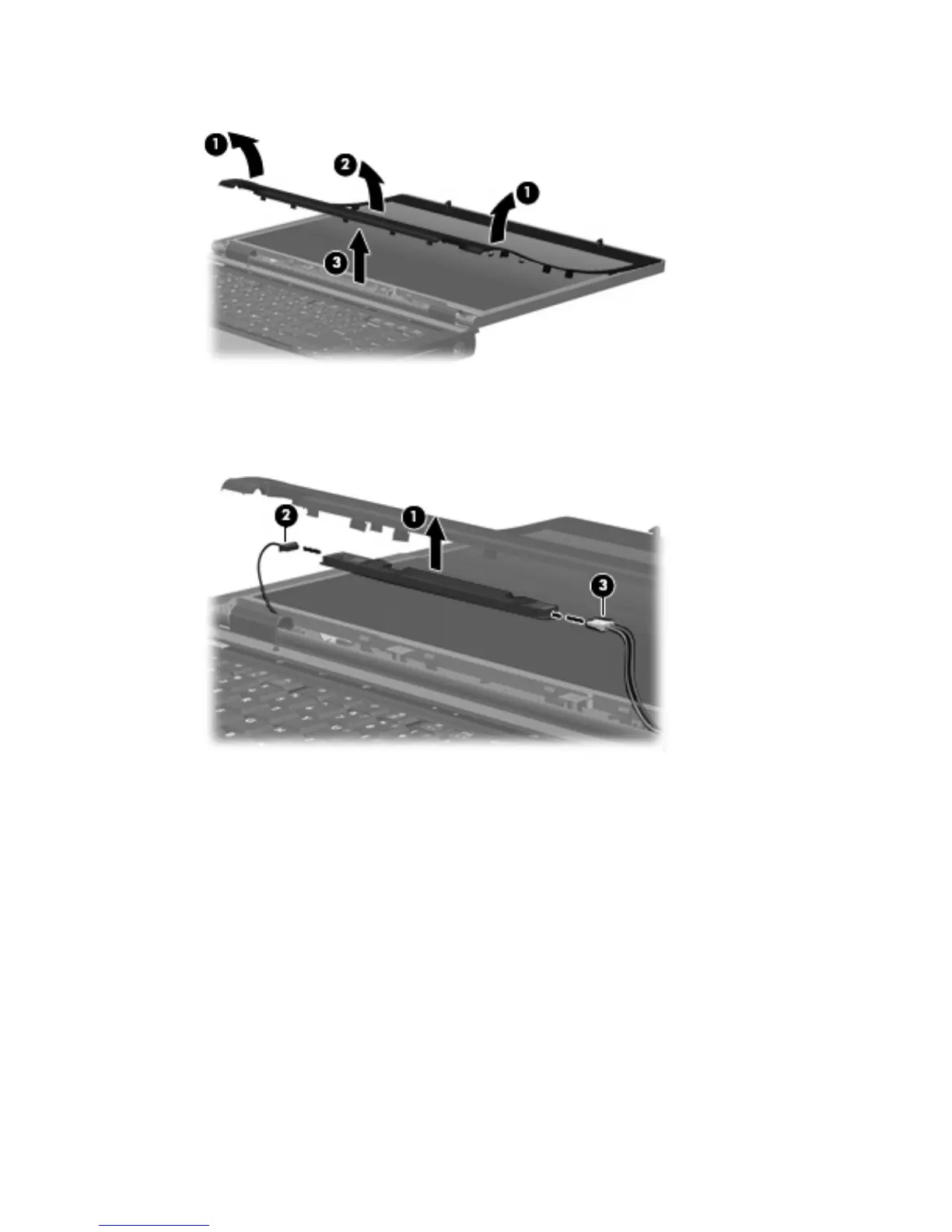

6. Release the bottom edge of the display bezel (3) from the display assembly.
7. Release the inverter (1) from the display enclosure as far as the display panel cable and backlight
cable allow.
8. Disconnect the display panel cable (2) and the backlight cable (3) from the display inverter.
9. Remove the display inverter.
Reverse this procedure to install the display inverter.
Component replacement procedures 51

HP 6710b - Compaq Business Notebook Specifications

General

Processor	Intel Core 2 Duo
Display	15.4-inch
RAM	Up to 4 GB DDR2
Battery	6-cell Lithium-Ion
Wireless	802.11a/b/g
Graphics	Intel GMA X3100
Optical Drive	DVD+/-RW
Operating System	Windows Vista Business
Weight	2.7 kg
Chipset	Mobile Intel GM965 Express
Network	10/100/1000 Gigabit Ethernet
Ports	RJ-45
Display Resolution	1280x800 (WXGA)
Storage	80/120/160 GB
