6. Remove the switch cover (see Switch cover on page 70).

7. Remove the fan (see

Fan on page 71).

8. Remove the heat sink (see

Heat sink on page 72).

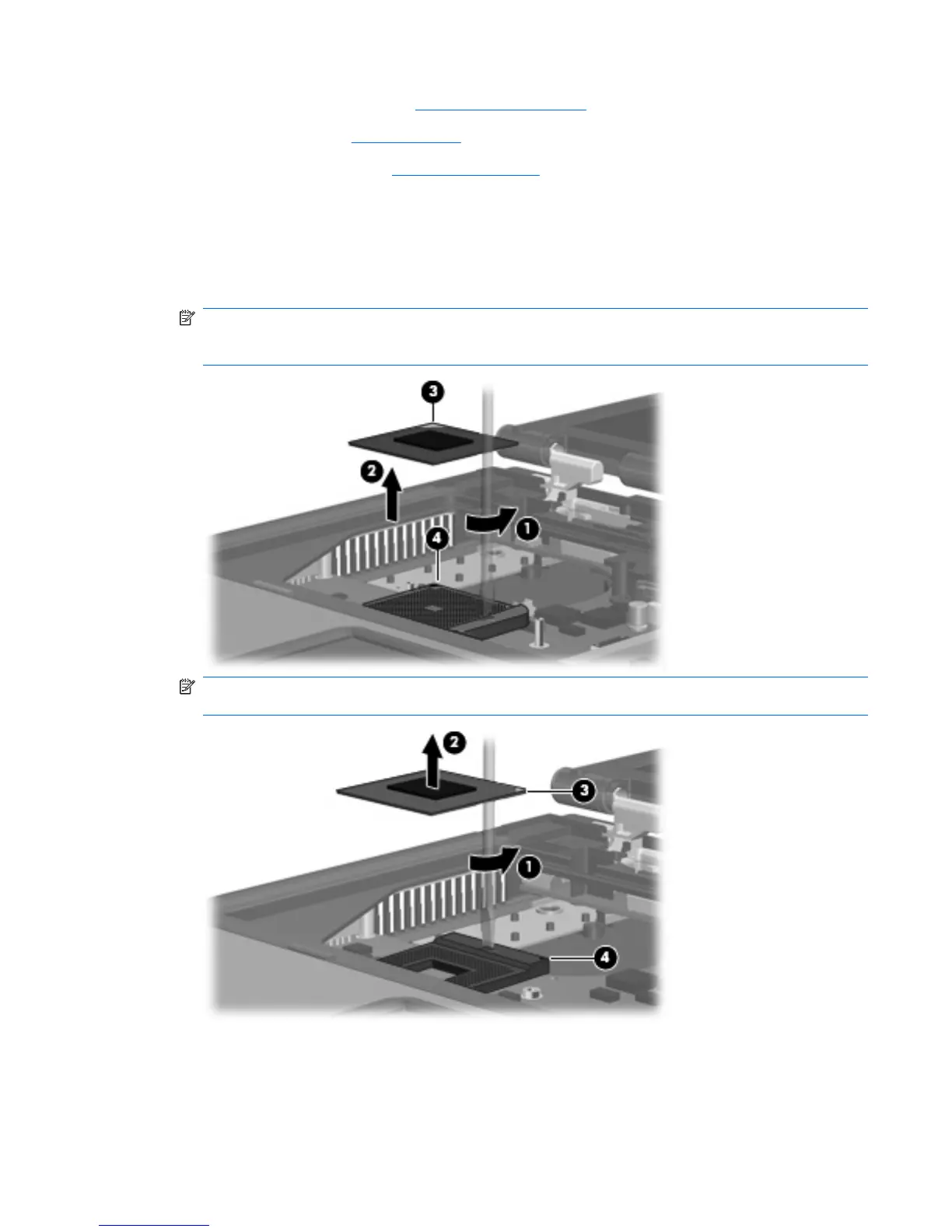

Remove the processor:

1. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn counterclockwise

until you hear a click.

2. Lift the processor (2) straight up and remove it.

NOTE: The gold triangle (3) on the processor must be aligned with the triangle (4) embossed on

the processor slot when you install the processor. The illustration below shows the processor

removal steps for the HP Compaq 6715 computer model.

NOTE: The illustration below shows the processor removal steps for the HP Compaq 6710

computer model.

Reverse this procedure to install the processor.

Component replacement procedures 75
