HP 70000 series - Interpreting Measurement Results; Common Measurement Indicators

Interpreting
Measurement
Results
The
annotation
on
the
display
describes
the
progress
and parameters of your measurements.
Figure
1-6
describes
the
annotation
that
is
displayed
during most measurement procedures.
Figure
1-7
describes
additional
display
annotation
that
is
unique to a lightwave signal
analyzer
.
Figure
1-8
describes
auxiliary
measurement indicators.
A
description
of
each
annotation is listed alphabetically, following the related illustration.
Common Measurement Indicators

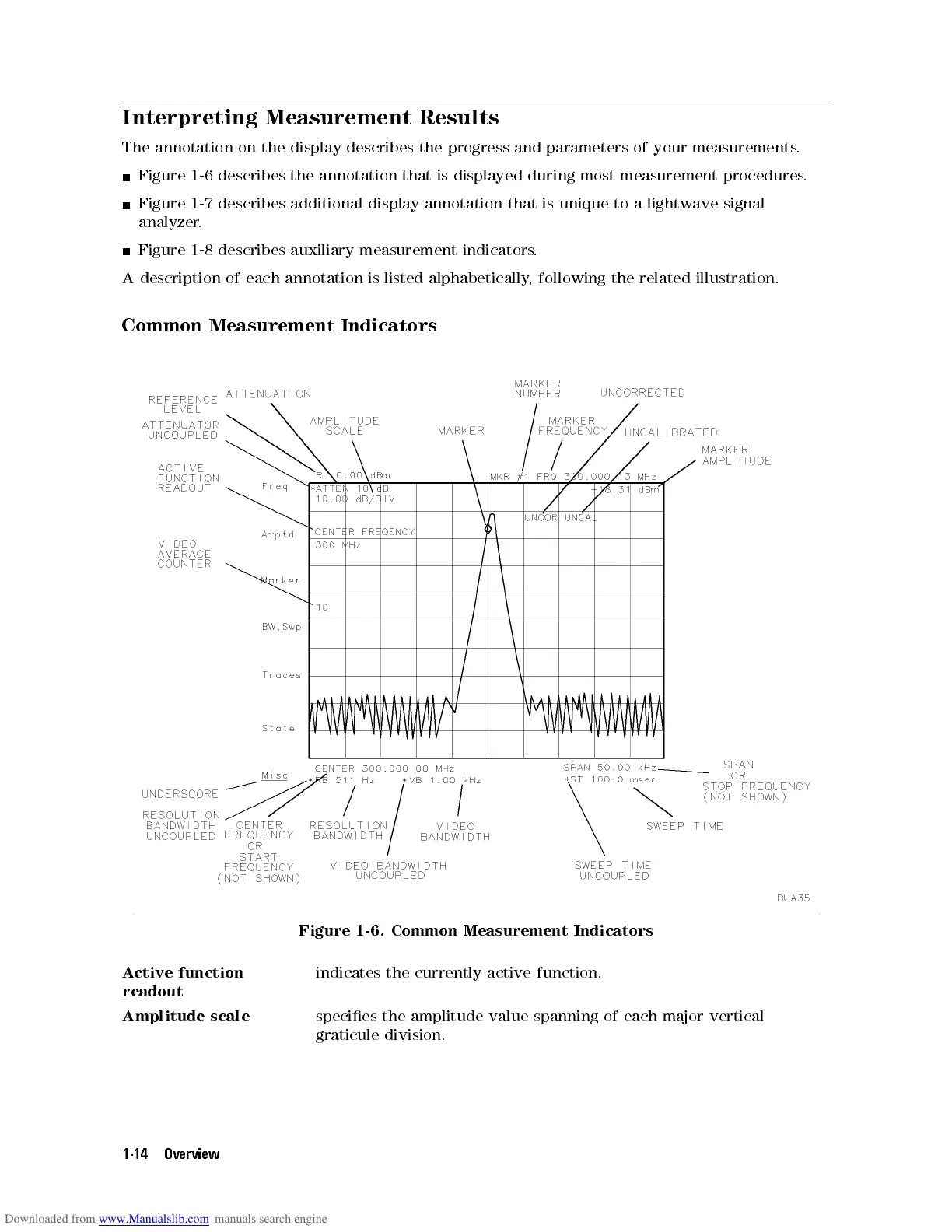

Figure 1-6. Common Measurement Indicators
Active function
readout
indicates the currently active function.
Amplitude scale species the amplitude value spanning of each major vertical
graticule division.
1-14 Overview
