Page #254 background image
PROCESSOR
TEST
TIMER
TEST
ROM TEST
RAM
TEST
MARKER/BX
RAM
I/O
DATA
BUS TEST
I/O
ADDRESS
BUS
TEST
DISPLAY FAILURE
DISPLAY
FAULTY ADDRESS
BITS
DISPLAY
FAULTY
DATA BITS
TURN
ON
CHECK LEDS
SEE
TABLE
F-3

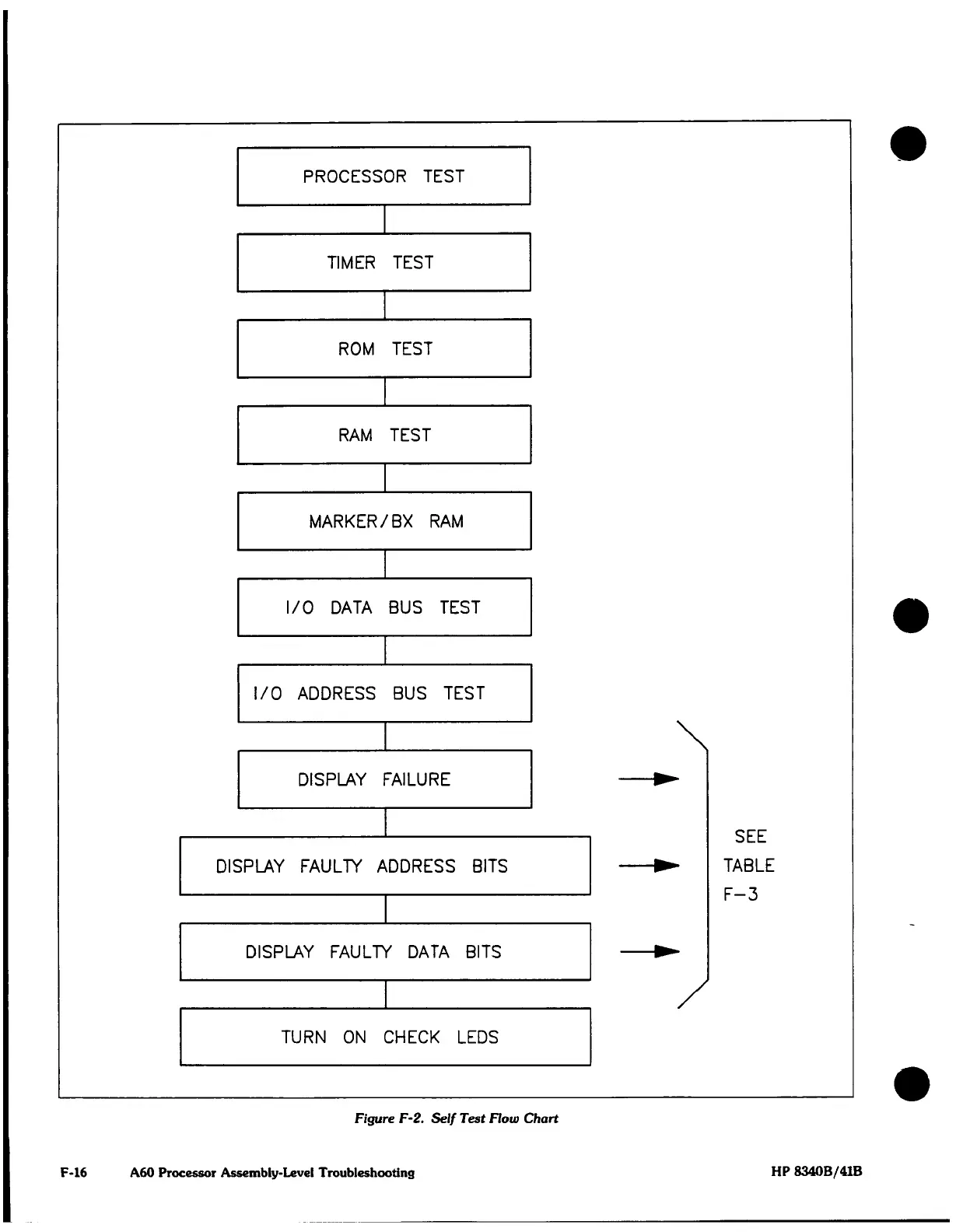

Figure
F-2.
Self
Test
Flow
Chart
F-16
A60
Processor
Assembly-Level Troubleshooting
HP
8340B/41B
