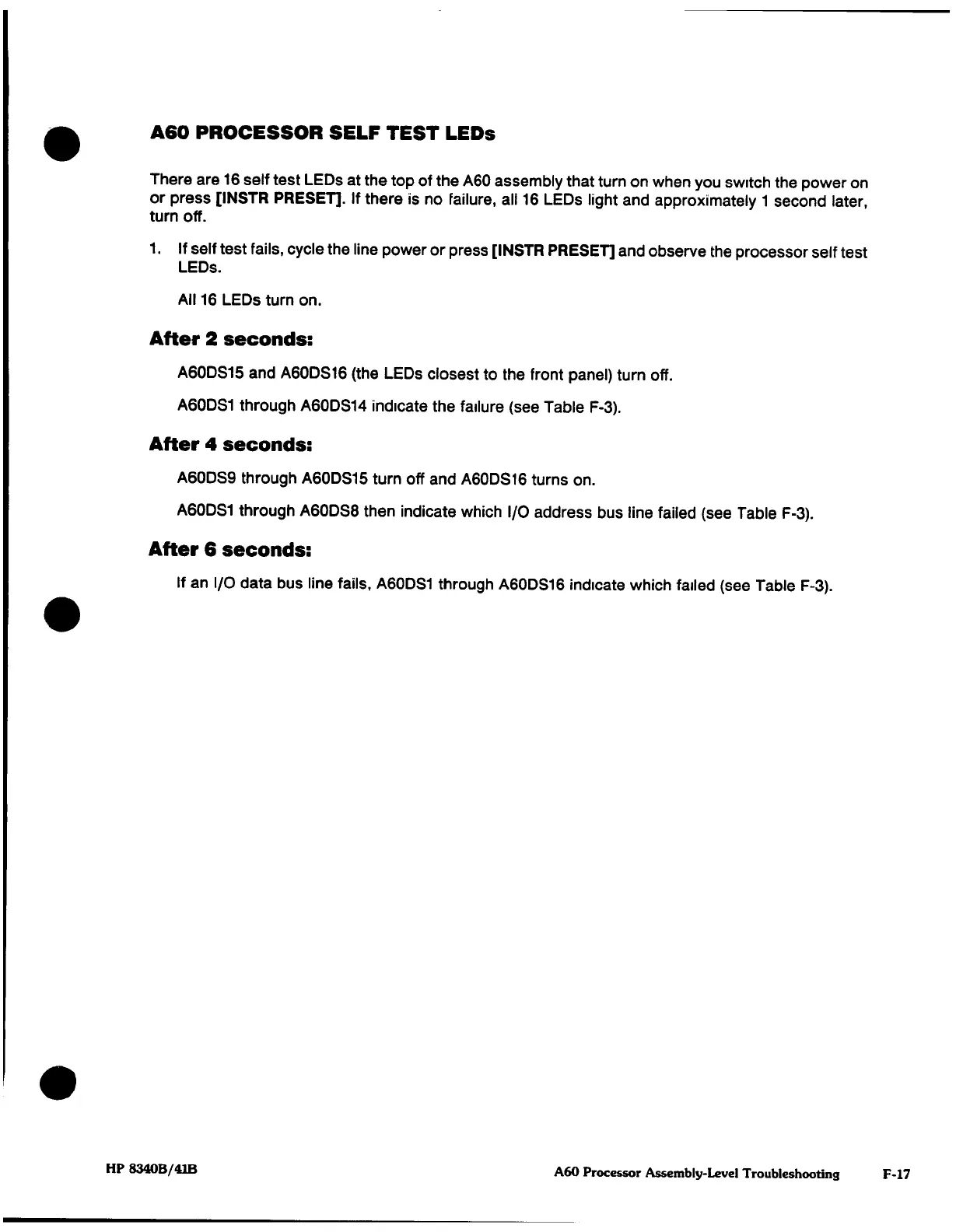

A60
PROCESSOR
SELF TEST LEDs
There
are
16
self
test
LEDs
at the
top
of the
A60
assembly
that
turn
on
when
you
switch
the
power
on
or press
[INSTR
PRESET].
If
there
is
no
failure,
all
16
LEDs
light
and
approximately
1
second
later,
turn off.
1.
If
self
test
fails,
cycle
the
line
power
or
press
[INSTR
PRESET]
and
observe
the
processor
self test
LEDs.
All
16
LEDs
turn
on.
After
2
seconds:
A60DS15
and
A60DS16
(the
LEDs
closest
to the
front panel)
turn
off.
A60DS1
through
A60DS14
indicate the failure
(see
Table
F-3).
After
4
seconds:
A60DS9
through
A60DS15
turn
off
and
A60DS16
turns
on.
A60DS1
through
A60DS8
then
indicate
which
I/O
address bus
line
failed
(see
Table
F-3).
After
6
seconds:
If
an
I/O
data
bus
line
fails,
A60DS1
through
A60DS16
indicate
which
failed
(see
Table
F-3).
HP
8340B/41B
A60
Processor Assembly-Level Troubleshooting F-17
