OVERALL
INSTRUMENT
TROUBLESHOOTING
The
following
diagram
indicates
the
proper
sequence
to
fol¬
low to
isolate
specific
symptoms.
Each
of
these
is
described
in
detail
in the following
pages.
Several
catego¬
ries
make references
to
the
front
and
rear
panel
items
shown
in
Figure
A-9
on
the facing
page.

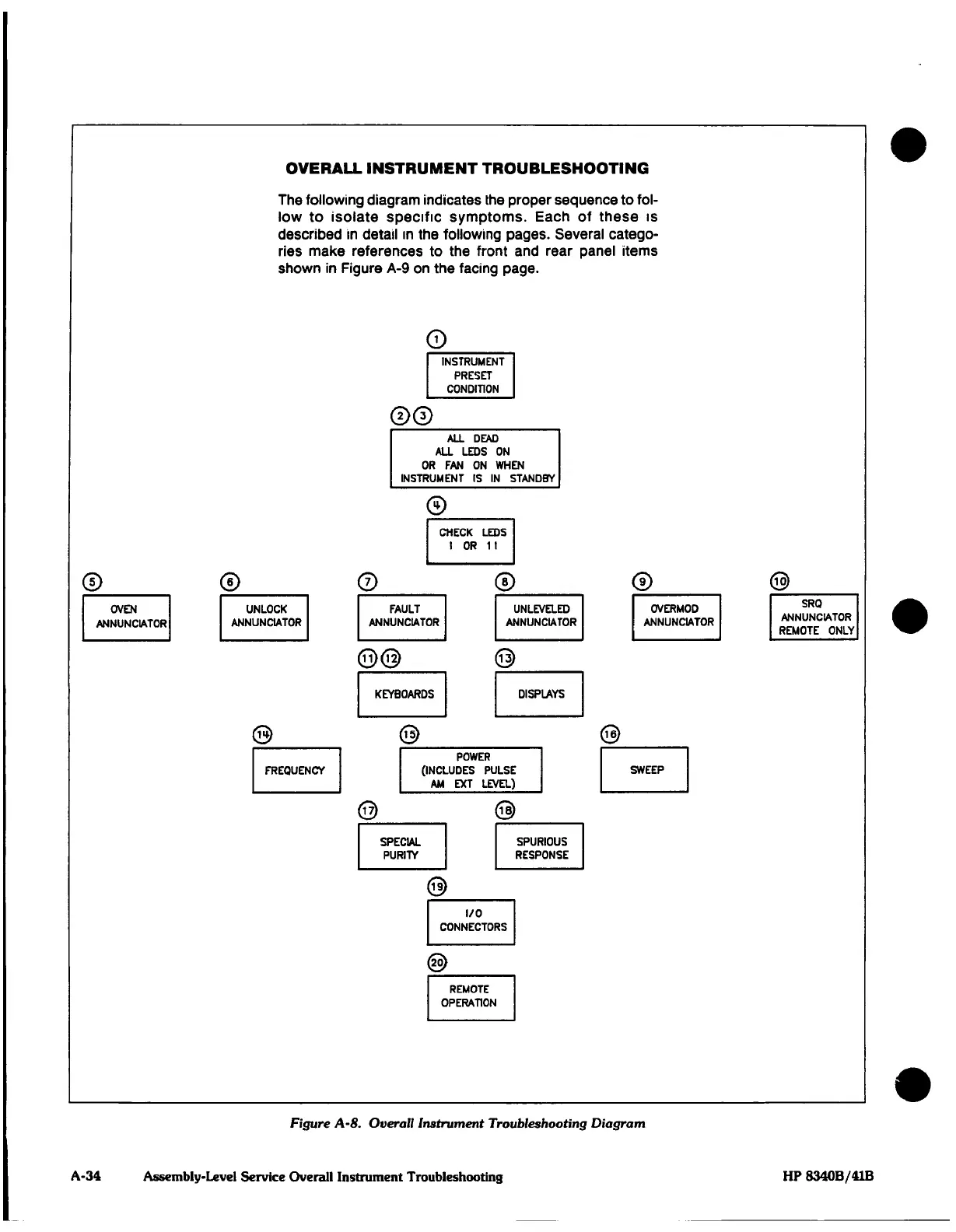

Figure
A-8.
Overall
Instrument
Troubleshooting
Diagram
A-34
Assembly-Level
Service
Overall
Instrument
Troubleshooting
