Modei8555A
General Information

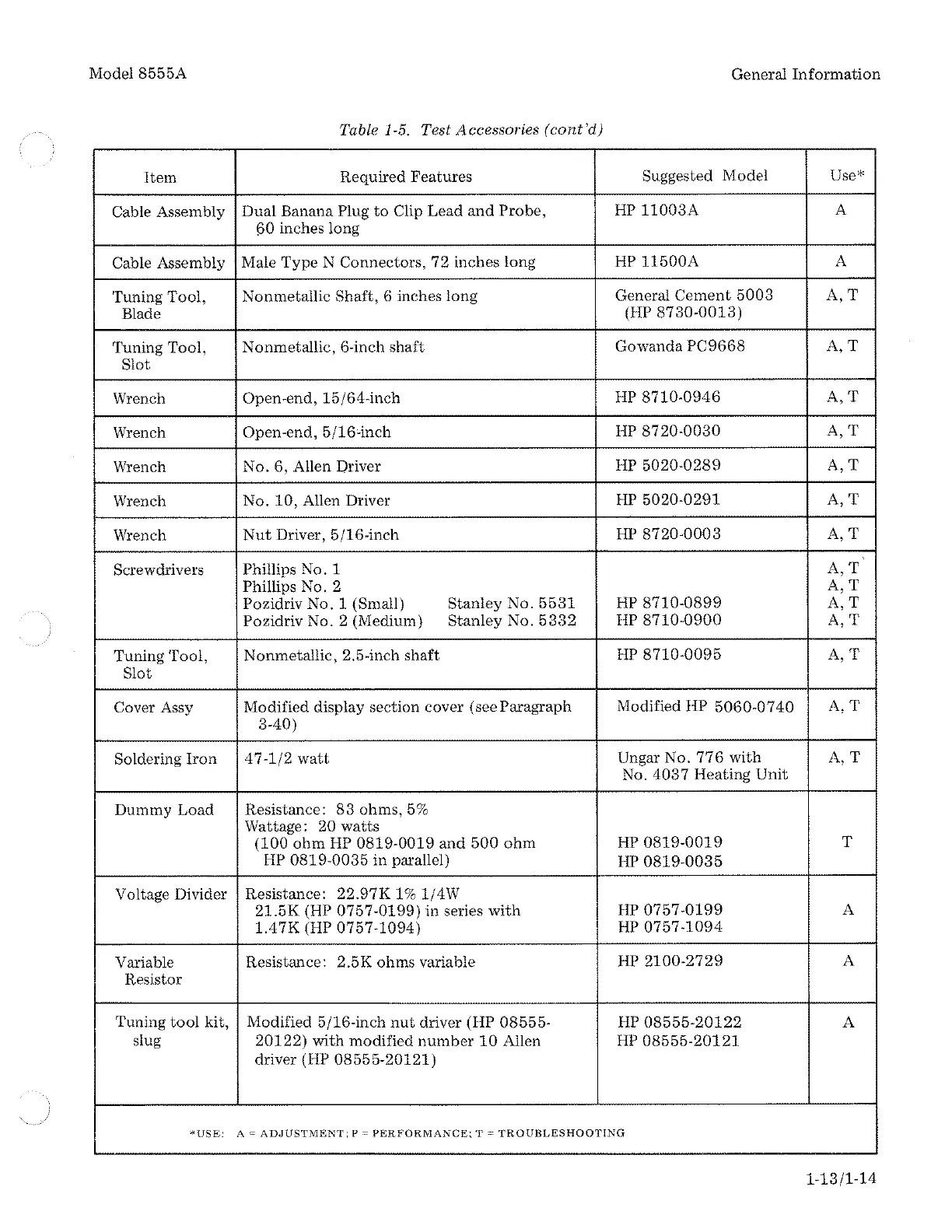

Table 1-5. Test Accessories (cont'd)
Item
Required Features
Suggested
Model Use*
Cable
Assembly
Dual Banana Plug to Clip Lead and Probe,
HP 11003A
A
60 inches long
Cable Assembly
Male
Type N Connectors, 7 2 inches long
HP 11500A A
Tuning
Tool,
Nonmetallic Shaft, 6 inches long
General
Cement 5003 A,T
Blade
(HP 8730-0013)
Tuning Tool,
Nonmetallic, 6-inch
shaft
Gowanda PC9668 A,T
Slot
Wrench
Open-end, 15/64-inch
HP 8710-0946 A,T
Wrench
Open-end, 5/16cinch
HP 8720-0030
A,T
Wrench
No.6, Allen Driver
HP 5020-0289 A,T
Wrench
No. 10, Allen Driver
HP 5020-0291 A,T
Wrench
Nut Driver, 5/16-inch
HP 8720-0003 A,T
Screwdrivers
Phillips No. 1
A,T
Phillips No. 2
A,T
Pozidriv No.1 (Small)
Stanley No. 5531
HP 8710-0899 A,T
Pozidriv No. 2 (Medium) Stanley No. 5332
HP 8710-0900 A,T
Tuning Tool,
Nonmetallic, 2.5-inch shaft
HP 8710-0095 A,T
Slot
Cover
Assy
Modified display section cover (see
Paragraph Modified HP 5060-07 40
A,T
3-40)
Soldering
Iron 47-1/2 watt
Ungar No. 776 with A,T
No. 403 7 Heating Unit
Dummy Load Resistance: 83 ohms, 5%
Wattage: 20 watts
(100 ohm HP 0819-0019 and 500 ohm
HP 0819-0019 T
HP
0819-0035 in parallel)
HP 0819-003 5
Voltage Divider
Resistance:
22.97K 1% 1/4W
21.5K (HP 0757-0199) in series with
HP 0757-0199
A
1.47K (HP 0757-1094)
HP 0757-1094
Variable
Resistance:
2.5K ohms variable
HP 2100-2729 A
Resistor
Tuning
tool kit,
Modified 5/16-inch
nut driver (HP 08555- HP 08555-20122 A
slug
20122) with modified number 10 Allen HP 08555-20121
driver (HP 08555-20121)
«USE: A= ADJUSTMENT: P"" PERFORMANCE~ T =TROUBLESHOOTING
1-13/1-14
