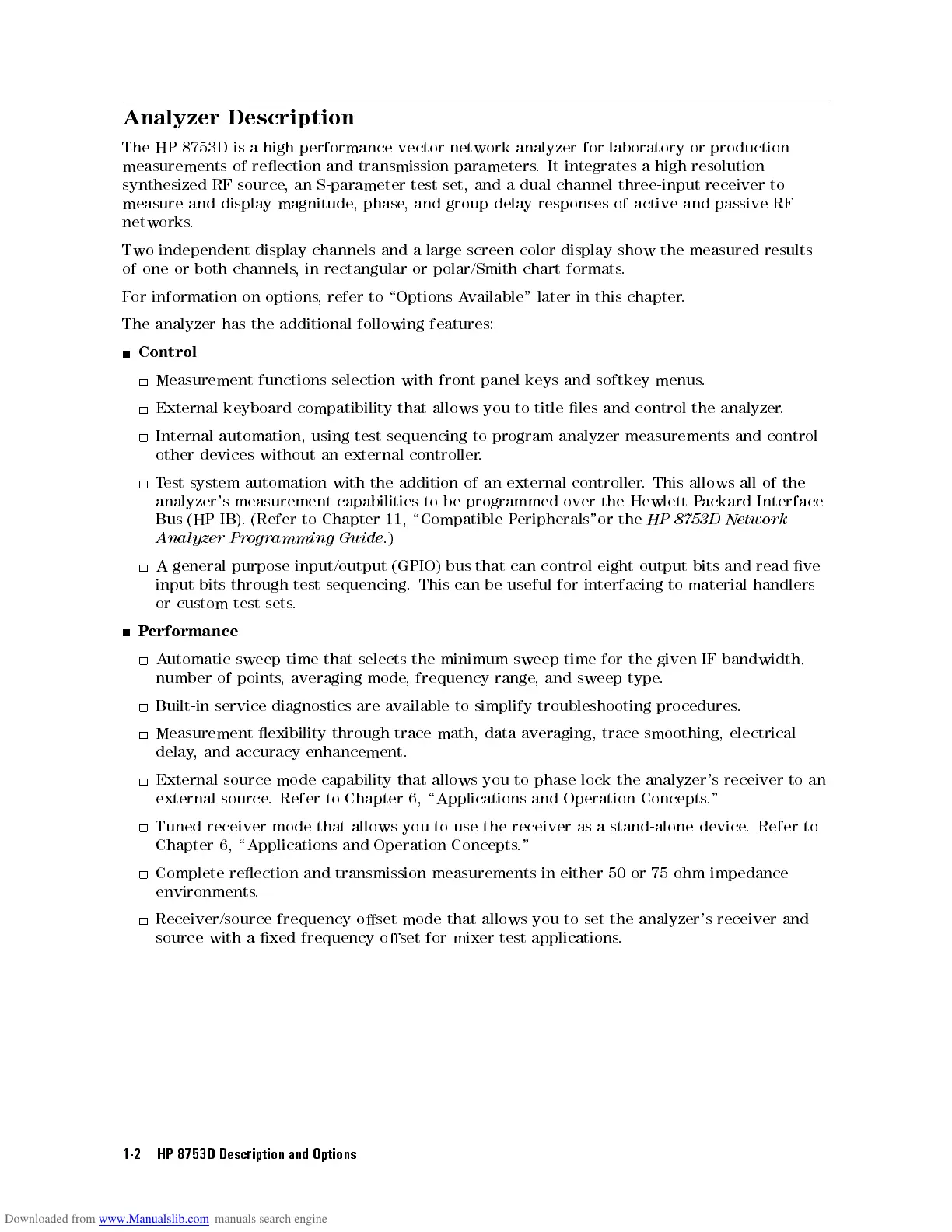

Analyzer Description
The
HP
8753D
is
a high
performance vector
network analyzer
for laboratory
or production
measurements
of
reection
and
transmission
parameters
.It
integrates a
high resolution
synthesized
RF
source
,
an
S-parameter
test set,
and a
dual channel
three-input receiver
to
measure
and
display
magnitude
,
phase
,and
group delay
responses of
active and
passive RF
networks
.
Two
independent
display
channels
and
a
large screen
color display
show the
measured
results
of
one
or
both
channels
,
in rectangular
or polar/Smith
chart formats
.
F
or
information
on
options
,
refer to
\Options A
vailable" later
in
this
chapter
.
The
analyzer
has the
additional following
features:
Control
Measurement
functions
selection with
front panel
keys and
softkey menus
.
External
keyboard
compatibility that
allows you
to title
les and
control
the
analyzer
.
Internal
automation,
using
test
sequencing
to
program analyzer
measurements
and
control
other
devices
without
an
external
controller
.
T
est
system
automation
with
the
addition
of
an
external
controller
.
This
allows
all
of
the
analyzer's
measurement
capabilities
to
be
programmed
over
the
Hewlett-P
ackard
Interface
Bus
(HP-IB).
(Refer
to
Chapter
11,
\Compatible
P
eripherals"or
the
HP 8753D
Network
Analyzer
Programming
Guide
.)
A
general
purpose
input/output
(GPIO)
bus
that
can
control
eight
output
bits
and read
ve
input
bits
through
test
sequencing.
This
can
be
useful
for
interfacing
to
material handlers
or
custom
test
sets
.
P
erformance
A
utomatic
sweep
time
that
selects
the minimum
sweep
time
for
the
given
IF
bandwidth,
number
of
points
,
averaging
mode
, frequency
range,
and
sweep
type
.
Built-in
service
diagnostics
are
available
to
simplify troubleshooting
procedures.
Measurement exibility
through trace
math,
data
averaging,
trace
smoothing,
electrical
delay,
and accuracy
enhancement.
External source
mode capability
that allows
you
to
phase
lock
the
analyzer's
receiver
to
an
external source
.Refer
to Chapter
6,
\Applications
and
Operation
Concepts
."
Tuned receiver
mode
that
allows
you
to
use
the
receiver
as
a
stand-alone
device.
Refer to
Chapter 6, \Applications and Operation Concepts
."
Complete reection and transmission measurements in either 50 or 75 ohm impedance
environments.
Receiver/source frequency oset mode that allows you
to set the analyzer's receiver and
source with a xed frequency oset for mixer
test applications
.
1-2 HP 8753D Description and Options
