Analyzer Display

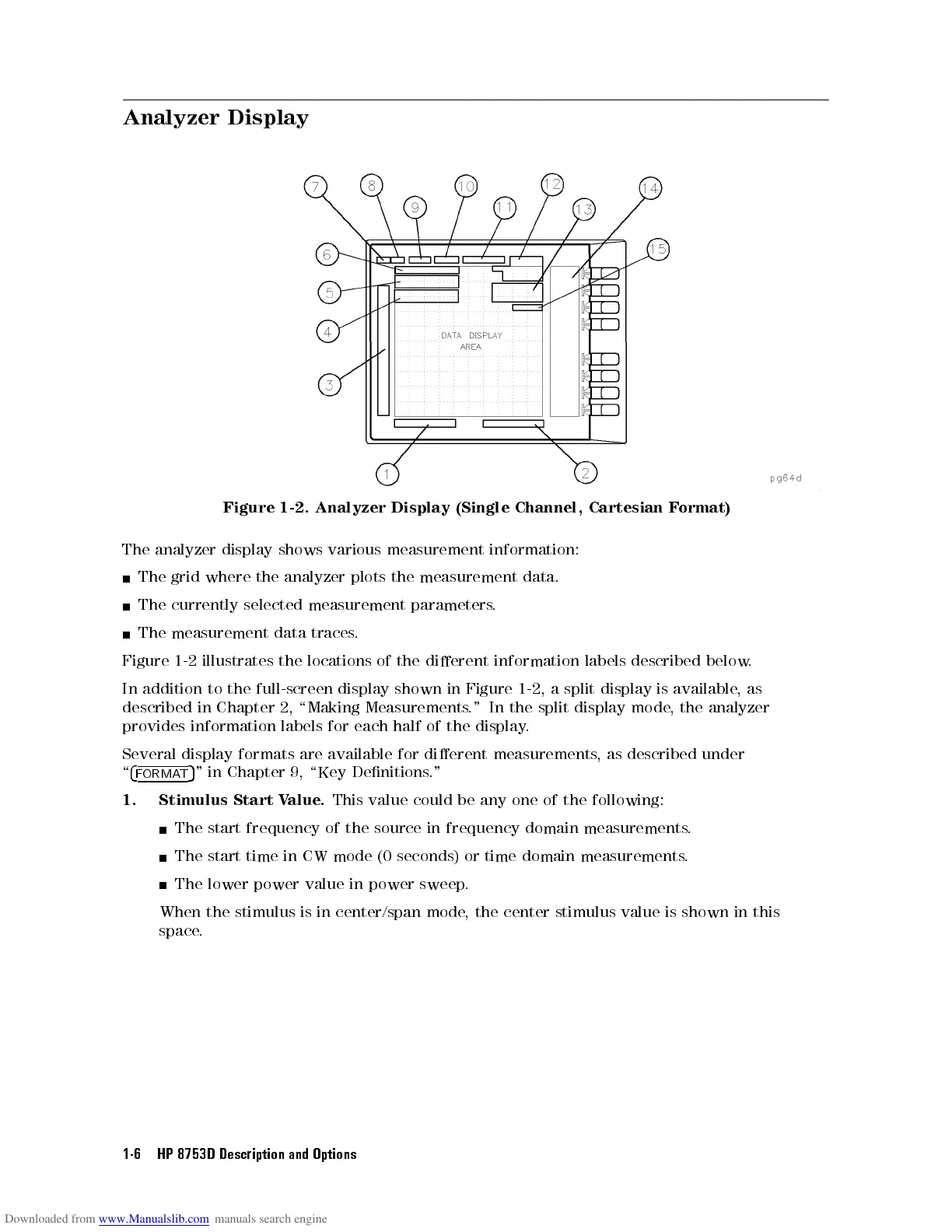

Figure
1-2.
Analyzer Display
(Single Channel,
Cartesian F
ormat)
The analyzer
display shows
various
measurement
information:
The
grid
where
the
analyzer
plots
the
measurement
data.
The
currently
selected
measurement
parameters
.
The
measurement
data
traces
.
Figure
1-2
illustrates
the
locations
of
the
dierent
information
labels
described
below
.
In
addition
to
the
full-screen
display
shown
in
Figure
1-2
,
a
split
display is
available,
as
described
in
Chapter
2,
\Making
Measurements
."
In
the
split
display
mode
,
the analyzer
provides
information
labels
for
each
half
of
the
display
.
Several
display
formats
are
available
for
dierent
measurements
,
as
described
under
\
4
F
ORMA
T
5
"
in
Chapter
9,
\Key Denitions
."
1.
Stimulus
Start
V
alue
. This
value could
be any
one of
the
following:
The
start
frequency
of the
source in
frequency domain
measurements.
The
start time in CW mode (0 seconds) or time domain measurements
.
The lower power value in power sweep
.
When the stimulus is in center/span mode
, the center stimulus value
is shown in this
space.
1-6 HP 8753D Description and Options
