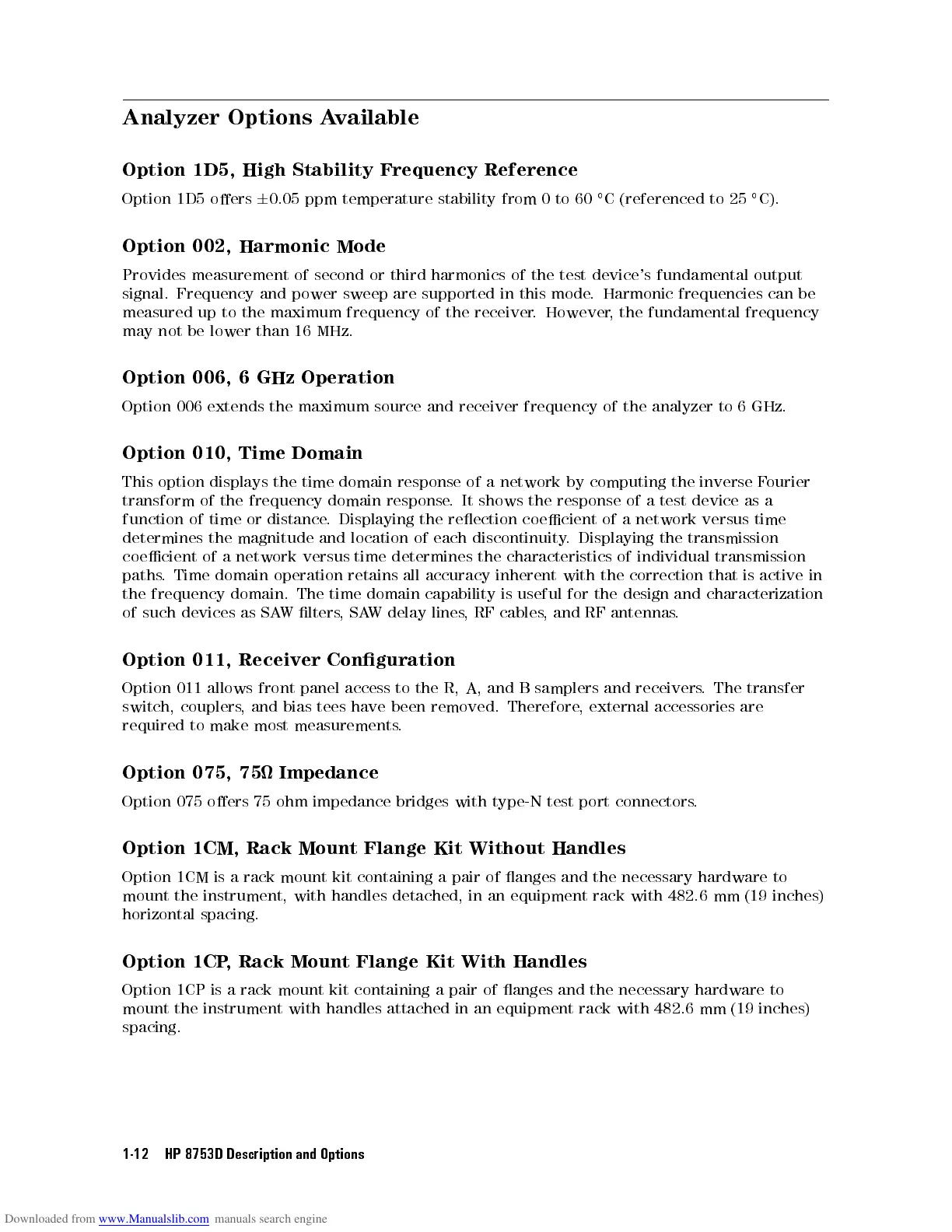

Analyzer Options
Available
Option
1D5,
High
Stability
Frequency Reference
Option
1D5
oers
6
0.05 ppm
temperature stability
from 0
to 60

C
(referenced
to
25

C).
Option
002,
Harmonic
Mode
Provides
measurement of
second or
third
harmonics
of
the
test
device's
fundamental
output
signal.
Frequency and
power sweep
are
supported
in
this
mode
.
Harmonic
frequencies
can
be
measured
up to
the maximum
frequency of
the
receiver
.
However
,
the
fundamental
frequency
may
not be
lower than
16 MHz.
Option
006,
6
GHz
Operation
Option
006
extends
the
maximum
source
and
receiver frequency
of the
analyzer to
6GHz.
Option
010,
Time
Domain
This
option
displays
the
time
domain
response
of
a network
by computing
the inverse
F
ourier
transform
of
the
frequency
domain
response
.
It
shows the
response of
atest
device as
a
function
of
time
or
distance
.
Displaying
the
reection
coecient
of a
network versus
time
determines
the
magnitude
and
location
of
each
discontinuity
.
Displaying
the transmission
coecient
of
a network
versus time
determines
the
characteristics
of
individual
transmission
paths
.
Time
domain
operation retains
all
accuracy
inherent
with
the
correction
that
is
active
in
the
frequency
domain.
The
time domain
capability
is
useful
for
the
design
and
characterization
of
such
devices
as
SA
W lters
,
SA
W
delay
lines
,
RF
cables
,
and
RF
antennas
.
Option
011,
Receiver
Conguration
Option
011
allows
front
panel
access to
the R,
A,
and
B
samplers
and
receivers
.
The
transfer
switch,
couplers
,
and
bias
tees have
been removed.
Therefore
,
external
accessories
are
required
to
make
most measurements
.
Option
075,
75
Impedance
Option
075
oers
75
ohm impedance
bridges with
type-N test
port connectors
.
Option 1CM, Rack Mount Flange Kit Without Handles
Option 1CM is a rack mount kit containing a pair of anges and the necessary hardware to
mount the instrument, with handles detached, in an equipment rack with 482.6 mm (19 inches)
horizontal spacing.
Option 1CP
, Rack Mount Flange Kit With Handles
Option 1CP is a rack mount kit containing a
pair of anges and the necessary hardware to
mount the instrument with handles attached in an equipment rack with 482.6 mm (19 inches)
spacing.
1-12 HP 8753D Description and Options
