HP 8901B - Page 228

Model 8901B
Service

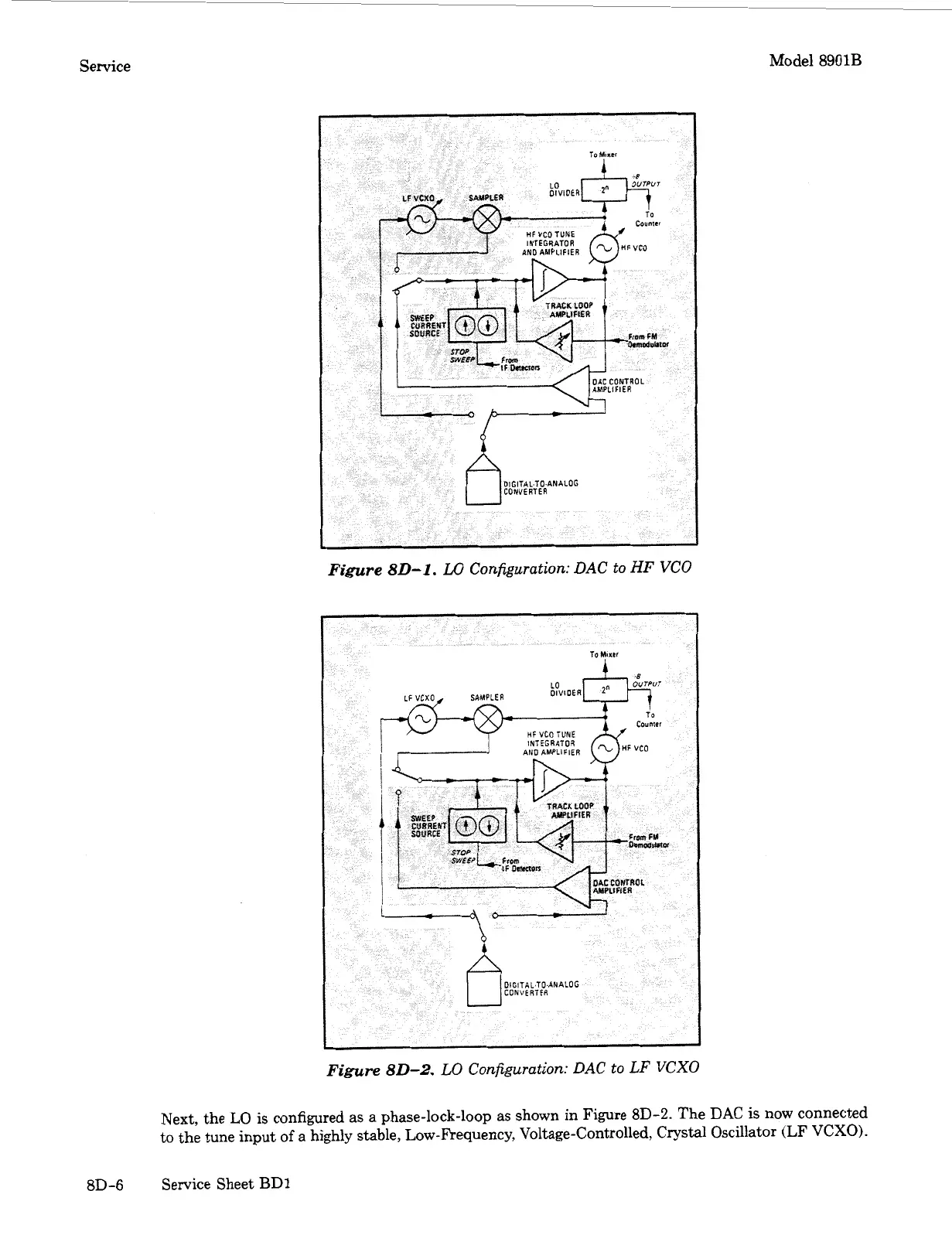

Figure 80-1. Lo Configuration: DAC to HF VCO
Figure 80-2. LO Configuration: DAC to LF VCXO
Next, the LO is configured as a phase-lock-loop as shown in Figure 8D-2. The DAC is now connected
to the tune input of a highly stable, Low-Frequency, Voltage-Controlled, Crystal Oscillator (LF VCXO).
8D-6 Service Sheet BD1
