HP 8903B - Page 210

ss2
Input Arnpllflers-
Output Circuits
P/O A2
SEE REVERSE SIDE
Service Model 89038
NOTES
1. When an optional plug-in filter assembly is in the left-most
position (Filter
l), it is designated as assembly A2A1. When
an optional plug-in filter assembly is in the right-most pos-
ition (Filter
2). it is then designated as assembly A2A2.
Schematic General Information
, /El
Fl
(08903-60124)
I I
(08903-60125)
Component Locators

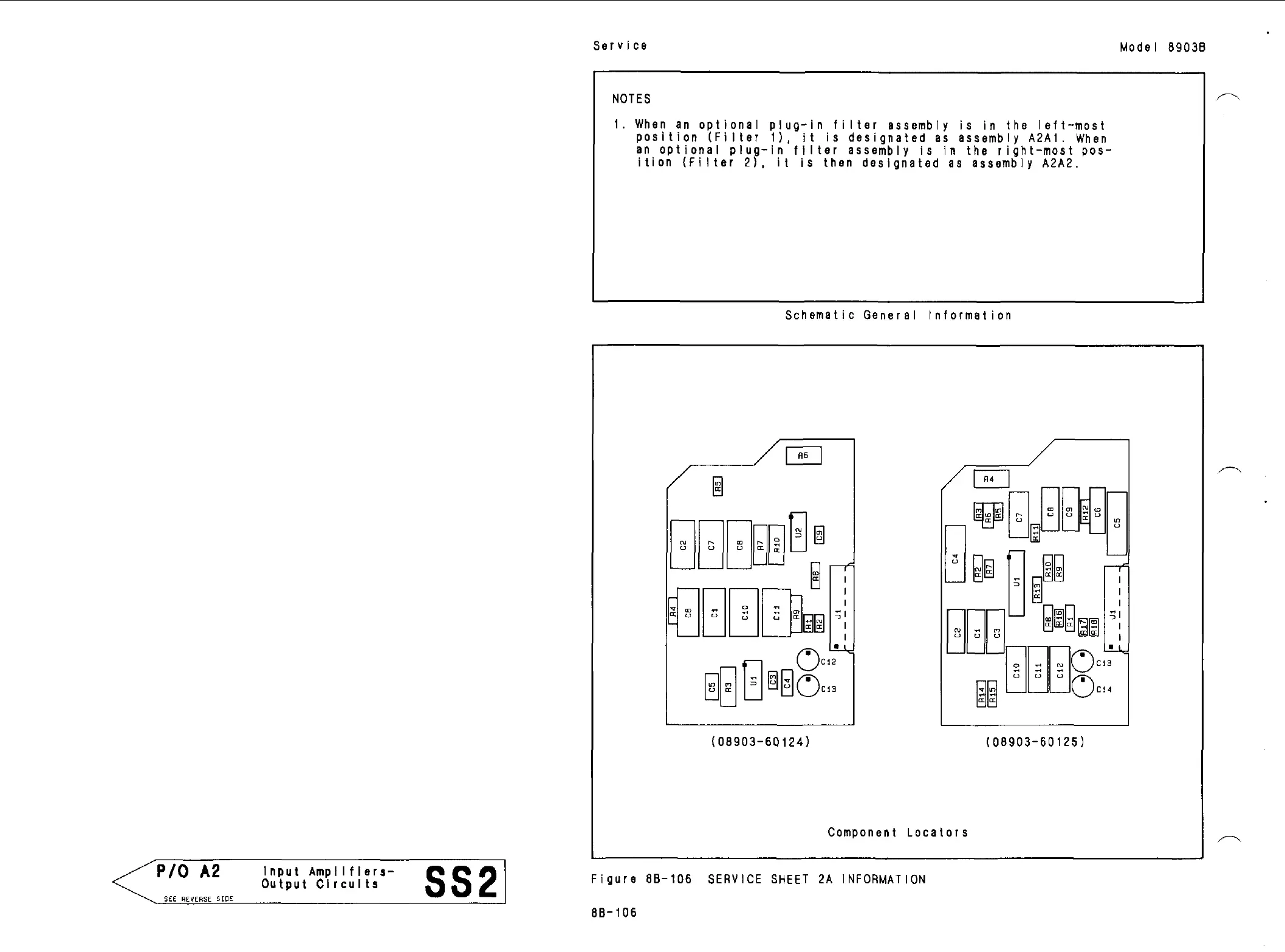

Figure 88-106 SERVICE SHEET 2A INFORMATION
88- 106
A
n
n
