HP 8903B - Page 212

Model 89038
Service
SS2AI
A2A1 AND/
OR A2A2
SEE REVERSE SlOE
NOT E S
1. When an optional plug-in filter assembly is in the left-most position
(filter 11, it is designated as assembly A2A1. When an optional plug-
in filter assemblv is in the right-most Dosition (filter 21, it is
then designated a; assembly A2Ai.
BandDass Filter Assemblies is the values of R6,Rii,R13 and A16, listed
2. The only difference between the CCiR and the CCIR/AAM Weighting
as follows
Schematic General Information
(08903-60126)
(08903-60162)
-
n
1
I
I
I
;I
I
I
(08903-60127)
Component Locators
(08903-60161)

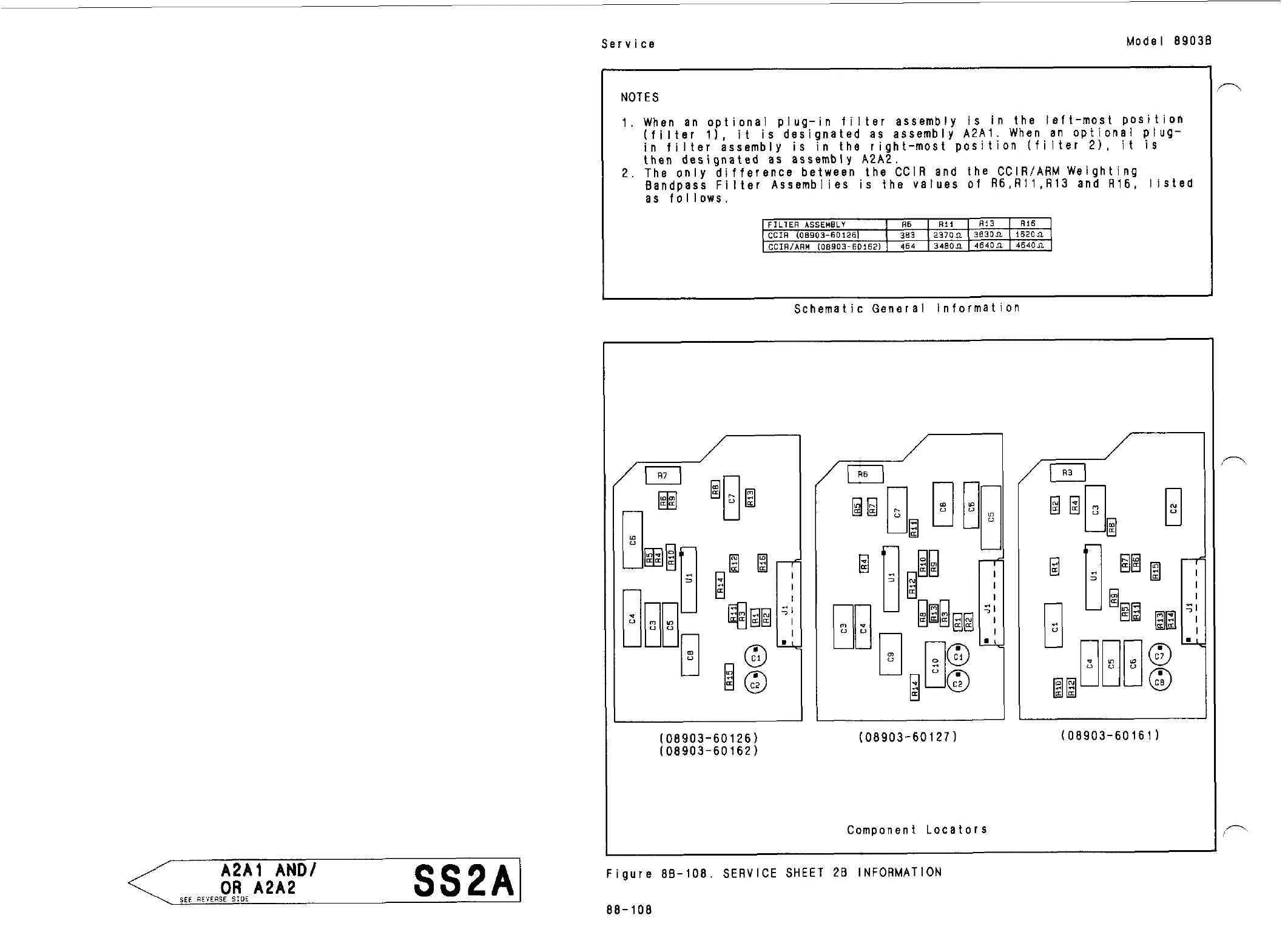

Figure 88-108. SERVICE SHEET 2B INFORMATION
88-108
