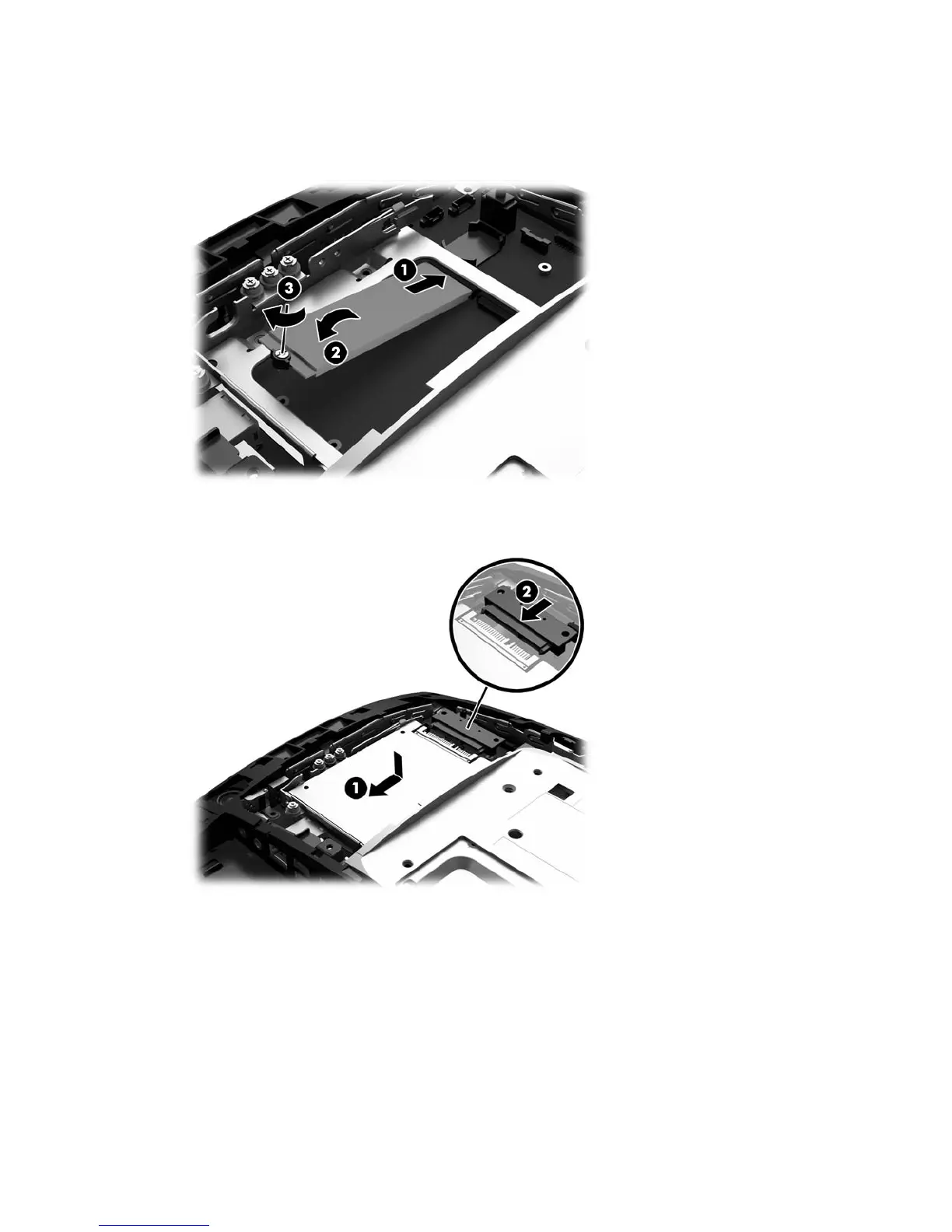

8. To install an M.2 storage device, slide the pins on the storage device into the system board connector
while holding the device at approximately a 30° angle (1). Rotate the other end of the device down (2),
and then secure the device with the screw that was either previously removed or preinstalled in the
screw hole (3).
9. Replace the 2.5” drive if it was removed. Place the drive down into the drive bay, slide the drive forward
(1), and then connect the cable to the rear of the drive (2).
32 Chapter 2 Hardware upgrades
