Flatbed scanner assembly
1. Remove the following items:
●
ADF assembly. See
ADF assembly on page 81.
●
Scanner right cover. See
Scanner right cover on page 73.
●
Scanner left cover. See
Scanner left cover on page 74.
●
Scanner front cover. See
Scanner front cover on page 75.
●
Right hinge cover. See
Right hinge cover on page 77.
●
Left hinge cover. See
Left hinge cover on page 78.
●
Right hinge guide. See
Right hinge guide on page 84.

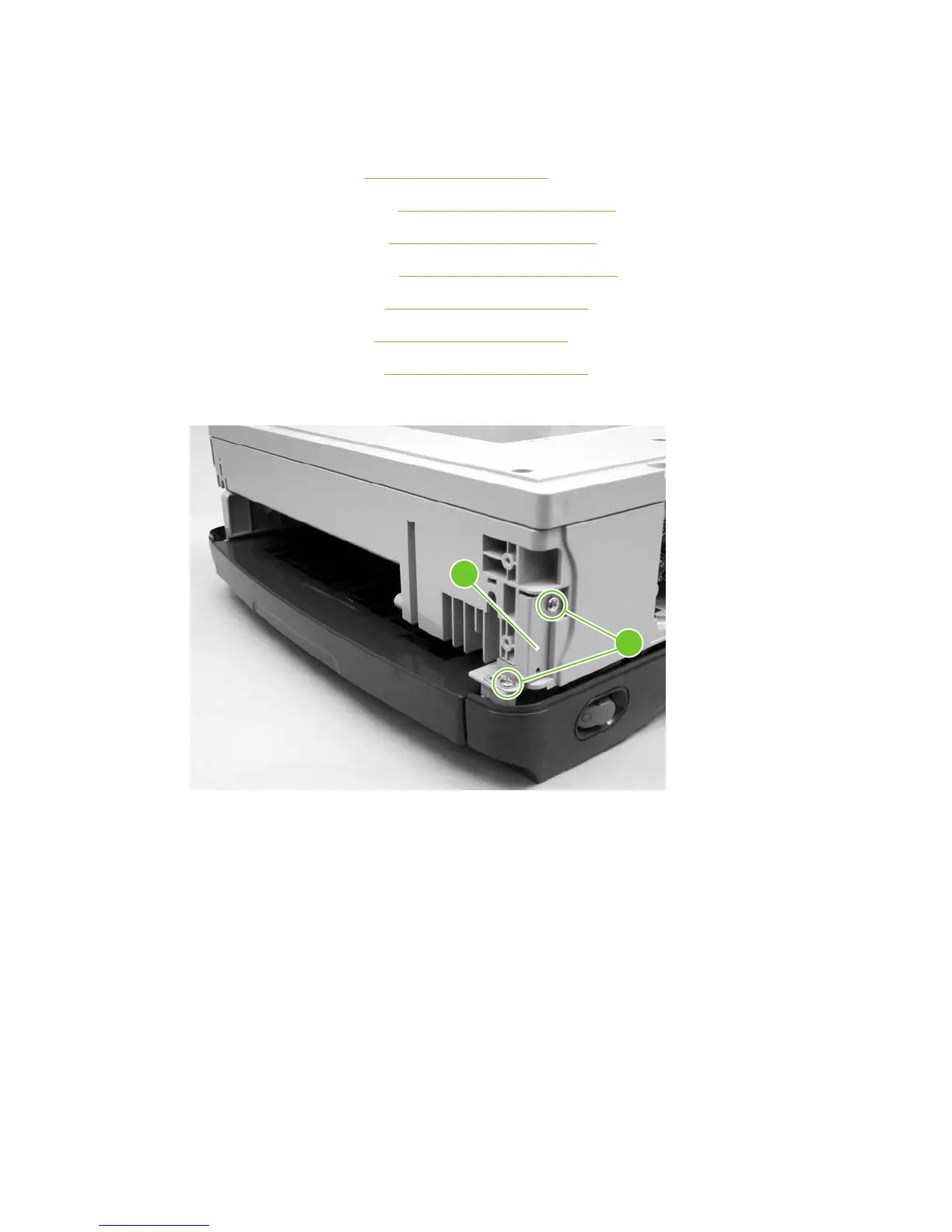

2. Remove two screws (callout 1) from the right bracket (callout 2) and remove the right bracket.
1
2
Figure 5-78 Removing the flatbed scanner assembly (1 of 4)
