5. At the back of the device, use a flat blade screwdriver to pry two tabs (callout 3) toward you at the
bottom ends of the tabs.

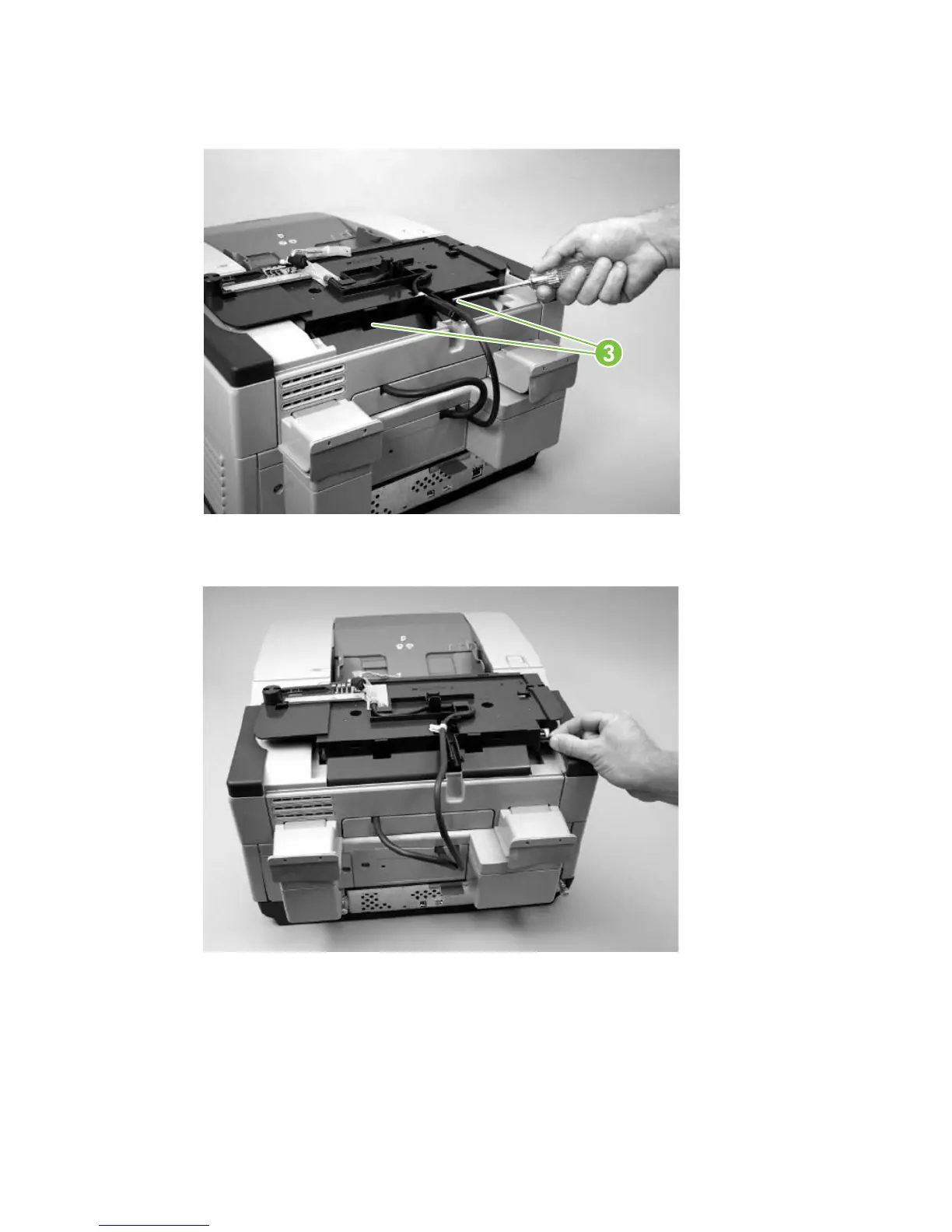

Figure 5-34 Removing the control-panel cover assembly (3 of 6)
6. Unhook the white plastic arm by gently pulling the tab toward you.
Figure 5-35 Removing the control-panel cover assembly (4 of 6)
7. Lift the control-panel cover assembly off of the device, rotate the front of the assembly toward the
back of the device, and then set the assembly down on the work surface.
ENWW External components and covers 61
