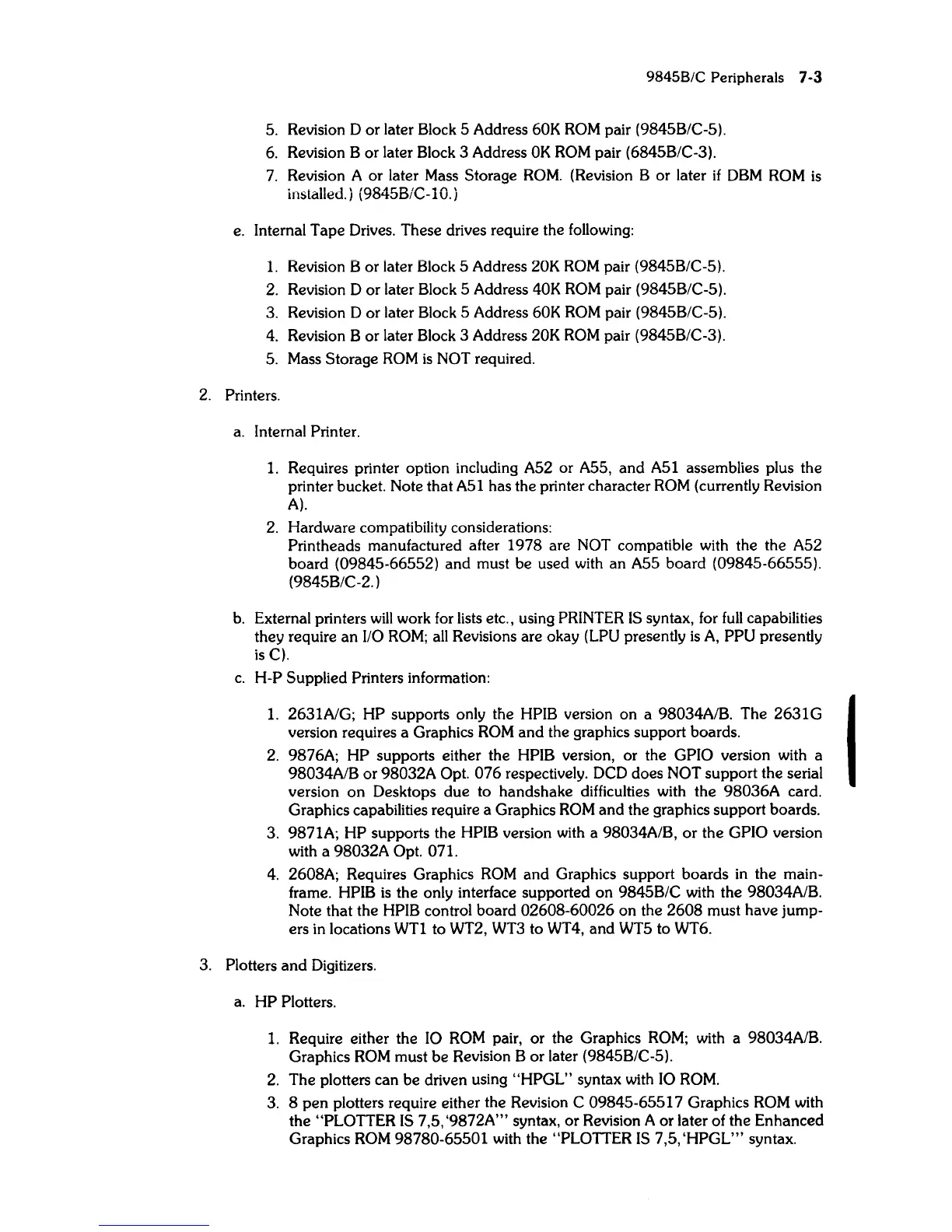

9845B/C Peripherals 7-3
5. Revision D or later Block 5 Address 60K ROM pair (9845B/C-5).
6. Revision B or later Block 3 Address OK ROM pair (6845B/C-3).
7. Revision A or later Mass Storage ROM. (Revision B or later if DBM ROM is
installed.) (9845B/C-1 0.)
e. Internal Tape Drives. These drives require the following:
1. Revision B or later Block 5 Address 20K ROM pair (9845B/C-5).
2. Revision D or later Block 5 Address 40K ROM pair (9845B/C-5).
3. Revision D or later Block 5 Address 60K ROM pair (9845B/C-5).
4. Revision B or later Block 3 Address 20K ROM pair (9845B/C-3).
5. Mass Storage ROM is NOT required.
2. Printers.
a. Internal Printer.
1. Requires printer option including A52 or A55, and A51 assemblies plus the
printer bucket. Note that
A51 has the printer character ROM (currently Revision
A).
2. Hardware compatibility considerations:
Printheads manufactured after 1978 are NOT compatible with the the A52
board (09845-66552) and must be used with an A55 board (09845-66555).
(9845B/C-2. )
b. External printers will work for lists etc., using PRINTER IS syntax, for full capabilities
they require an
110 ROM; all Revisions are okay (LPU presently is A, PPU presently
is C).
c. H-P Supplied Printers information:
1. 2631A/G; HP supports only the HPIB version on a 98034A/B. The 2631G
version requires a Graphics
ROM and the graphics support boards.
2. 9876A;
HP supports either the HPIB version, or the GPIO version with a
98034A/B or 98032A Opt. 076 respectively. DCD does NOT support the serial
version
on Desktops due to handshake difficulties with the 98036A card.
Graphics capabilities require a Graphics
ROM and the graphics support boards.
3. 9871A;
HP supports the HPIB version with a 98034A/B, or the GPIO version
with a 98032A
Opt. 071.
4. 2608A; Requires Graphics ROM and Graphics support boards in the main-
frame.
HPIB is the only interface supported on 9845B/C with the 98034A/B.
Note that the HPIB control board 02608-60026 on the 2608 must have jump-
ers in locations
WT1 to WT2, WT3 to WT4, and WT5 to WT6.
3.
Plotters and Digitizers.
a. HP Plotters.
1. Require either the 10 ROM pair, or the Graphics ROM; with a 98034A/B.
Graphics ROM must be Revision B or later (9845B/C-5).
2. The plotters can be driven using "HPGL" syntax with 10 ROM.
3. 8 pen plotters require either the Revision C 09845-65517 Graphics ROM with
the
"PLOTTER IS 7,5, '9872A'" syntax, or Revision A or later of the Enhanced
GraphiCS ROM 98780-65501 with the "PLOTTER IS 7,5, 'HPGL'" syntax.
