HP 9800 SERIES - Print Mechanism Parts

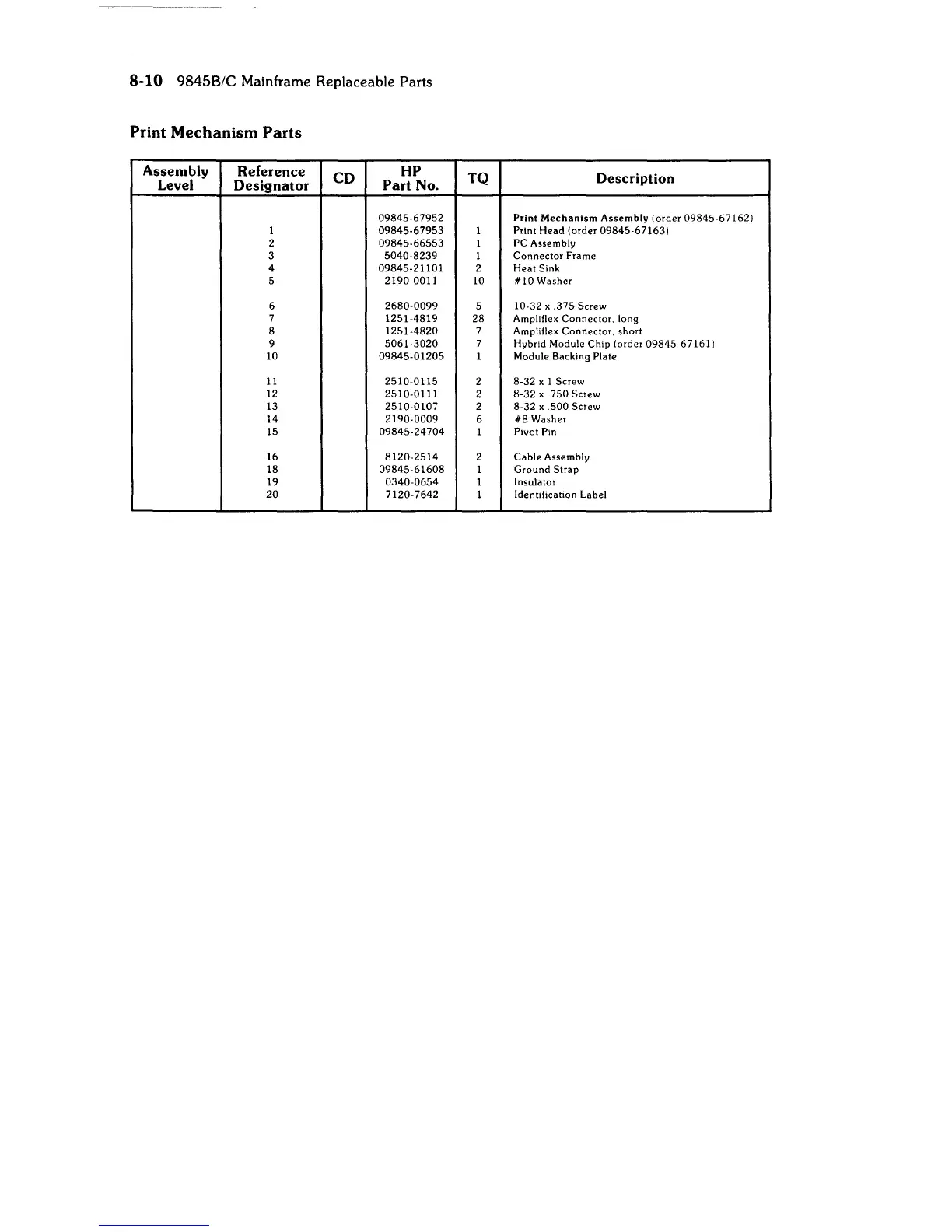

8-10 9845B/C Mainframe Replaceable Parts
Print Mechanism Parts
Assembly
Reference
CD
HP
TQ
Description
Level Designator
Part No.
09845-67952 Print Mechanism Assembly (order 09845-67162)
1 09845-67953 1
Print Head (order 09845-67163)
2
09845-66553
1
PC Assembly
3
5040-8239
1
Connector Frame
4
09845-21101
2
Heat Sink
5
2190-0011
10 #10 Washer
6
2680-0099
5
10-32 x .375 Screw
7
1251-4819
28
Ampliflex Connector, long
8
1251-4820 7 Ampliflex Connector, short
9
5061-3020 7 Hybrid Module Chip (order 09845-67161)
10 09845-01205 1 Module Backing Plate
11
2510-0115
2
8-32 x 1 Screw
12 2510-0111
2
8-32 x .750 Screw
13 2510-0107 2 8-32 x .500 Screw
14
2190-0009
6 #8 Washer
15
09845-24704
1
Pivot Pin
16 8120-2514
2
Cable Assembly
18 09845-61608 1 Ground Strap
19
0340-0654
1
Insulator
20
7120-7642
1
Identification Label
