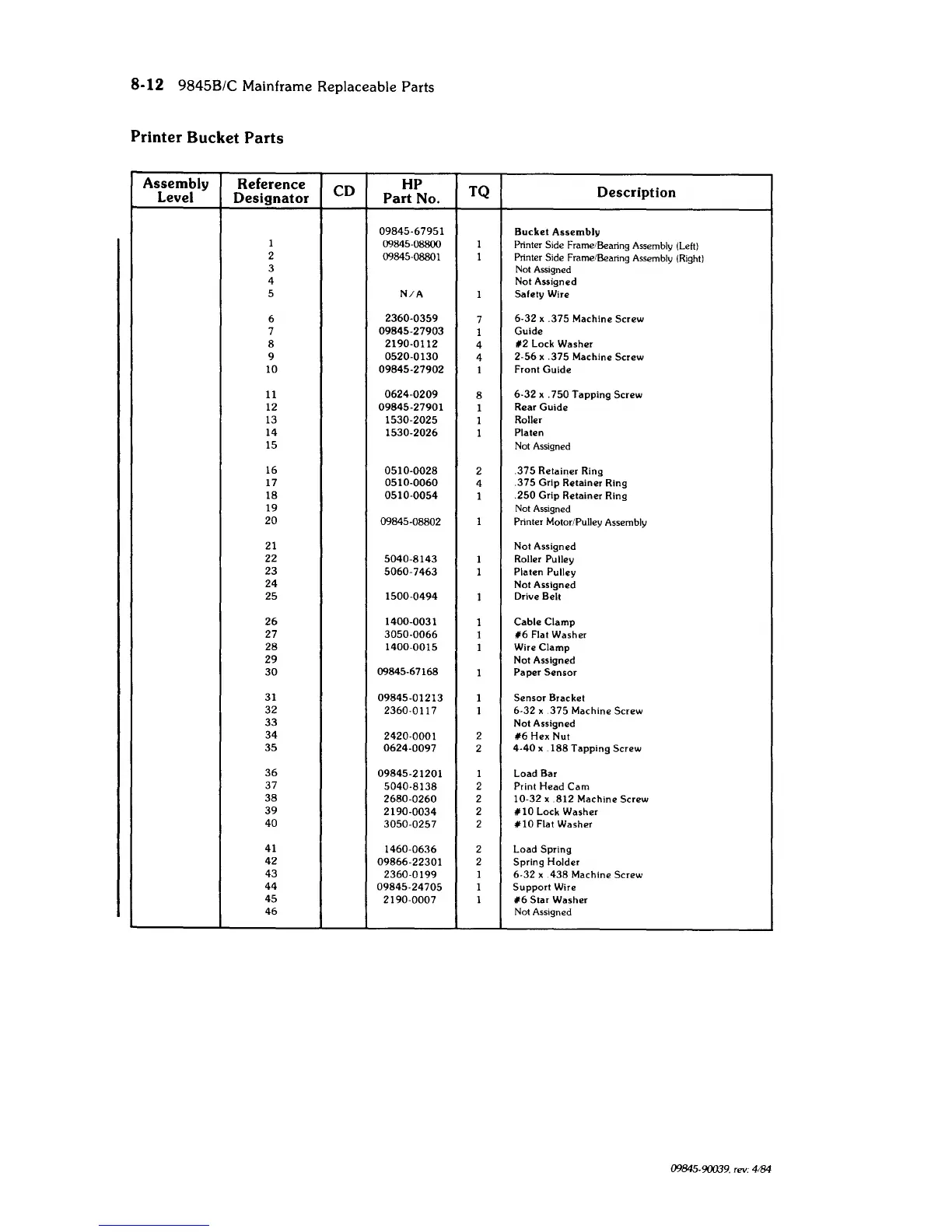

8-12 9845B/C Mainframe Replaceable Parts
Printer Bucket Parts
Assembly
Reference
CD
HP
TQ
Description
Level
Designator
Part No.
09845-67951
Bucket Assembly
1
09845-08800
1
Printer Side Frame/Bearing Assembly (Left)
2
09845-08801
1
Printer Side Frame/Bearing Assembly (Right)
3
Not Assigned
4 Not Assigned
5
N/A
1
Safety Wire
6
2360-0359
7
6-32 x .375 Machine Screw
7
09845-27903
1
Guide
8
2190-0112
4
#2 Lock Washer
9
0520-0130
4
2-56 x .375 Machine Screw
10 09845-27902
1
Front Guide
11
0624-0209
8
6-32 x .750 Tapping Screw
12
09845-27901
1
Rear GUide
13
1530-2025
1
Roller
14 1530-2026
1
Platen
15
Not Assigned
16
0510-0028
2
.375 Retainer Ring
17 0510-0060
4
.375 Grip Retainer Ring
18 0510-0054
1
.250 Grip Retainer Ring
19
Not Assigned
20
09845-08802 1
Printer Motor/Pulley Assembly
21 Not Assigned
22
5040-8143
1
Roller
Pulley
23
5060-7463
1
Platen Pulley
24
Not Assigned
25 1500-0494
1
Drive Belt
26
1400-0031
1
Cable Clamp
27 3050-0066
1
#6 Flat Washer
28 1400-0015
1
Wire
Clamp
29
Not Assigned
30
09845-67168
1
Paper Sensor
31
09845-01213
1
Sensor Bracket
32
2360-0117
1
6-32 x
.375 Machine Screw
33
Not Assigned
34
2420-0001
2
#6 Hex Nut
35
0624-0097
2
4-40 x .188 Tapping Screw
36
09845-21201 1
Load Bar
37
5040-8138 2 Print Head Cam
38
2680-0260 2 10-32 x .812 Machine Screw
39
2190-0034 2 #10 Lock Washer
40
3050-0257 2
#10 Flat Washer
41
1460-0636 2
Load
Spring
42
09866-22301 2 Spring Holder
43
2360-0199 1 6-32 x .438 Machine Screw
44
09845-24705
1
Support Wire
45
2190-0007 1 #6 Star Washer
46
Not Assigned
